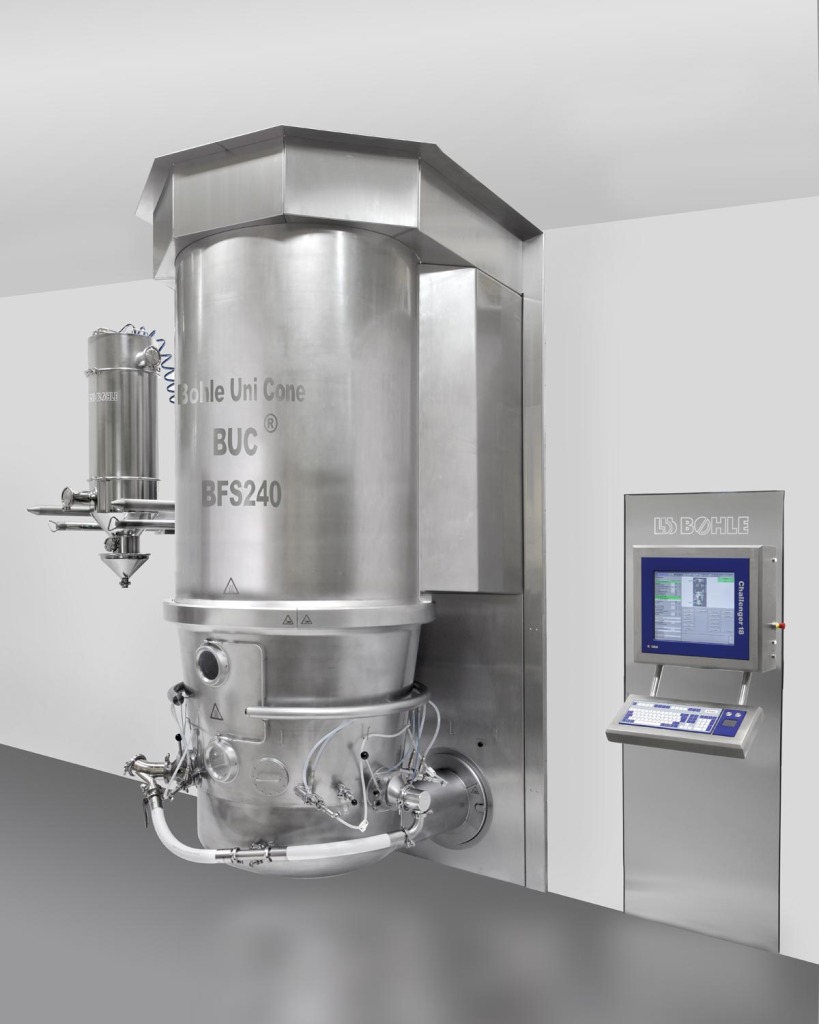

Bohle Fluid Bed System BFS - Bohle Uni Cone BUC ®

Bohle Fluid Bed System BFS - Bohle Uni Cone BUC ®
Product Description

L. B. Bohle Gmbh offers a wide range of process machines which includes bohle fluid bed system bfs - bohle uni cone buc ®. It is the productive, practical and precise alternative to conventional wurster processing. it features a broad range of extension options for bottom tangential spray granulation as well as bottom tangential spray coating. Benefits: it has fliter cleaning by patent / patented diffuser, filter cartridges with spindle drive, inline sieving and product transfer,vacuum changing and removable bottom plate. Contact us for more information.

L.B. Bohle GmbH

  • DE
  • 2015
    On CPhI since
Specifications
  • Selling Points
    Experienced Technicians; International Approvals/Standards; Quality Service; Reputation
  • Supplied from
    Germany

L.B. Bohle GmbH

  • DE
  • 2015
    On CPhI since

More Products from L.B. Bohle GmbH

  • Bohle Tablet Coater BTC - Pharmaceutical Film Coating

    Product Bohle Tablet Coater BTC - Pharmaceutical Film Coating

    L. B. Bohle Gmbh offers a wide range of process machines which includes bohle tablet coater btc. It is the most economical alternative for all common coating applications. Benefits: it provides homogeneous mixing due to patented spirals, the gentle mechanical treatment of tablet cores to avoid edging and breaking and is a friendly operator software and visualization. Contact us for more information.
  • Compactor BRC 25 and BRC 100

    Product Compactor BRC 25 and BRC 100

    L. B. Bohle Gmbh offers a wide range of process machines which includes compactor brc 25 and brc 100. Benefits: minimal material loss due to precise control of the compression force with an innovative electromechanical roller drive, constant ribbon properties assured with sensitive gap width control and easy handling and short mounting procedures. Contact us for more information.
  • VMA - Single pot granulator for pharmaceutical applications

    Product VMA - Single pot granulator for pharmaceutical applications

    L. B. Bohle Gmbh offers a wide range of process machines which includes vma - single pot granulator for pharmaceutical applications. It is a granulating and drying system specifically optimized for pharmaceutical applications. The flexible machine is state-of-the-art, and exceeds current gmp requirements with regard to design, handling and control. Benefits: it is easy through-the-wall-assembly, gravity feeding is standard, switch cabinet on board and has a small footprint. Contact us for more information.
  • Bohle Film Coater BFC -Pharmaceutical Film Coating

    Product Bohle Film Coater BFC -Pharmaceutical Film Coating

    L. B. Bohle Gmbh offers a wide range of process machines which includes bohle film coater bfc. Benefits: it provides homogeneous mixing due to patented spirals, simple and quick discharging by reversing the direction of rotation and has a high sophisticated control system. Contact us for more information.
  • Compact granulation system

    Product Compact granulation system

    L. B. Bohle Gmbh offers a wide range of process machines which includes compact granulation system. It covers process, cleaning, control and explosion protection as well as qualification. Benefits: gma granulator ® and bohle fluid bed system bfs built into the wall right next to each other, small footprint and minimized room height and multipurpose use for various processes. Contact us for more information.
  • Pharma Blender PM  - Round and Square Blending

    Product Pharma Blender PM - Round and Square Blending

    Bohle is the world’s leading manufacturer of blenders. The high efficiency of the Bohle blending systems is based on the revolutionary and patented counter-current process principle.

    The range of Bohle blending systems shows the flexibility of our engineering and manufacturing departments. Bohle blenders can be adjusted and used in any imaginable pharmaceutical production situation.

    No matter what kind of container you use, round and square, Bohle blenders can handle them with
    excellent blending results.

    Bohle provides blenders featuring a variety of different load bearing capacities:

    • standard arm connection and clamps
    • round forks on the lift arm
    • lift arm with eccentric, power and hydraulic clampsThe high efficiency of the Bohle blending systems is based on the revolutionary and patented counter-current process principle. There are numerous benefits: Effective blending volume of 20-85% of the rated volume.
    The Bohle blending systems allow homogeneous blending of dry powder batches with its patented blending
    elements mounted to the inside of the container lid. The blending procedure can be scaled up from
    4 – 12,000 liters.

    For full flexibility the blending containers can be exchanged to use different volumes if required. Due to the patented Bohle blending systems each blending container can be used for effective mixing between 20 – 85 %
    of the total container volume for densities between 0.2 – 1.2 kg/l.

    The Pharma Blender is a stationary blending device, consisting of:

    • PM machine body with load suspension device
    • electrical switch cabinet integrated in machine body.A separate installation is optional upon request
    • separate operator panel
    • safety light barrier or laser scanner as an option
    The blending operation is a fully contained and closed process. Each container has an inner lid for filling procedures.

    An extended hoist allows the blender to be also used as a milling station for bin to bin transfer.

    Please contact us for further information!

  • Bohle Film Coater BFC TriPan

    Product Bohle Film Coater BFC TriPan

    L. B. Bohle Gmbh offers a wide range of process machines which includes bohle film coater bfc tripan. It is a bohle film coater with a suspension supply via a single pump head. tripan can be operated with three pans for batch sizes of 7 to 75 liters. Benefits: it provides easy cleaning, has a suspension supply via a single punp head and is computerized intouch visualization with extensive batch management tools and a broad range of tools for preparing recipes. Contact us for more information.
  • KOCO® - The first semi-continuous coater

    Product KOCO® - The first semi-continuous coater

    L. B. Bohle Gmbh offers a wide range of process machines which includes koco® - the first semi-continuous coater. Benefits: the ease-of-use and the high coating quality of the tablets and the innovative nozzle arrangement significantly reduces spray loss as well as suspension application. Contact us for more information.
  • Bohle Granumator i- High Shear Granulator GMA

    Product Bohle Granumator i- High Shear Granulator GMA

    The Granumator ® GMA is a granultion system specifically optimized for pharmaceutical applications. The impeller is designed for high shear and compression, ensuring effective granulation. The chopper prevents excessive granule growth and distributes the granulating liquid within the product.

    The High Shear Granulator GMA is designed for through-the-wall installation. The container is connected to the system head via electrically driven lifting cylinders and can be lowered for inspection, for example. The granulation system GMA is 12 bar shock pressure resistant. The pressure resistant version features extremely strong container lifting spindles to keep the container sealed even in case of accidents. The filling inlet in the head allows gravity feeding. The switch cabinet is attached to the reverse of the machine.

    The core of the GMA Granumator ® is a cylindrical processing container with a double-arched base. The shape of the container and the impeller blades ensures effective granulation. High production precision allows for low spacing between the impeller blades and the base.

    Benefits:

    • less liquid consumption
    • good discharging conditions
    • closed system
    • granulation can be time, amount or power controlled
    • easy cleaning, no remaining of rinsing water

    Please contact us for further information!

  • Bohle Film Coater BFC 5 - Stand-alone unit

    Product Bohle Film Coater BFC 5 - Stand-alone unit

    L. B. Bohle Gmbh offers a wide range of process machines which includes bohle film coater bfc 5 - stand-alone unit. It is is a stand-alone unit. The entire air technique as well as electrical and control technique is integrated in the system. Benefits: it can be operated with one of two differtent pan sizes. Coater pans are changed manually, multipanel visualization with touch panel, operator panel is attached to the coater and provides manual cleaning. Contact us for more information.
  • Tablet Checker KA -  mechanical check of the thickness of sugar-coated or film-coated pills, capsules and tabletsquare

    Product Tablet Checker KA - mechanical check of the thickness of sugar-coated or film-coated pills, capsules and tabletsquare

    The Bohle Tablet Checker is used for a mechanical check of the thickness of sugar-coated or film-coated pills, capsules and tablets. The feeding hopper is filled with tablets to be tested. From there, a vibrator system guides the tablets to the rotating sorting discs.

    Three different groups will be separated by the sorting discs:

    • tablets that are too thick will be guided into special tray by the upper ejector plate
    • tablets that are too thin will be collected below the middle ejector plate and guided into a special tray
    • accepted tablets that are located between the upper and middle ejector plate will be guided to the production plate
    A touch panel controls the entire operation as well as the thickness-check feature. The thickness check can be adjusted to a maximum accuracy of ± 0.1 mm.

    Advantages of the Tablet Checker KA:

    • reproducable setting
    • precise calibration
    • validatable process
    • low maintenance and comfortable cleaning concept
    • versatile integration in the production setup
    • capacity: up to 1.000.000 tablets/hour

    Please contact us for further information!

  • Bohle Turbo Sieve BTS

    Product Bohle Turbo Sieve BTS

    L. B. Bohle Gmbh offers a wide range of process machines which includes bohle turbo sieve bts. Benefits: it has an innovative impeller design, mobile, height adjustable, flexible, has production capacities of 2-3 tons/hour and conical perforated screens of different mesh sizes. Contact us for more information.

L.B. Bohle GmbH resources

  • Brochure L.B. Bohle Product Profile for Your OSD Production

    Learn more about our comprehensive equipment which enables the production of tablets from powder to the coated tabet via batch and continuous processing.
  • Whitepaper QbCon® 1 combines the three continuous processes of raw material dosing, twin-screw wet granulation and drying.

    Continuous wet granulation and drying have long been a hot topic in pharmaceutical research and development (R&D) and industry. However, there is no truly continuous fluid-bed dryer on the market that is suitable for a long process time and that meets the quality requirements described in the present article. This article outlines the experimental testing on a new R&D system (QbCon® 1) for truly continuous granulation and drying. Special attention is paid to the dryer and the resulting granules.
    The results show that very narrow and reproducible residence time distributions are achieved in the dryer, which leads to uniform drying of the granules of different size classes. The process delivers consistent quality regarding moisture and particle size of the granules over several hours. When changing the conveying speed of the granules in the dryer while maintaining all other parameters, it was possible to describe the limits for a fixed process/formulation combination, ...
  • Whitepaper L.B. Bohle Coating Technology

    L.B. Bohle has been the technological leader for all film coating applications for more than 15 years. Bohle Coaters guarantee excellent product processing with the highest profitability. We assert our leading role through continuous developments and patented advantages. Pharmaceutical Tablet Coating Processes Can be Divided into Three Basic Operations: MixingSprayingDrying Each step is carefully engineered and optimized to coordinate with the others. Bohle Coaters offer the best combination of the processing operations on the market.
  • Whitepaper Bohle Fluid Bed System

    Fluid bed equipment has been well known and established in the pharmaceutical industry for many years. Using a tangential fluid bed system represents state of the art technology in pharmaceutical manufacturing for particle coating, granulation and drying. With this in mind L.B. Bohle developed the Bohle Fluid Bed Systems with tangentially mounted spray nozzles and the Bohle Uni Cone BUC®.
  • Whitepaper Current Trends in Sieving and Grinding Technology

    The pharmaceutical production of tablets is practically unthinkable without the use of a sieve or a mill. These are needed whenever active and inactive materials are handled and tablets or other products are being manufactured. Sieving machines and mills are used for milling solids to reduce their size. This fulfils two purposes: Firstly, it enlarges the particle surface which increases the speed of dissolution. Secondly, it evens out differences between particle sizes to ensure that mixing can be homogeneous.  Due to their versatility, milling and sieving machines play a crucial role in pharmaceutical production. They can be integrated into complex production lines, for example for filling/emptying or transfer operations at process machines, or for filling and decanting containers.
  • Whitepaper Containment applications for Dry Granulation and Film Coating

    In the pharmaceutical industry, one term is becoming increasingly important: containment. It describes the process of containing a substance within a defined space, a method that is suitable for protecting operators and the environment in case of high toxicity and product reactivity. At the same time, containment prevents dust, gases or vapours from being released into the environment and contaminating the product.
