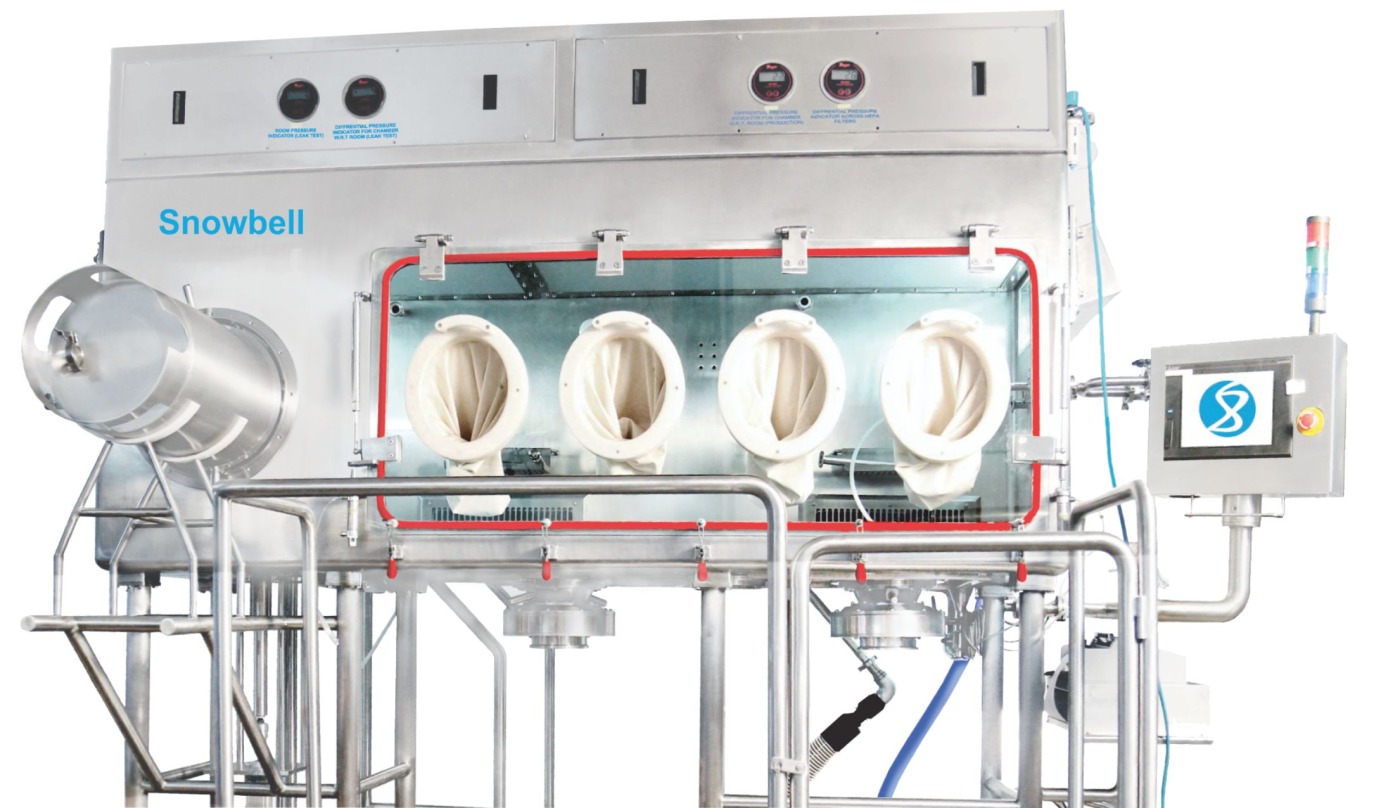

ISOLATOR FOR LIQUID FILTERATION

·         Positive Pressure Isolator for aseptic processing

·         Unidirectional Airflow, Velocity 0.45 m/s in operation

·    Rigid wall construction in SS316L

·    Internal surface finish is 0.4 µm & external surface finish is 0.8 µm

·    La – Calhene (Getinge) RTP provided for material transfer & waste disposal

·    La – Calhene rotate alpha – beta port for vessel integration with Isolator

·    Automatic Leak Testing

·    AHU for supply & exhaust air with recirculation system

·    SS304 supply & return ducting between AHU & the Isolator

·    Air inlet through panel type HEPA filters

·    Air exha...
