Benefits and applications of Wave Springs in Autoinjectors and Pen Injectors

Wave springs are changing how autoinjectors and pen injectors are designed. They make it possible to build smaller, more reliable devices that deliver medicine consistently. Because wave springs provide the needed force in less space, they help improve both performance and durability. This makes them a practical solution as injectable medical devices continue to evolve.

Today’s autoinjectors and pen injectors need to be smaller, easier to use, and highly accurate, all without losing reliability. Springs are a key part of these devices, and wave springs are becoming a popular choice because they meet tough design and performance requirements.

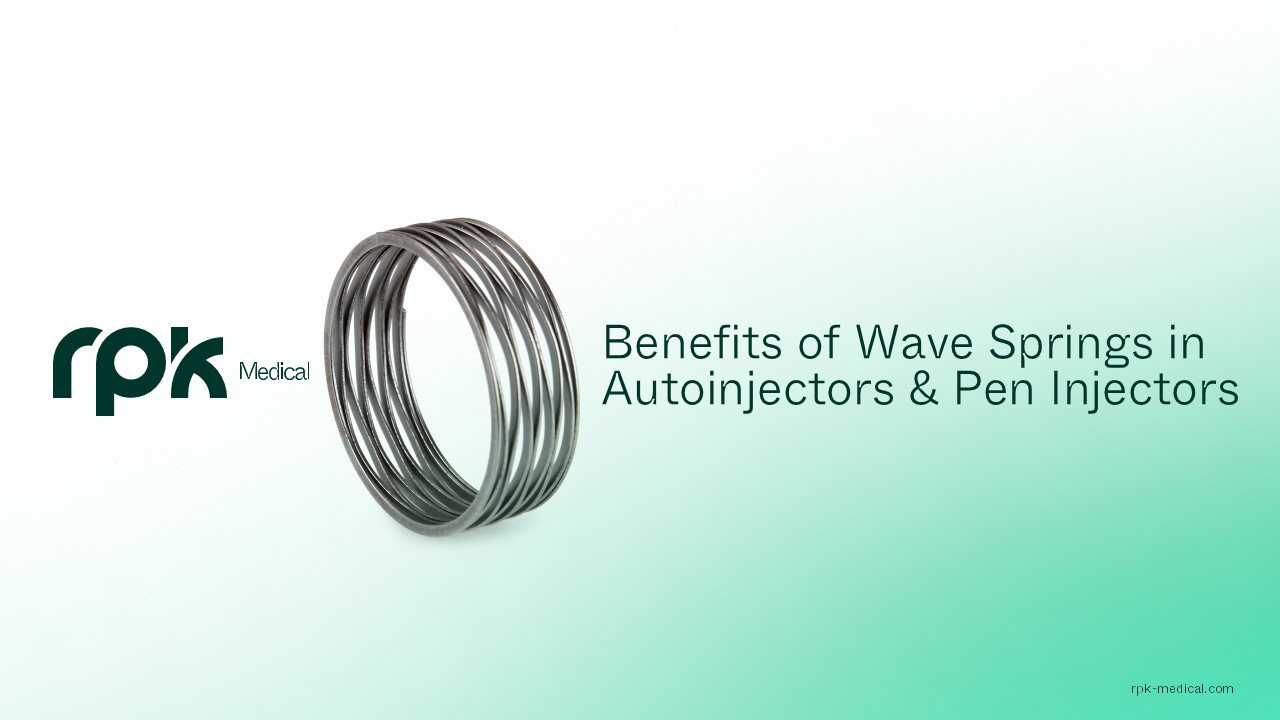

A wave spring is a type of compression spring fabricated from a flat metal wire formed into a wavy, ribbon-like coil. Unlike traditional helical coil springs, wave springs can deliver the same force and deflection while occupying up to 50% less axial space. This space efficiency allows engineers to design slimmer, lighter autoinjectors and pen injectors, which is crucial in devices where every millimeter of space counts.


One of the key benefits of wave springs is their precise and consistent force output. Because they compress purely along the axis with minimal lateral forces or torsion, they maintain a highly linear and predictable force profile throughout their working range. This predictable behavior is essential for controlled injection speed and accurate dosing, particularly when administering high-viscosity biologics or sensitive therapeutic agents.


Wave springs also offer enhanced durability and fatigue resistance. Made from high-grade spring steels or specialized alloys, they retain their mechanical properties over many cycles and long-term storage, ensuring devices perform reliably throughout their lifecycle. This durability supports both disposable and reusable injector architectures, with reusable pen injectors benefiting from the wave spring’s ability to reset and store energy for multiple doses.


Wave springs also help make up for small differences in parts during manufacturing. Their steady compression lets them adjust to slight size changes, so devices work more consistently from one to the next.


In practical applications, wave springs play several critical roles:

• They provide the thrust needed to insert the needle and drive drug delivery even with viscous formulations.
• They help regulate flow control, ensuring consistent delivery rates and improved patient comfort.
• They support compact and ergonomic device designs that align with patient needs and market expectations.

As medical devices become more efficient and focused on patient needs, wave springs are an important part of this progress. Whether in emergency epinephrine injectors or everyday insulin pens, wave springs help deliver medicine reliably in smaller devices, improving both how the device works and the experience for users.
