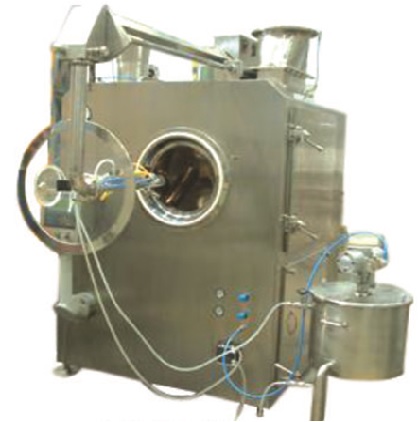

AUTOCOATER

AUTOCOATER
Product Description

•All the product contact parts are made from Stainless Steel corresponding to 316 •Pan speed 1 to 15 RPM, The pan speed is variable and can be changed from the control panel.  •Perforated pan with more than 55% opening for better quality  finish The pan is cylindrical in shape and is made out of stainless steel sheet.  The middle portion of the pan is perforated, having 2.5 mm. diameter  holes, to enable hot air to enter the pan while in rotation. 4 nos. removable Rabbit-ear baffles provided

Pan speed control via variable frequency AC Drive

Tablet discharging facility will be through the special diverter assembly

On the front Stainless steel cover with a glass door for process visualization.

Front Entry stainless steel arm, with facility to adjust the angle of spray guns is provided.

A stainless steel 304 sink at bottom of pan for collection of powder with necessary stainless steel piping with tri-clover joints for ease of cleaning during the change over.

The coating pan alongwith the drive system, hot air plenum, exhaust plenum, pan washing sink, washing pipe line etc. are housed in a stainless steel cabinet

Fluorescent Light is provided for illumination in side the pan

LHS (Leftt Hand Side) and RHS wall of the machine will be double insulated to prevent the heat lose

CIP System Including High Pressure Pump And Jet Nozzles

Plc based control panel with coloured touch screen HMI and 80 column printer
