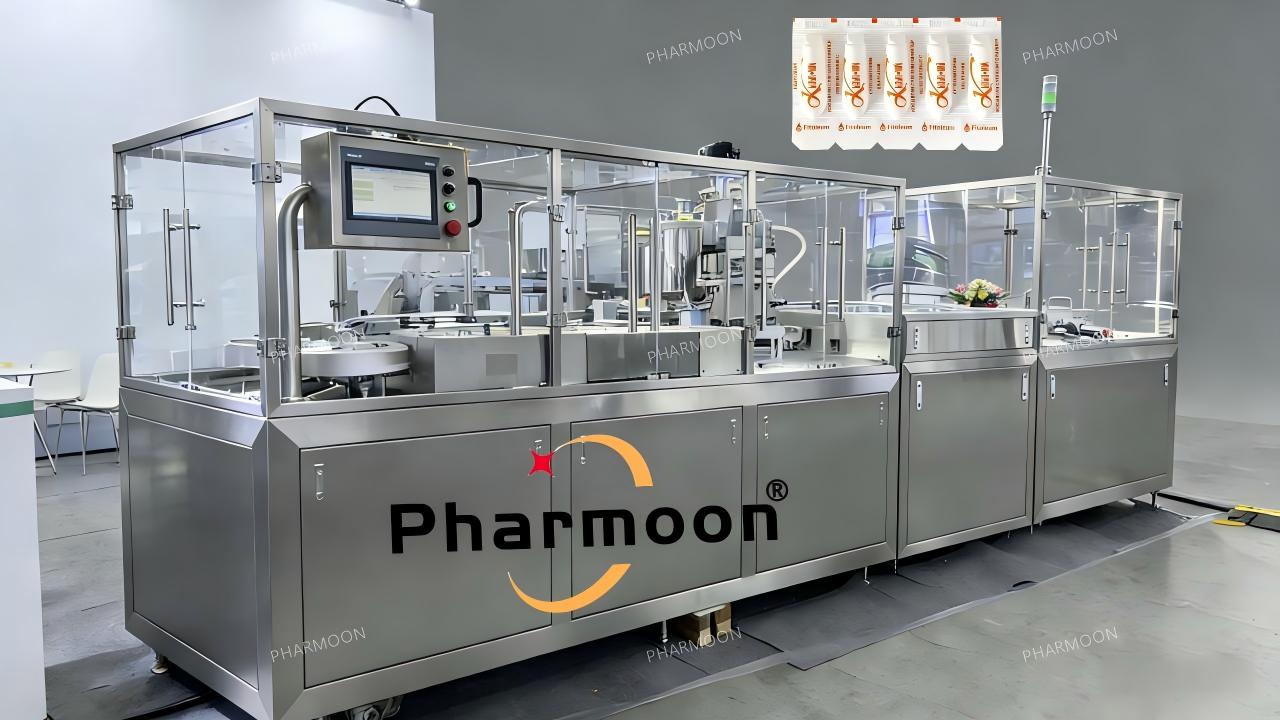

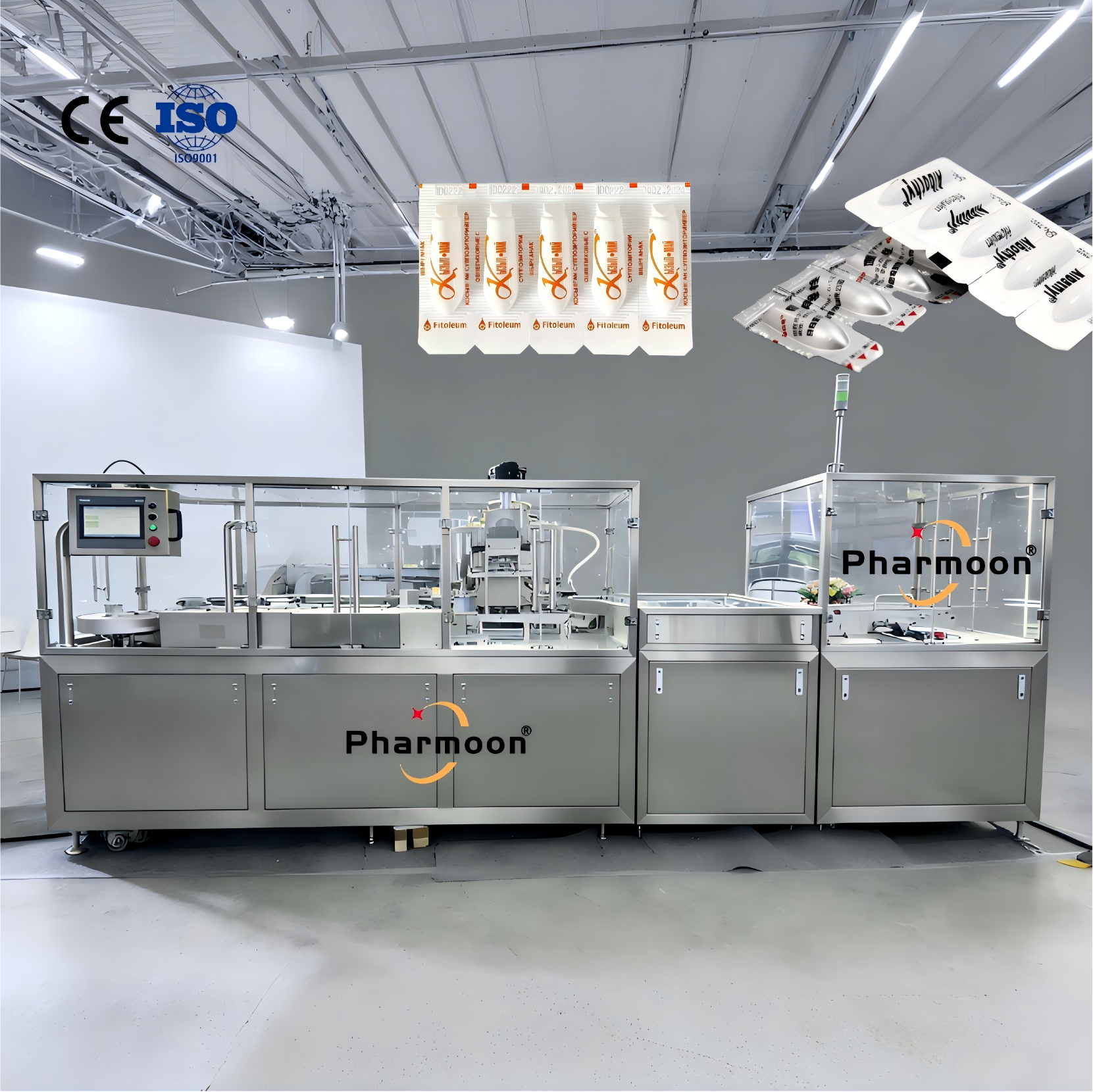

Automatic Suppository Production Line

Product Description

Suppository equipment is specialized industrial equipment used in pharmaceutical factories or hospital pharmacies for the production of suppositories. This equipment can transform rolls of packaging materials into the required suppository shell shapes (torpedo-shaped, duckbill-shaped, bullet-shaped, etc.) through molds. The well-mixed medicinal liquid is automatically filled into the shells under program control. After cooling, the medicinal liquid solidifies. Then, the suppositories are sealed, shaped, marked with batch numbers, and cut to complete the production process.

SHANGHAI PHARMOON CO., LTD

Country/Region:

China
On CPHI since:

2026
Certificates:

2
Employees:

1 - 24

Company types

Machinery and Equipment Supplier/Manufacturer

Compare Add to favorites Added to favorites

Specifications

Details

Commodity: Automatic suppository production line

Model: PMJ-7

Output: 10000-12,000pcs/h

Single dosage: 0.5-5.0ml (0.5-5g)

Dosage allowed: ＜±2%

Packaging Film : PVC\PE (0.15-0.18mm)

Stirring tank capacity: 50L

Air pressure: 0.6-0.65Mpa

Air consumption/min: 1.5m³/min

Water consumption/h: 50kg (recycling)

Working voltage: 3 Phase 380V

Total power: 7.5KW

Adopt forming shapes: Bullet, torpedo and other shapes

Rated Current: 28.2A

Adapt Material: Synthetic fatty acid glycerol, glycerin gelatin, polyethylene glycol etc

Each distance of suppository: 17.4mm

Equipment noise: ≤80dB

Material of the part in contact with materials: Stainless steel

Overall dimensions Length: 4800×2200×1700（mm）

Overall Weight: 1900kg
