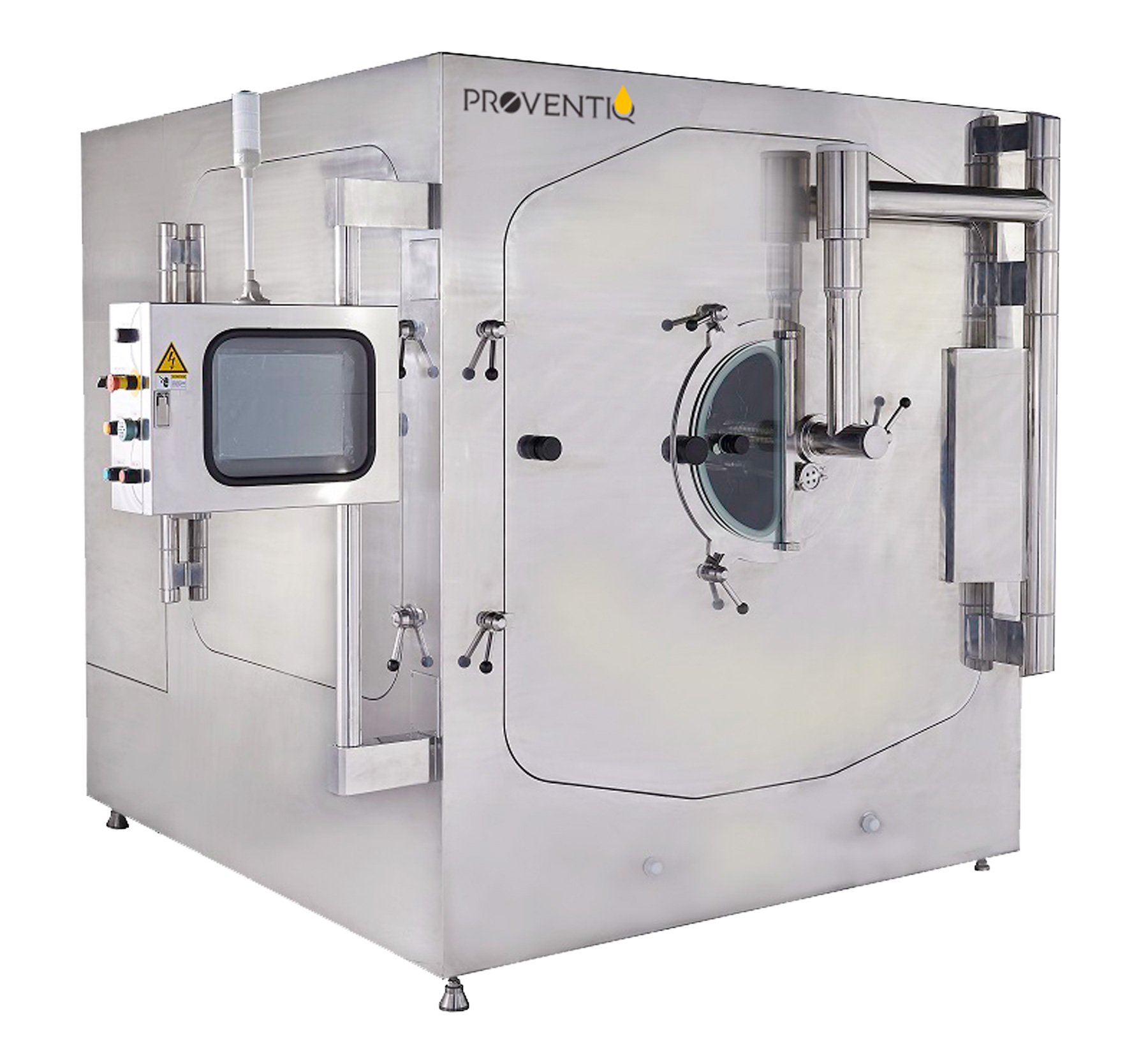

AUTOMATIC TABLET COATING - PROCOTA:

Salient Features: -

⇛    Design is cGMP – Current Good Manufacturing Practices compliance.

⇛    All contact parts AISI 316 & non-contact parts AISI 304.

⇛    Fully automatic film Coating by PLC Controls with HMI Touch screen.

⇛    The machine structure made from S.S.304 quality fitted with Closed Drive, Perforated Pan, Washing sink, Inlet air plenum, Exhaust air plenum with Air tight door.

⇛    The perforated pan having specially designed baffles on side slope face and anti-slide baffles on diagonal face for mixing.

⇛    Automatic Spraying systems provided with Atomized Spray Gun, Adjustable spray gun arms, High precise flow peristaltic pump, solution holding tank with pneumatic stirrer.

⇛    Inlet Air Handler is double scan inside SS 304 and outside powder coated Inlet AHU (air handler unit) with Pre filter-10 Micron, Blower assembly, Heat Exchanger, Final filter-5 Micron and HEPA filter- 0.3 micron.

⇛    Tablet discharging through special diverter assembly.

⇛    Uniform and smooth coating without damaging the tablets.

⇛    Exhaust air system provided with blower with Wet Scrubber.

⇛    Inlet air and Exhaust Air flow controls by AC Frequency drive of blower.

⇛    All doors, safety guards and covers are provided with a suitable food grade seal.

⇛    Inbuilt CIP System for fast and easy cleaning.
