Cpro

  • Cpro 1
  • Cpro 2
  • Cpro 3
Product Description

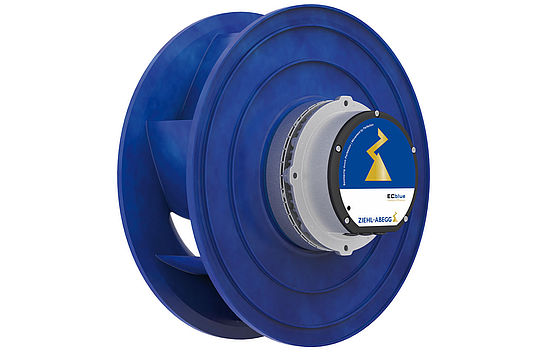

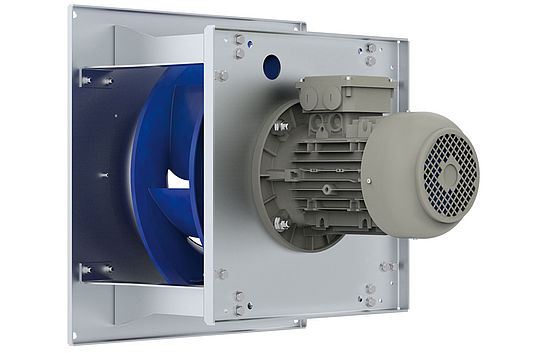

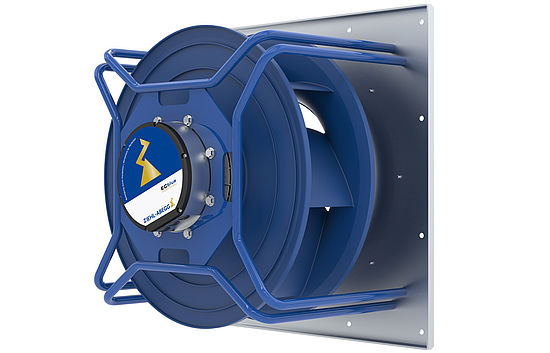

Free-running Cpro impeller made from the ZAmid high-performance composite material with 7 backward-curved, fluted blades in dimensions of 250 to 630 mm. Volume flow rates of up to 30,000 m³/h free blowing, static pressure increase of up to 2,500 Pa possible. Version with hub and inlet nozzle with measurement device for volume flow measurement. GR modules for compact installation in customer applications/devices for horizontal and vertical air feed. ER built-in fans e.g. for vibration-damped use in central air-conditioning units with horizontal air feed.

Read more Show less

ZIEHL-ABEGG India Pvt. Ltd.

  • Country/Region:
    India
  • On CPHI since:
    2023
  • Certificates:
    2
  • Employees:
    50 - 99
Company types
Machinery and Equipment Supplier/Manufacturer
Primary activities
Other
View company profile
Categories
more categories Show less
Specifications
  • Details
    Properties & special features:

    Impeller with rotating, non-fluted diffusor for extremely high efficiency levels and favorable acoustic characteristics. Reduced tonal noise as a result of special 3D blade geometry. The high-quality plastic material allows for a wide application temperature range of -35 to +80°C and also offers a high level of chemical resistance.

    Version according to DIN EN 45545-2 possible through fire prevention certified ZAmid.

    Motor concepts:

    External rotor motors:

    • ECblue technology: with integrated controller tailored to the fan
    • AC technology


    Internal rotor motors:

    • PMblue EC technology: permanent magnet excited motor with built-in controller
    • AC technology
  • Selling Points
    Energy & Endurance; International Approvals/Standards; Product Features; Product Performance
More specifications Fewer specifications
