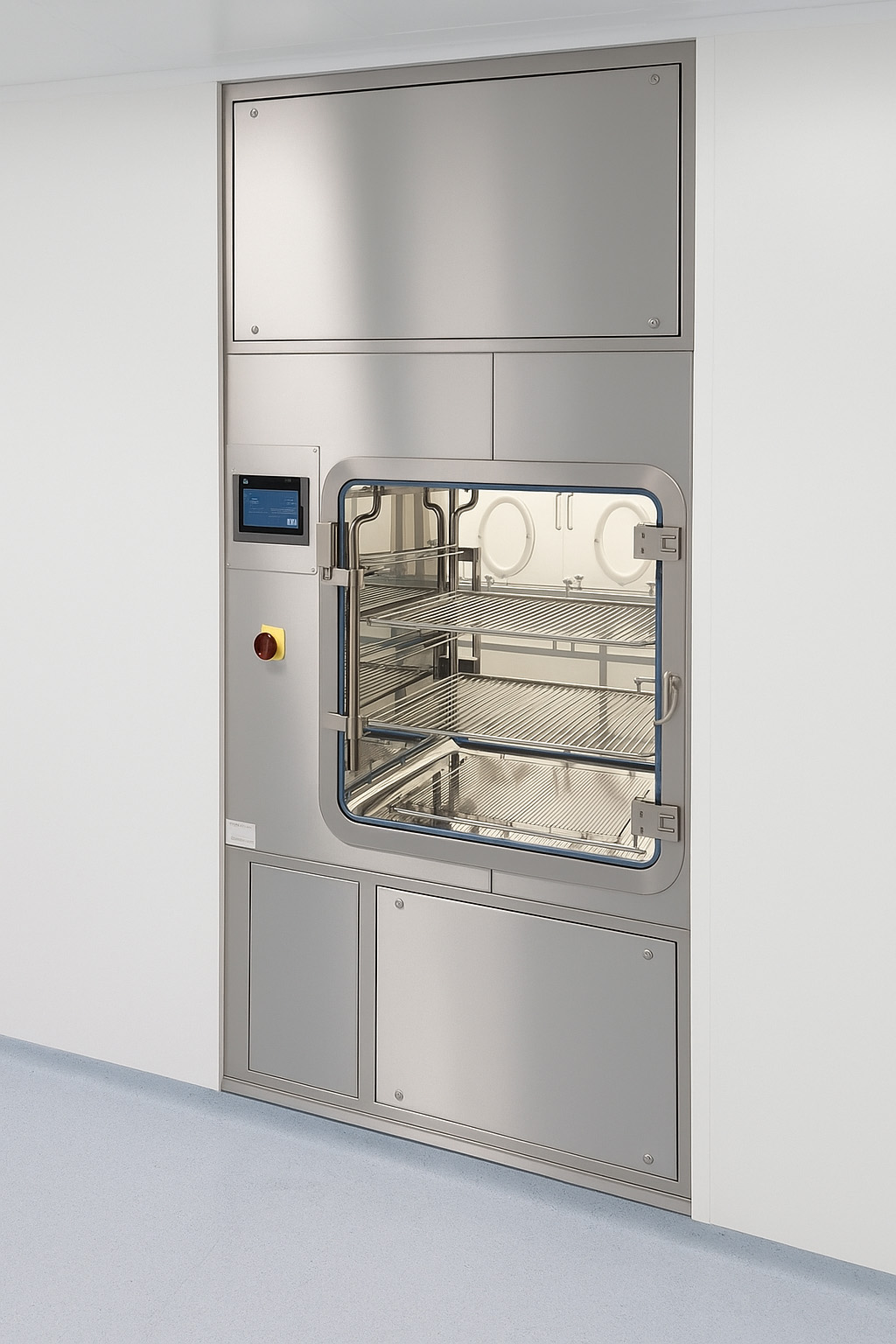

Decontamination Lock

Decontamination Lock
Product Description

TIGHTNESS CLASS 3

According to ISO 10648-2.


CLEANLINESS CLASS „B“

According to EU GMP standard.


HYDROGEN PEROXIDE

Antibacterial agent approved by the FDA at 35% concentration, which quickly oxidizes the cell walls of microorganisms, thereby destroying them.


INTUITIVE CONTROL

Using a SIEMENS touch screen with program selection.


CONSTRUCTION MATERIAL

Chamber - 3 mm thick AISI 316L stainless steel. AISI 304 stainless steel, SB ground surface.


DATA COMMUNICATION VIA PROFINET

Modbus TCP/IP, Modbus RTU.


CAN BE SUPPLIED WITH AN EXTERNAL OR INTEGRATED H2O2 VAPOR GENERATOR

Read more Show less

TIMOTEC Reinraumtechnik a.s.

  • Country/Region:
    Czech Republic
  • On CPHI since:
    2026
  • Certificates:
    4
  • Employees:
    50 - 99
Company types
Manufacturer/Innovator
Primary activities
Cleanroom Technology
Custom Manufacturing/Custom Synthesis
Technology
View company profile
Categories
more categories Show less
Specifications
  • Details
    The decontamination pass-through cabinet is used as a material pass-through for transferring materials between rooms with different cleanliness classes or different BSLs. A decontamination cycle using hydrogen peroxide vapor is used to decontaminate tools and materials.

    Hydrogen peroxide vapors effectively destroy bacteria, viruses, spores, and mold without damaging sterilized materials. After the process is complete, hydrogen peroxide decomposes into water and oxygen, making it an environmentally friendly solution.
    SWING DOORS

    Made of 25 mm thick PMMA. The doors are sealed with a pneumatic seal made of silicone.


    ROTRONIC SENSOR

    Temperature and humidity measurement.


    HMI PANEL SIEMENS

    Touch screen, Simatic control system.


    HYDROGEN PEROXIDE DISTRIBUTION

    Distribution piping for optimal gas distribution inside the chamber.


    SHELVES

    Mobile wire shelves allow for sterilization of the product from all sides.

  • Model
    VHP
More specifications Fewer specifications
