Product Description

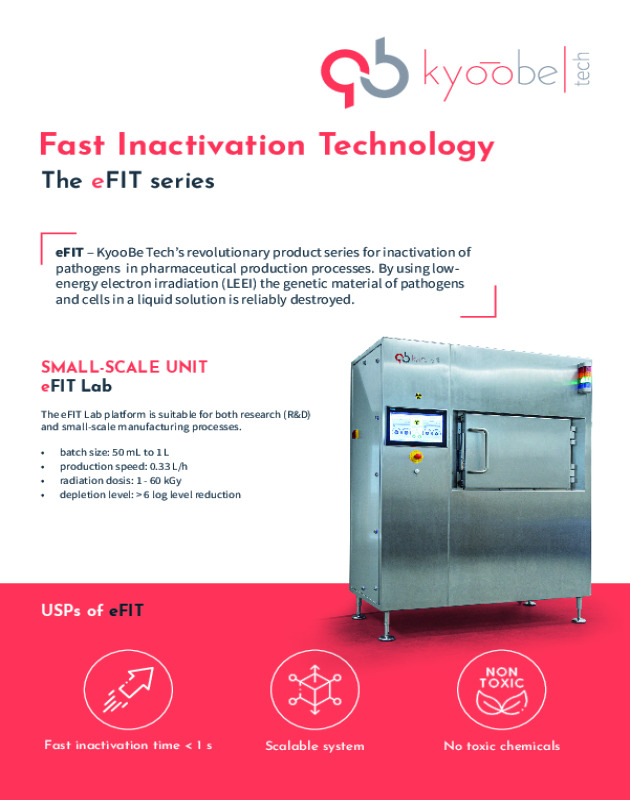

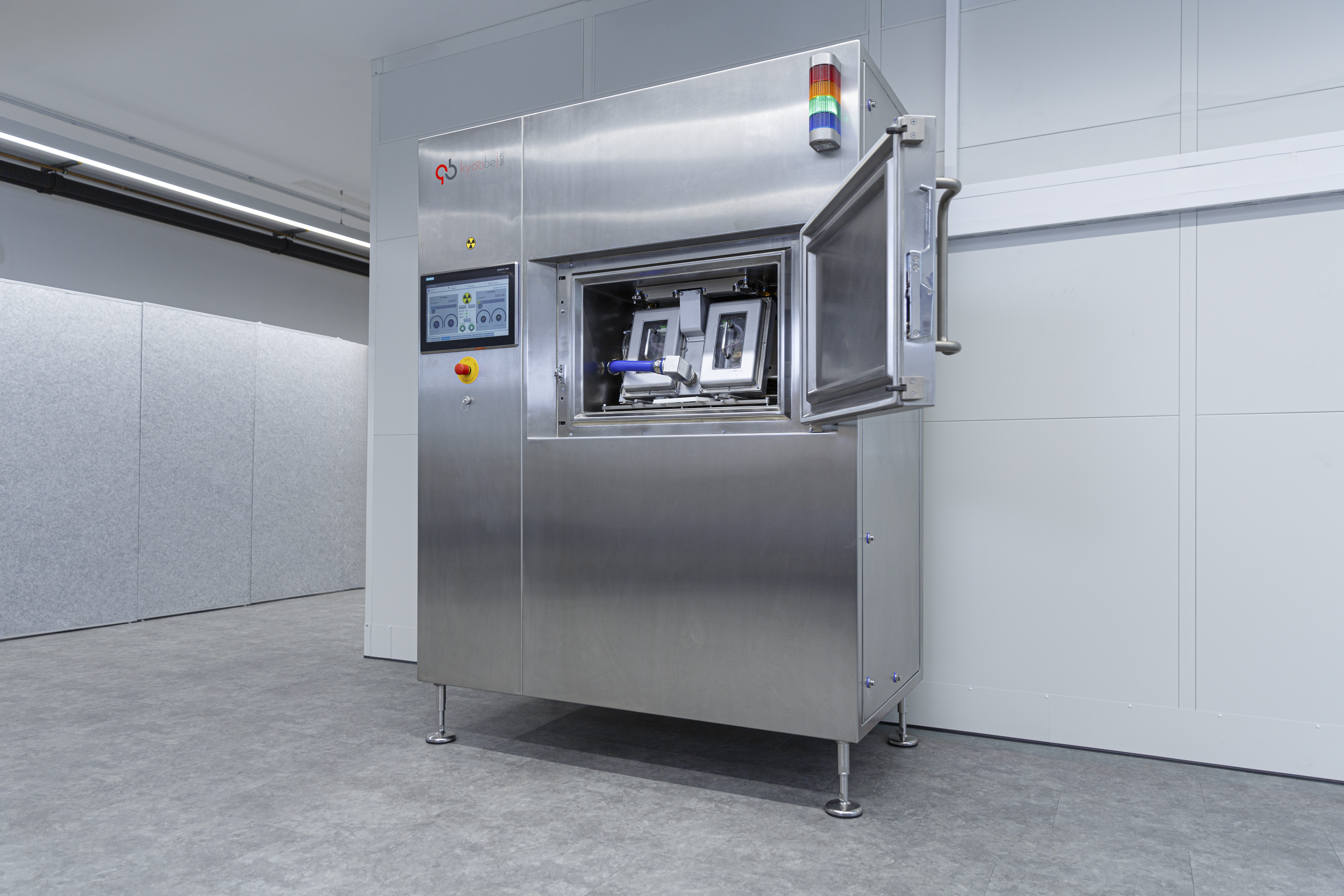

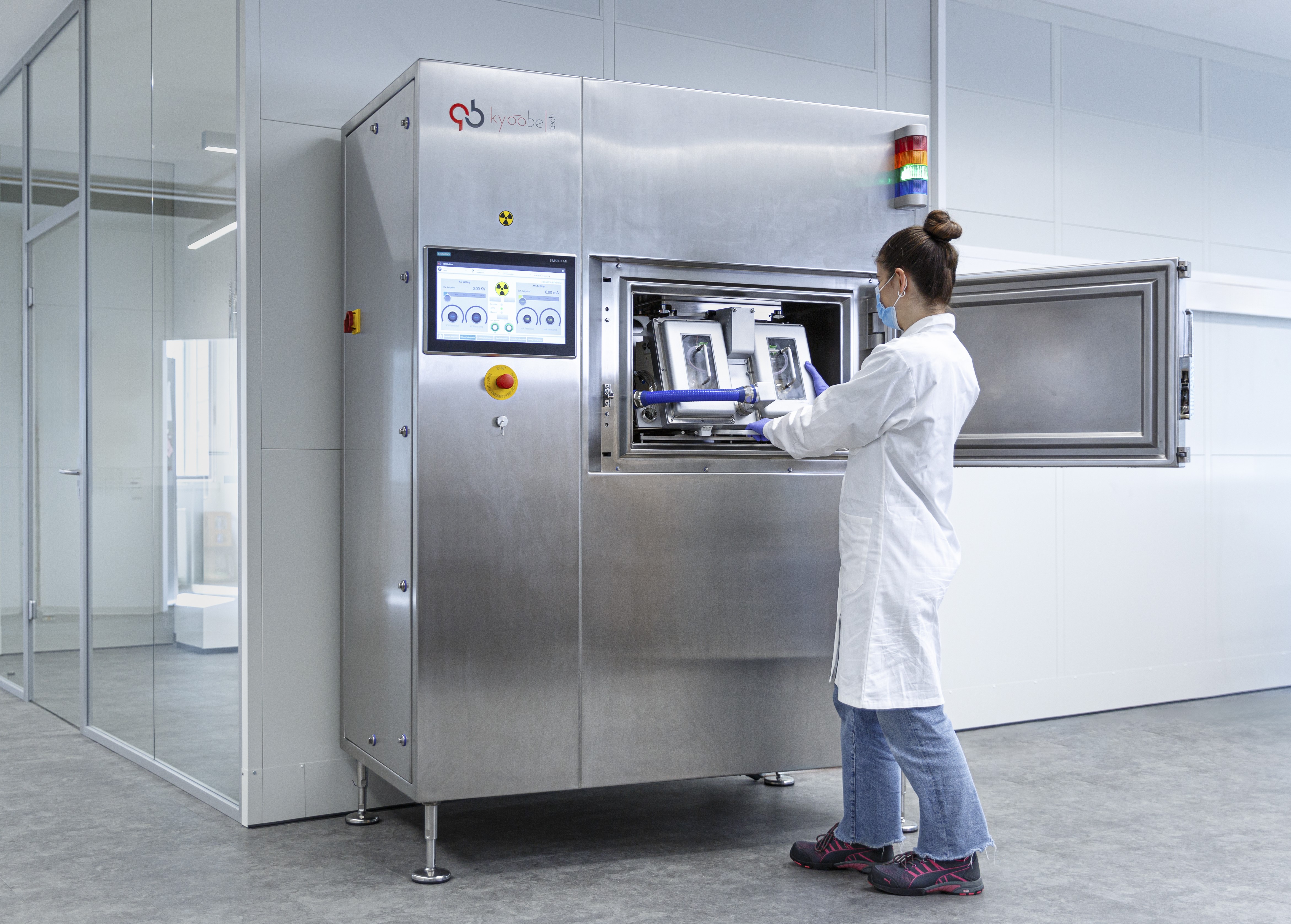

eFIT is a device for the inactivation of pathogens & cells in liquid solutions.

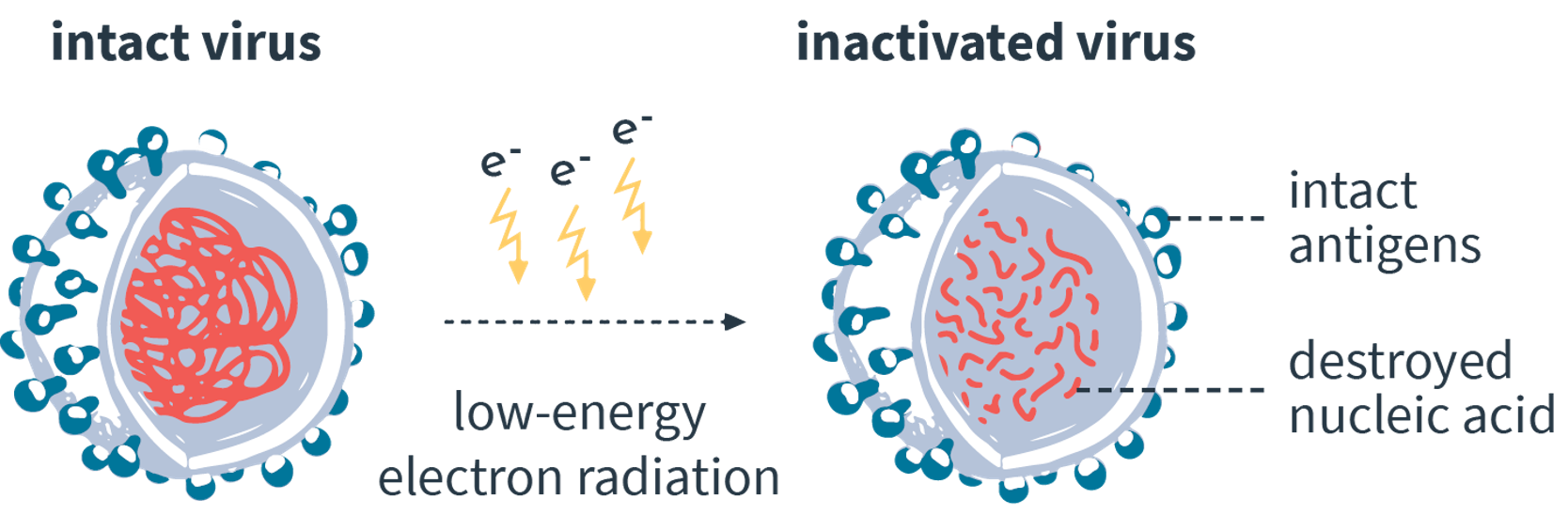

By low energy electron irradiation (LEEI) the genetic material of the pathogens & cells is reliably destroyed. The eFIT platform is suitable for both research (R&D) and small-scale manufacturing companies.

Irradiation Targets:

  • bacteria (gram+/-)
  • bacterial spores
  • viruses (enveloped, non-eneveloped, DNA, RNA)
  • feeder cells and cell lines
  • parasites

Read more Show less

KyooBe Tech GmbH

  • Country/Region:
    Germany
  • On CPHI since:
    2022
  • Employees:
    25 - 49
Company types
Biopharmaceutical company
Engineering
Primary activities
Biopharmaceutical
Laboratory, Analytical, Biotechnology Equipment
Technology
View company profile
Categories
more categories Show less
Specifications
  • Details
    Application Areas:
    • Vaccine Production (veterinary and human sectors)
    • Viral Clearance in Biomanufacturing
    • Cell Therapy Manufacturing
    Technical Specs:
    • Footprint: 1400 mm x 850 mm x 2120 mm
    • Weight: 1250 kg
    • Power supply: 400V - 32 A (CE-certified) + peripherals
    • Max. energy consumption: 10 kWh / h
    Process Specs:
    • Batch size: 50 ml to 500 mL
    • Production speed: 0.33 L/h
    • Radiation dosis: 1 - 60 kGy
    • Depletion level: > 6 log levels reduction
    • Viscosity range: 1 - 4,5 mPa*s
    • Storage temperature range: 2-20 °C
  • Selling Points
    Green Product; Immune Health; Sustainability;
    • Fast inactivation time < 1 s
    • Scalable system
    • No toxic chemicals
  • Model
    Lab
  • Supplied from
    Germany
  • Measured In
    kilogram; kilojoule; litre; metre
More specifications Fewer specifications
Sales Markets
Show more Show less

KyooBe Tech GmbH

  • Country/Region:
    Germany
  • On CPHI since:
    2022
  • Employees:
    25 - 49
Company types
Biopharmaceutical company
Engineering
Primary activities
Biopharmaceutical
Laboratory, Analytical, Biotechnology Equipment
Technology
View company profile

More Products from KyooBe Tech GmbH (1)

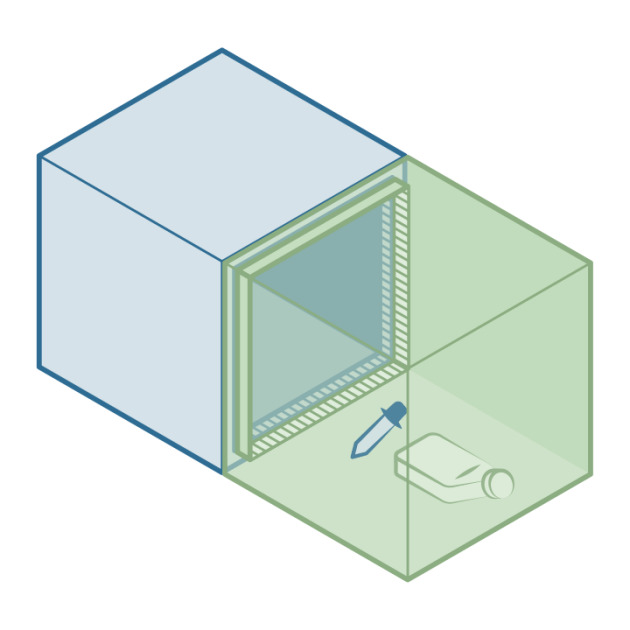

  • MOSAIC: Modular Cell & Gene Therapy Automation
