Electric Heating Pure Steam & Water For Injection Integration

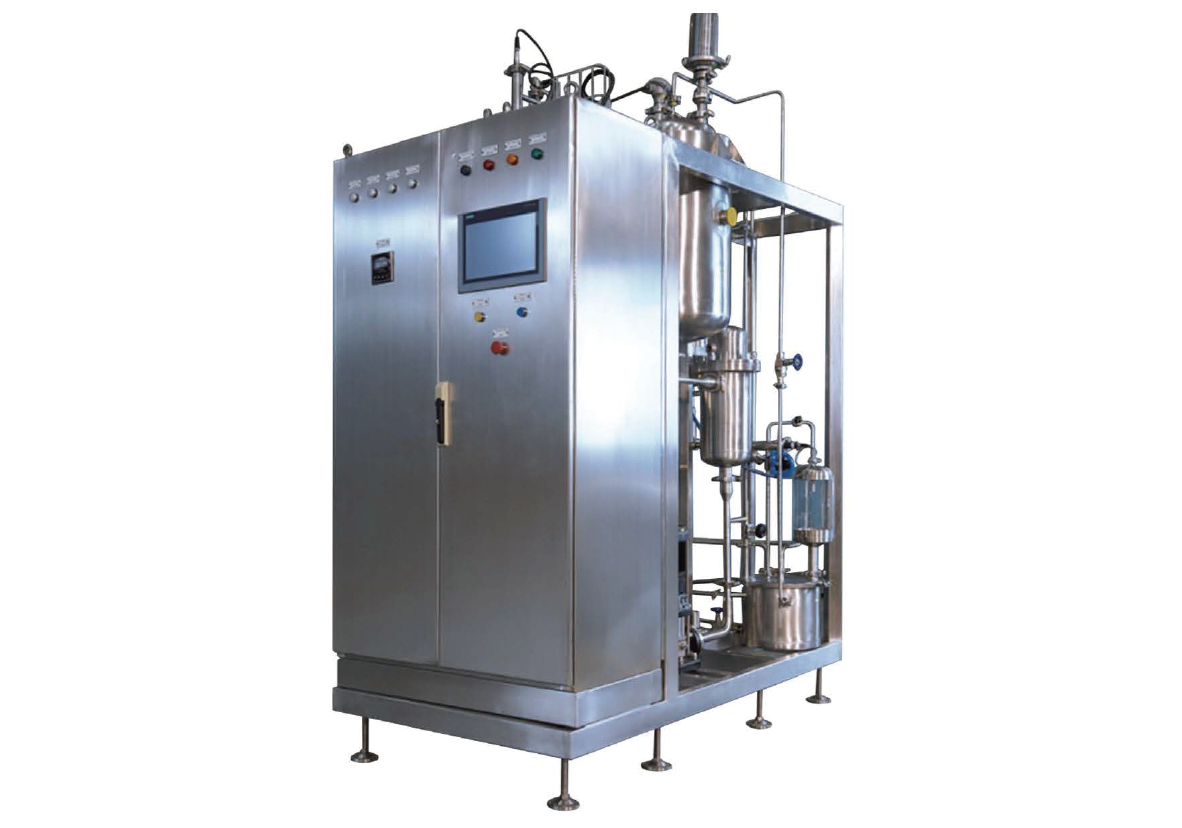

  • Electric Heating Pure Steam & Water For Injection Integration 1

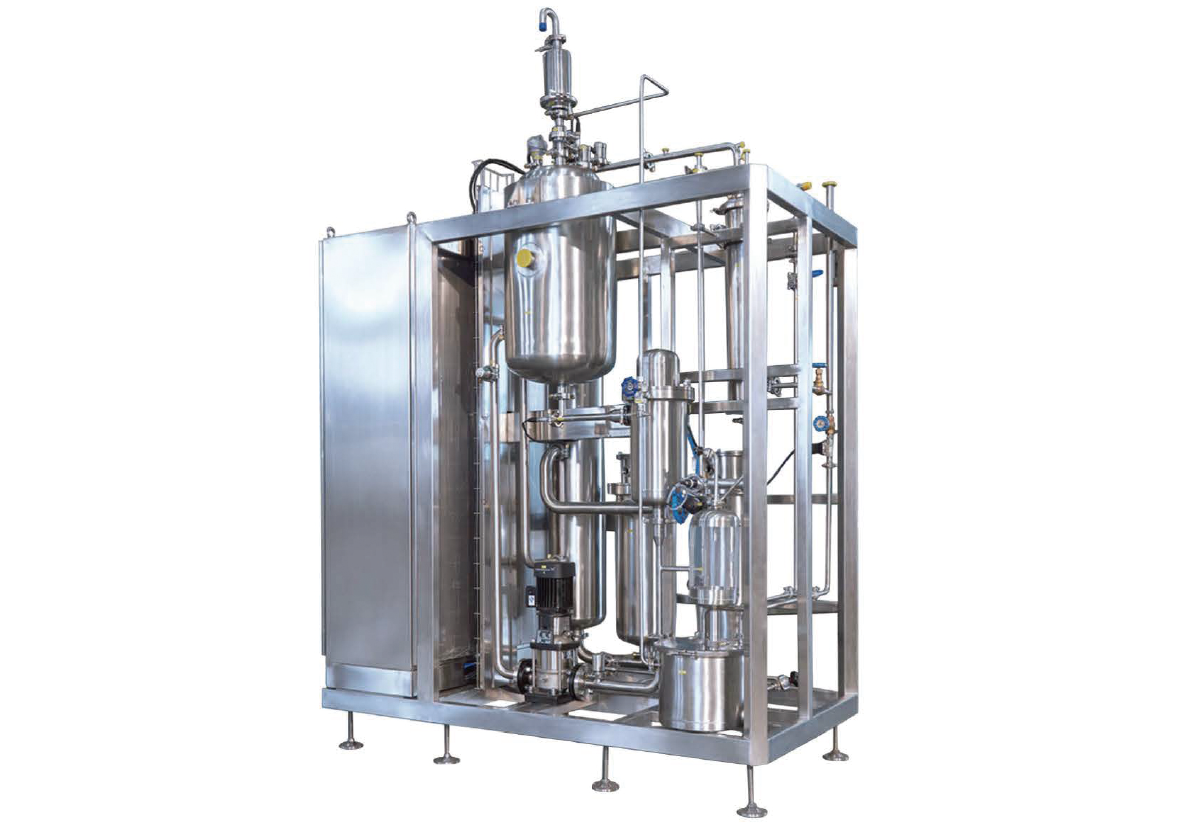

  • Electric Heating Pure Steam & Water For Injection Integration 2
  • Electric Heating Pure Steam & Water For Injection Integration 3
Product Description

Application

  • The system can generate either pure steam or WFl, alternately, The two work modes can be switched with interruption free .
  • The saturated and pyrogen-free pure steam can be used for sterilization of autoclave,bioreactor, formulation system, pipelines, as well as AHU humidifying.
  •  WFI water can be used for formulating sterilized product, and cleaning process system which contact product directly or indirectly.

Read more Show less

Welkin Industry System Engineering Co.,Ltd.

  • Country/Region:
    China
  • Founded:
    2004
  • On CPHI since:
    2024
  • Certificates:
    2
  • Employees:
    250 - 499
Company types
Biopharmaceutical company
Consultancy
Contract Service
Distributor/Import Export
Drug delivery device Supplier/Manufacturer
Engineering
Innovation cluster
IT/Software solution provider
Machinery and Equipment Supplier/Manufacturer
Manufacturer/Innovator
Other
Primary activities
Animal Health
Biopharmaceutical
Cleanroom Technology
Contract Manufacturer
Cosmeceuticals
Custom Manufacturing/Custom Synthesis
Fine Chemicals Company
Laboratory Services
Laboratory, Analytical, Biotechnology Equipment
Medical Devices
Nutraceuticals
Other
Technology
View company profile
Categories
more categories Show less

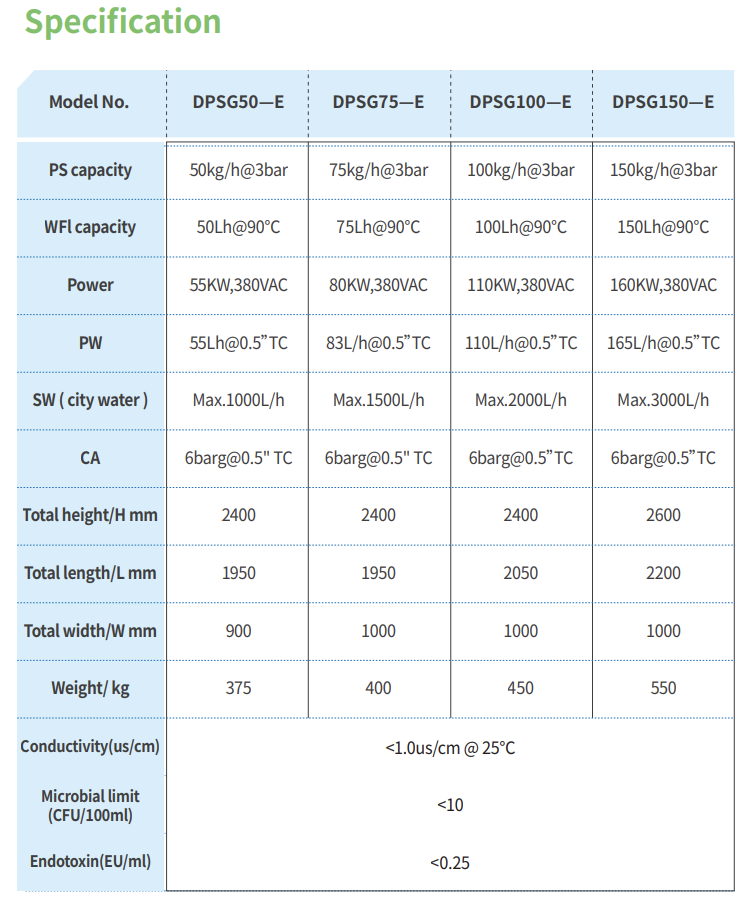

Specifications
  • Details
    Welkin electric single-effect distiller, Named. DPSG-E, that can be used as not only pure steam generator, also WFl generator. lt is R&D and pilot process plant. R&D and semi-works production. The equipment is compact and high efficiency. lt can be suitable for simple workshop, low budget, simple operation, less maintenance, but high WFI/pure steam requirement.
  • Selling Points
    Experienced Technicians; Guarantee/Warranty; Product Features; Product Performance; Prompt Delivery; Quality Service; Reputation; Small Orders Accepted; Sustainability; 高品质制造：电加热单效纯蒸汽发生器 设计了蒸馏器集成（DPSG-E系列）， 根据最新的FDA数据，已制造并验证 能够提供高质量WFI/纯蒸汽的cGMPs， 与中国、美国、欧洲药典相符，如 与HTM2010相遇（EN285）。提交FAT、DQ、IQ 以及OQ并确保产品质量。/ 接触产品材料为SS316L或Incloy800不锈钢 钢材，以及内层抛光剂 Ra<0.6 微米。/ 接触产品 非金属部件 选择材料 符合FDA和USP VI的要求。/ WFI供水管道可实现纯蒸汽自动 绝育和冲洗，没有挡板，也没有死腿。/ 产品电导率、温度和压力为 由录音机持续监控和记录。维护和安装都很方便。
  • Supplied from
    China
