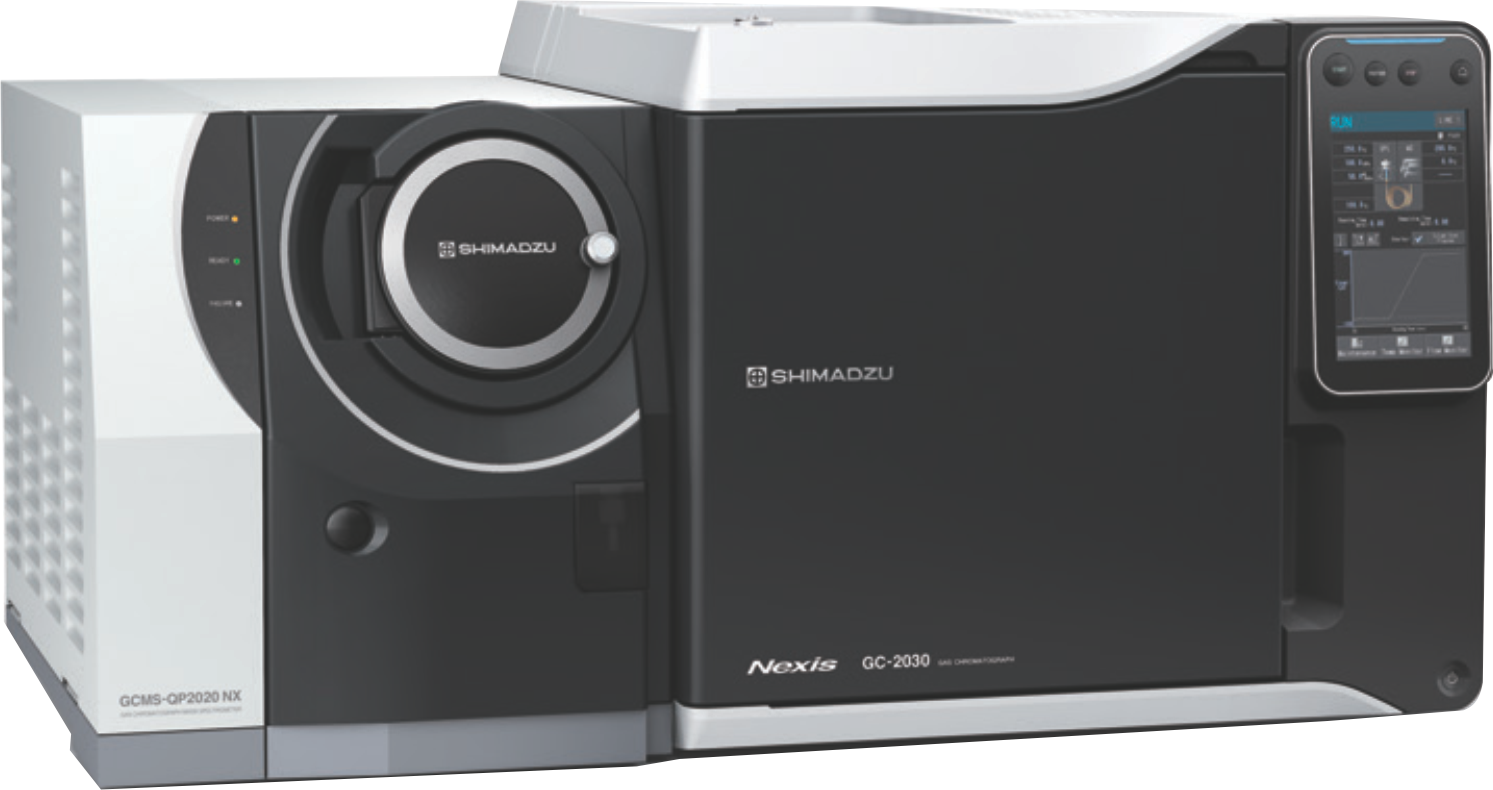

GCMS-QP2020 NX

·         Highest sensitivity in its class through advanced ion optics design for ultra trace applications

·         Ultra high scanning speed up to 20,000 amu/sec for fast and comprehensive GC / MS

·         Shimadzu’s innovative “Advanced Scanning Speed Protocol (ASSP)” to ensure highest sensitivity even at high scanning speed

·         Wide Mass Range of 1.5 m/z to 1,090 m/z to meet even wider applications

·         High capacity vacuum system through Turbomolecular pump (190 L/Sec -170 L/Sec for He) with differential pumping for fast and ultra clean vacuum

·         First of its kind ‘Twin Line MS System’ coupled with ‘Advanced Flow Technology’ offers unique application capabilities – Dual Column Single MS / Multi Detector analysis

·         Upgradeable with ‘Multi-Dimensional GC – GCMS System’ to enhance chromatographic separation capacity

·         Direct compatibility to wide-bore capillary columns with max 15 ml / min carrier flow

·         Variable ionization voltage and current setting

·         Independent heating of ion source and interface

·         Dual filament design for enhanced productivity

·         Fast GCMS capability with micro-bore column of 0.1 mm ID for better resolution and higher throughput

·         Complete application utility with EI, PCI and NCI modes

·         Shimadzu’s unique Direct Inlet Probe for high molecular weight & thermally labile compounds

·         Minimizes maintenance downtime with “Easy sTop” no vent maintenance function

·         Front access ion source for easy maintenance

·         Easy and user-friendly windows based S/W operation through Wizard function

·         Advanced Software features like:

1.      FASST: Fast Automated Simultaneous SCAN / SIM

2.      AART: Automated Adjustment of Retention Time

3.      COAST: Automated Creation of SIM Table

4.      LRI: Library Search using Retention Index

·         Advanced QA/QC, GLP/GMP functions and 21 CFR part 11 compliance

·         Compatibility to wide range of application specific accessories - Headspace Samplers, Auto-Samplers, Pyrolyzer, Purge & Trap, Thermal Desorption, Olfactory Device, On-column Derivatization etc.
