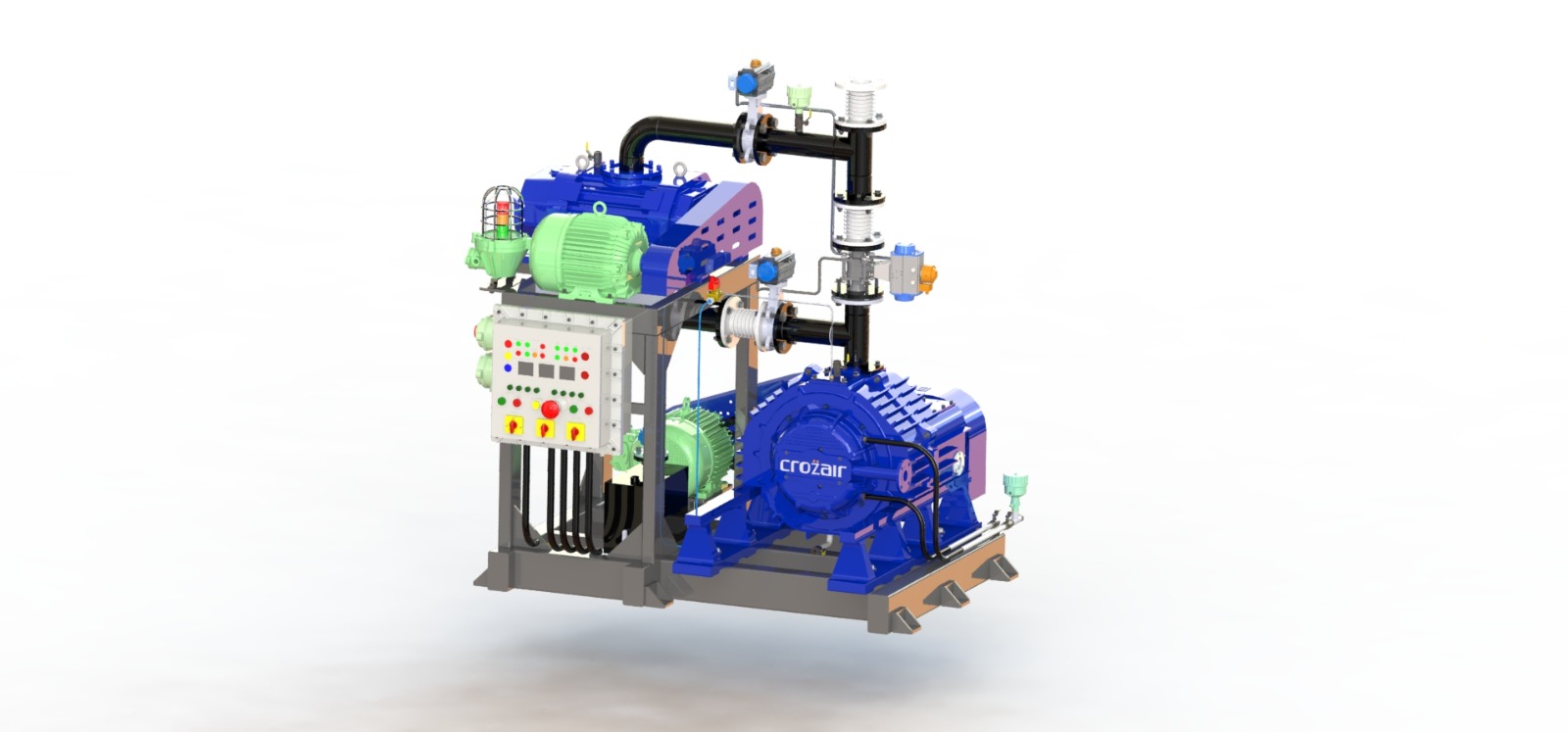

HVHD Dry Scroll Vacuum System

HVHD Dry Scroll Vacuum System
Product Description

HVHD series is a multistage vacuum system specifically designed for giving High Displacement under High Vacuum required in many critical pharma & Chemical applications. It comprises of ARYA series Dry scroll vacuum pump in combination with BR series twin lobe vacuum boosters.Working principle involves use of two interleaving scroll to pump. The scroll geometry may be Archimedean or hybrid curves. One of the scrolls is fixed, while the other orbits eccentrically without rotating, thereby trapping & pumping or progressive compressing pockets of fluids between the scrolls. The compressed gases move towards the center for exhaust.
It is a fully automatic vacuum system equipped with pneumatic valves & control panel containing flow switch, oil level sensors, temp sensors, lights & hooters for quick damage control and safety. System comes with additional safety feature like automatic shutdown that reduces risk of breakdown.

Read more Show less

Crozair Technicea Pvt Ltd

  • Country/Region:
    India
  • On CPHI since:
    2023
  • Employees:
    25 - 49
Company types
Engineering
Machinery and Equipment Supplier/Manufacturer
Primary activities
Other
Technology
View company profile
Categories
more categories Show less
Specifications
  • Details
    Pumping Capacity - 400 m3/hr  / 400m3/hr  / 800 m3/hr / 1650 m3/hrUltimate Vacuum  -   0.5 Torr
    Max inlet pressure - 1 atm
    Max outlet pressure - 1.3 atm/ 1.5 atm
    Pump rotational speed - 600
    Cooling media         - water
    Motor power           - 7 HP/ 12 HP/ 15 HP/ 17.5 HP
    Drive                       - Belt Driven
    Mechanical seal       - Not req
    solvent flushing / N2 purging - Not required
  • Selling Points
    Experienced Technicians;
    a) Robust Performance- High vacuum & High displacementb) Reliable - Designed for long operating hours. Can handle harsh (solid carryovers, acidic pH & chemical slugs) environment
    c) Patented Cantilever - easy to maintain, assemble and disassemble.
    d) No need of solvent flushing or N2 purging
    e) Low operating & maintenance cost

    f) Longer life - scroll is made up of patented material that reduces risk of polymerization and damage

  • Model
    HVHD 70 (ARYA 50 + ANANTA 20 ) HVHD 120 (ARYA 100 + ANANTA 20 ) HVHD 150 (ARYA 100 + ANANTA 50 ) HVHD 175 (ARYA 100 + ANANTA 75 )
  • Supplied from
    India
More specifications Fewer specifications
