Multi purpose - R&D Supercritical CO2 extraction plant

  • Multi purpose - R&D Supercritical CO2 extraction plant 1
  • Multi purpose - R&D Supercritical CO2 extraction plant 2
Product Description

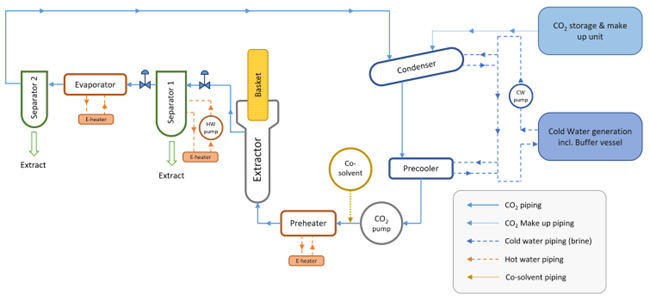

This R&D CO2 extraction unit is designed with focus on flexibility and reproducible results. It recycles the CO2 internally and comes fully tested to be ready for operation within a few days. The equipment is assembled on a stainless steel skid and fabricated according to EU-Norms and safety regulations like:

  • AD 2000
  • CE - Directive for pressure equipment 2014/68/EC
  • CE - Directive concerning machinery 2006/42/EC
  • CE - Low-Voltage Guideline 2014/35/EC
  • CE - EMV Guideline 2014/30/EC
By installing industrially used instruments and components we ensure a reliable data collection and stable operation even with difficult products that form solid extracts and would easily block other equipment.

Read more Show less

NATEX Prozesstechnologie GesmbH

  • Country/Region:
    Austria
  • On CPHI since:
    2023
  • Employees:
    25 - 49
Company types
Machinery and Equipment Supplier/Manufacturer
Primary activities
Biopharmaceutical
Natural Extracts
Technology
View company profile
Categories
more categories Show less
Specifications
  • Details
    Closed loop CO2 extraction system for developing processes inhouse
    • Extraction pressures up to 480bar
    • Extraction temperature up to 95°C
    • 2L effective basket volume
    • Multipurpose equipment for processing all types of solid raw materials
  • Selling Points
    Natural Ingredients
  • Model
    2L / 550 bar
  • Measured In
    Set
More specifications Fewer specifications
Sales Markets
Show more Show less

NATEX Prozesstechnologie GesmbH

  • Country/Region:
    Austria
  • On CPHI since:
    2023
  • Employees:
    25 - 49
Company types
Machinery and Equipment Supplier/Manufacturer
Primary activities
Biopharmaceutical
Natural Extracts
Technology
View company profile

More Products from NATEX Prozesstechnologie GesmbH (1)

  • Industrial CO2 Extraction plant

    Product Industrial CO2 Extraction plant

    The supercritical CO2 extraction and other processes based on CO2 as a solvent are of high interest for different areas of the pharmaceutical industry. This is mainly due to the unique properties of CO2 which allow the extraction of sensitive substances selectively and gently.
    Industrial applications an...

NATEX Prozesstechnologie GesmbH resources (1)

  • Supercritical CO2 extraction plant 2L 550bar for R&D

    Video Supercritical CO2 extraction plant 2L 550bar for R&D

    This premounted CO2 extraction plant is making the unique and positive properties of CO2 accessible to everyone: CO2 is physiologically harmless and inexpensive (We consume it in sparkling drinks) Non-flammable and therefore safer  Extracts & Raw materials are completely free of any solvents after processing (unlike conventional extracts where toxic, flammable and hazardous solvents remain in the product) Process is gentle due to low temperatures CO2 is sourced externally from CO2 emitters and recycled within the process. Key Features of this R&D unit for extraction of solid raw materials with supercritical CO2
    Handling of most solid extracts without blocking Closed CO2 cycle with recovery Membrane pump for hygienic requirements Quick opening closures on Extractor and first Separator Industrial valves (no freezing) Industrial instrumentation Advanced process control system as use...
