Pure Steam Generator

Product Description

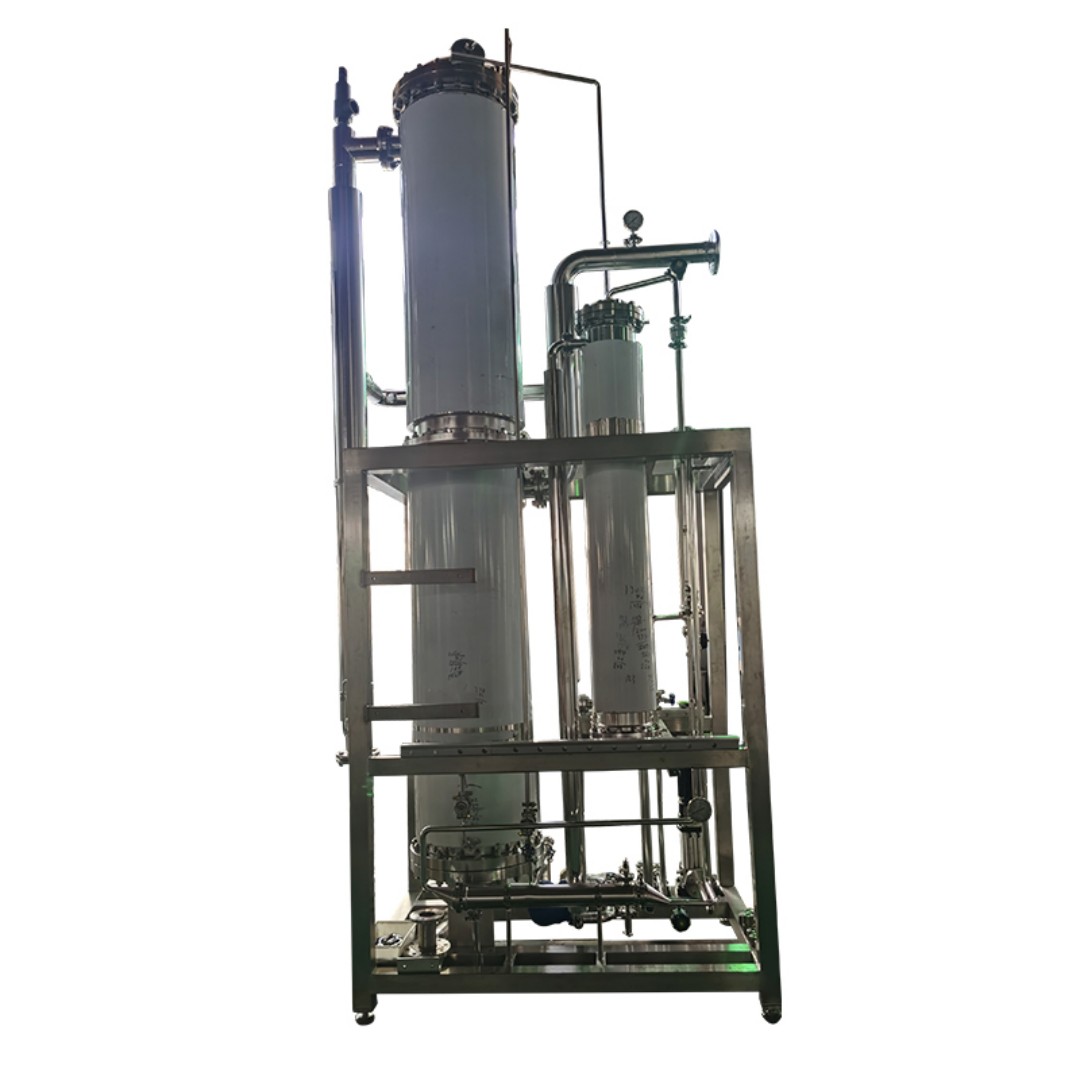

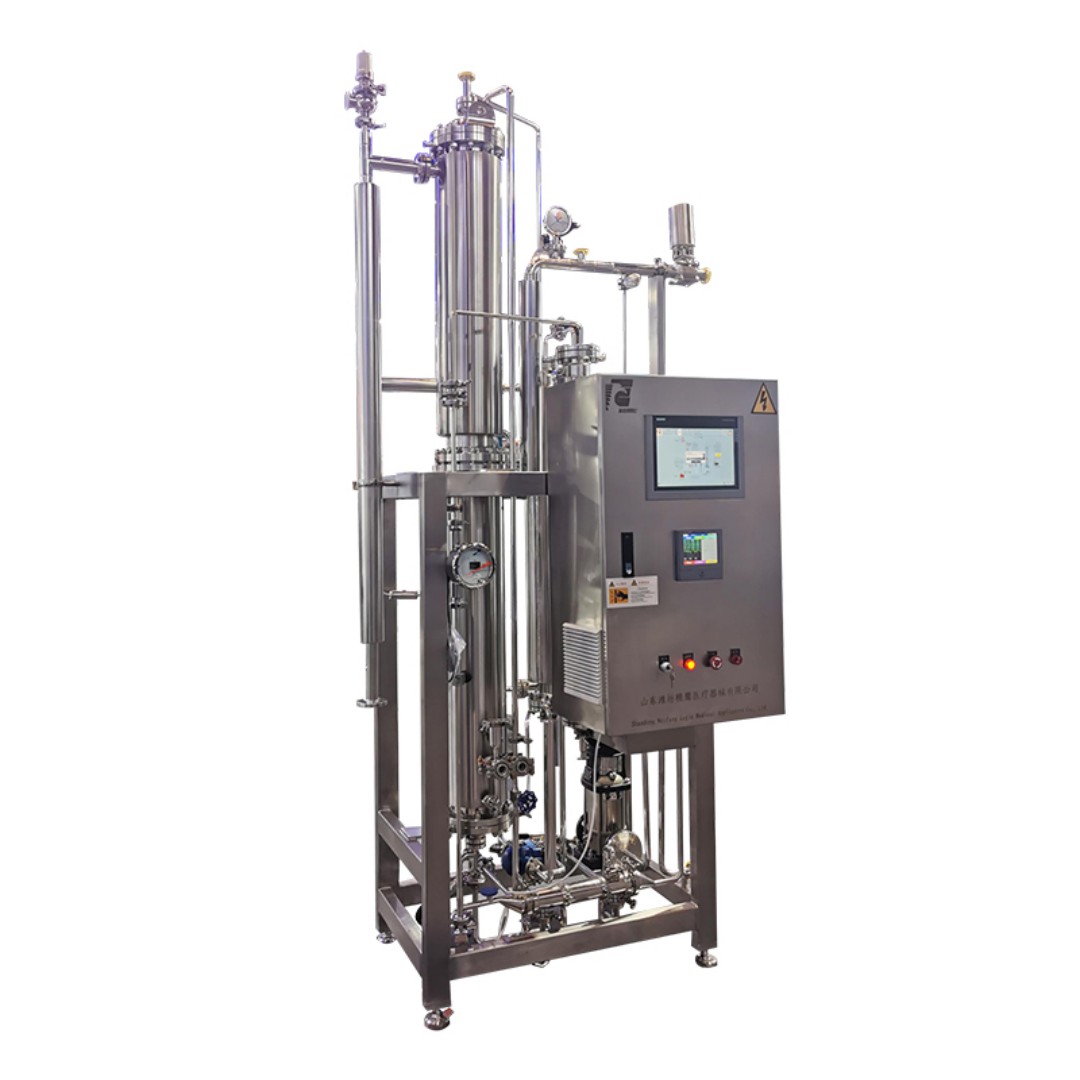

WEMAC's CZQ series Pure Steam Generator is a kind of equipment that uses purified water as feed water and industrial steam heating to produce pure steam. This series of equipment can be used for sterilization and disinfection of pharmaceutical equipment and various process production lines (pipelines, storage tanks, etc.). The condensate of the pure steam produced meets the requirements of Chinese Pharmacopoeia (Cp2020), U.S. Pharmacopoeia (USP43) and European Pharmacopoeia (EP10) for the specification of water for injection.

Zhejiang Aligned Technology Co., LTD

Country/Region:

China
Founded:

2004
On CPHI since:

2023
Certificates:

1
Employees:

100 - 249

Company types

Machinery and Equipment Supplier/Manufacturer

Compare Add to favorites Added to favorites

Specifications

Selling Points
1. Structural form: Evaporator, Preheater and Condenser are all double tube plate design, adopting inner tube plate expansion outside welding process to avoid cross-contamination.2. Separation device: Three-stage separation with falling film evaporation, gravity separation and spiral flow.3. Material: SS316L is used for all parts in contact with feed water, pure steam and pure steam condensed water.4. Thermal insulation: Evaporator and Preheater are insulated with aluminum silicate needled blanket, which has good extensibility, light weight, excellent thermal insulation and strong stability.5. Surface treatment: Electrochemical polishing of internal and external surfaces, effectively ensuring the finish of the stainless steel surface.6. Energy saving and consumption reduction: The evaporator and separator form a huge connecter, and the heat is fully utilized. The whole equipment can reach the maximum production capac...
