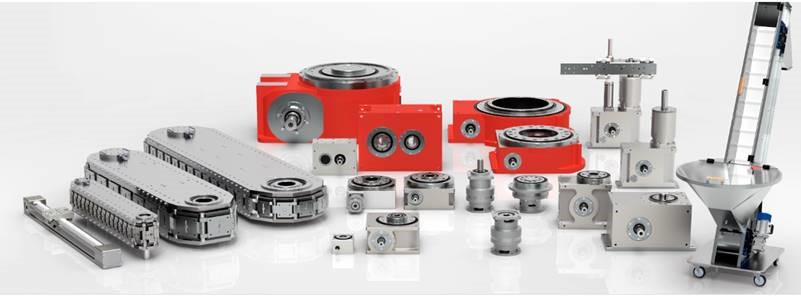

ROTARY INDEXING TABLES - TR Series

ROTARY INDEXING TABLES - TR Series
Product Description

FEATURES• Load capacities from 20kg to 20ton
• Cast Aluminum alloy (size 80-110) or cast iron alloy housing (160-3000)
• Crossed roller bearings for heavy loads and overturning moments
• Stationery through-hole center post• CNC hardened cam profile
• Oscillating and customized complex cam motions available
• Oil bath lubrification
• Appropriate seals prevent oil leakage in any working position• with pre-arrangement for servo connection for flexible positing
• Repeatability of ± 0.02 mm at pitch radius
