Small scale phosgene generator

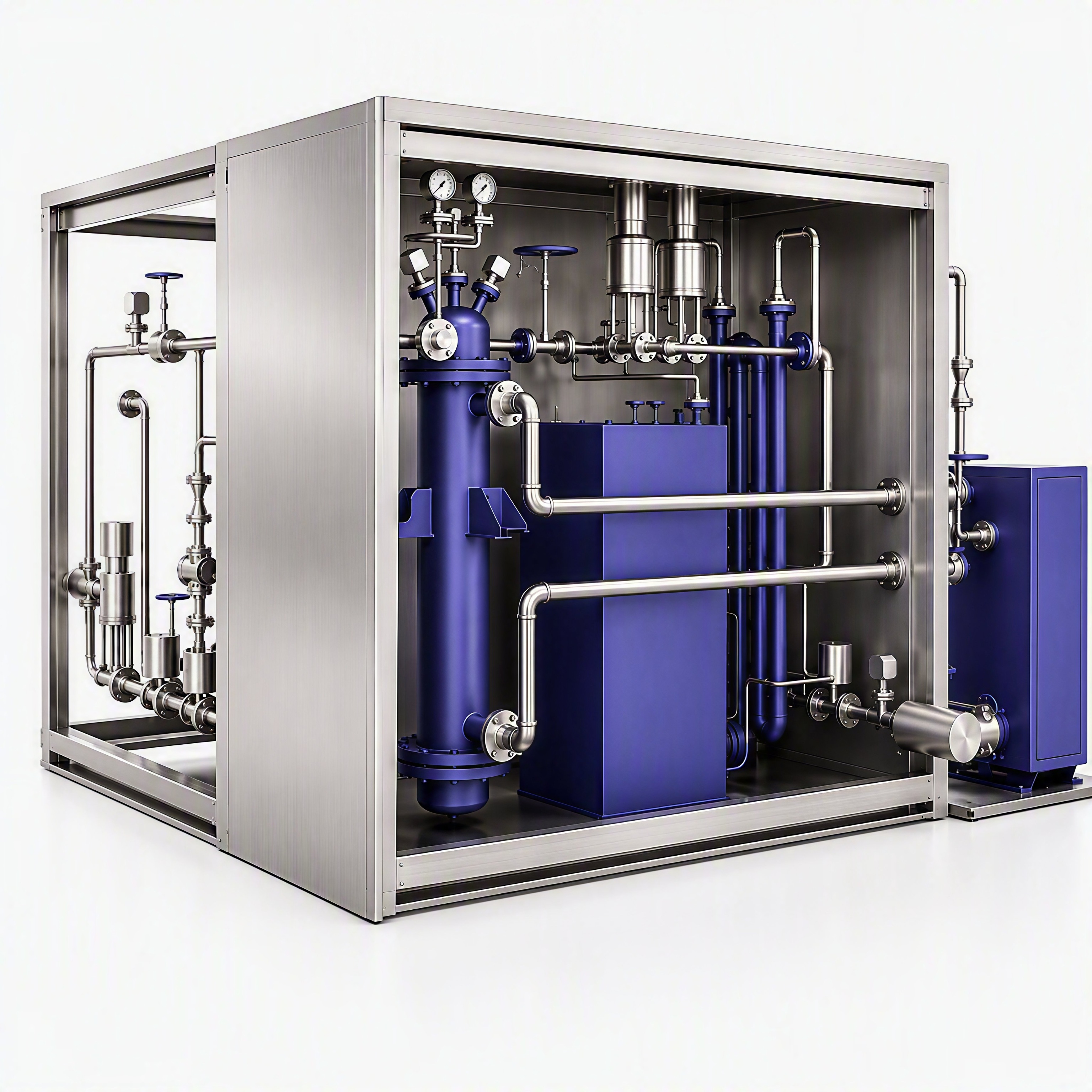

  • Small scale phosgene generator 1

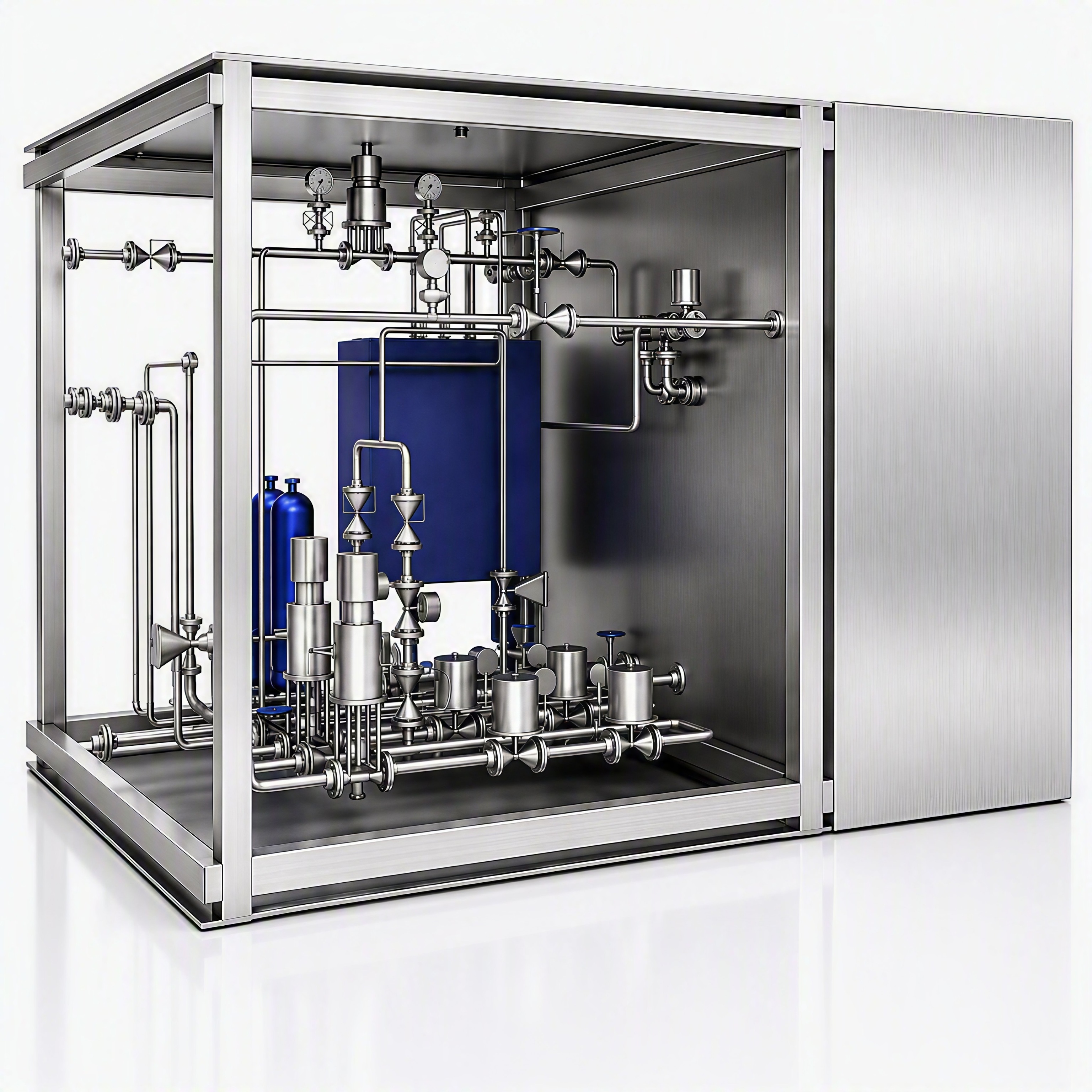

  • Small scale phosgene generator 2
Product Description

The small scale phosgene generation comes as a modular turnkey unit with a nameplate production capacity of 20 kg/h of gaseous phosgene, flexible to operate until ca. 5 kg/h depending on the demand of the phosgene consumer. The features of the bigger industrial units, such as the design philosophy of demand-driven dynamic production and hot stand-by capability, are maintained. Among the other characteristics, the safety concepts of double containment philosophy and automated measuring and control are adopted.
The reactor works with a slight excess of carbon monoxide over chlorine: both raw materials shall be fed to the unit by bottles on racks in client’s scope. The client shall also make available cooling water, electricity, air for instruments and purging to a safety absorption unit.
The footprint of the unit is approximately 6 m in length, 3 m in width, 2.5 m in height.

Read more Show less

Buss ChemTech AG

  • Country/Region:
    Switzerland
  • On CPHI since:
    2024
  • Employees:
    50 - 99
Company types
Engineering
View company profile
Categories
more categories Show less
Specifications
  • Details
    Phosgene is a highly versatile molecule, used predominantly in the large scale isocyanates and polycarbonate production processes, and capillary in the synthesis of numerous specialties, fine chemicals and pharmaceuticals.The market increasingly demands small scale plants, an application area not previously covered by BUSS ChemTech, which instead has historically delivered several phosgene generators with nameplate capacities ranging from 200 to 12’500 kg/h.
    BUSS ChemTech, as the recognized technology leader, committed to fill this market gap and is presenting the small scale phosgene generator technology for the first time at the CPHI in Milano, Europe’s largest pharma event networking all the key players in the industry supply chain.
  • Model
    5-20 kg/h
More specifications Fewer specifications
Sales Markets
Show more Show less

Buss ChemTech AG

  • Country/Region:
    Switzerland
  • On CPHI since:
    2024
  • Employees:
    50 - 99
Company types
Engineering
View company profile

More Products from Buss ChemTech AG (2)

  • Phosgene Generator

    Product Phosgene Generator

    Dynamic phosgene generation is the safe way to production. Phosgene is a very versatile raw material commonly used in the production of many organic compounds. Reactions using phosgene produce high purity products with high yields. However, phosgene’s reactivity and toxicity make it a particular hazard and...
  • The BUSS-Loop® Reactor

    Product The BUSS-Loop® Reactor

    The BUSS-Loop® Reactor is, since its origin, the icon and the benchmark for superior efficiency in reaction technology. This is due to its elegent design and instrinsic ability to cope with the challenges of reaction engineering, like mass transfer, mixing, heat transfer, catalyst handling, flow chemistry,...

Buss ChemTech AG resources (5)

  • Gas-Liquid Reactions

    Brochure Gas-Liquid Reactions

    BUSS ChemTech is recognized as a world leading technology supplier for gas-liquid reactions, with the BUSS-Loop® as unrivalled high-efficiency industrial reacto
  • Process Development Services

    Brochure Process Development Services

    BUSS ChemTech is since decades helping clients to develop, optimize and scale-up existing and new processes, in laboratory and pilot plant units.
  • Alkoxylation

    Brochure Alkoxylation

    Our alkoxylation technology is based on the proven performance characteristics of the BUSS-Loop® Reactor, achieving the highest efficiency in such reactions.
  • Phosgene Generation and Phosgenation

    Brochure Phosgene Generation and Phosgenation

    BUSS ChemTech has developed a unique system for the dynamic production of phosgene that avoids the liquefaction or storage of phosgene used in phosgenations.

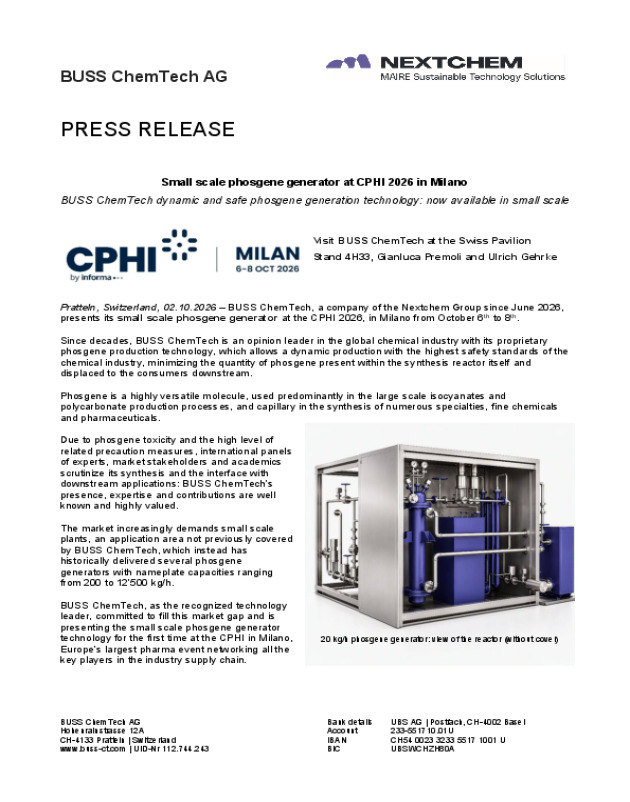

  • Small scale phosgene gerator
