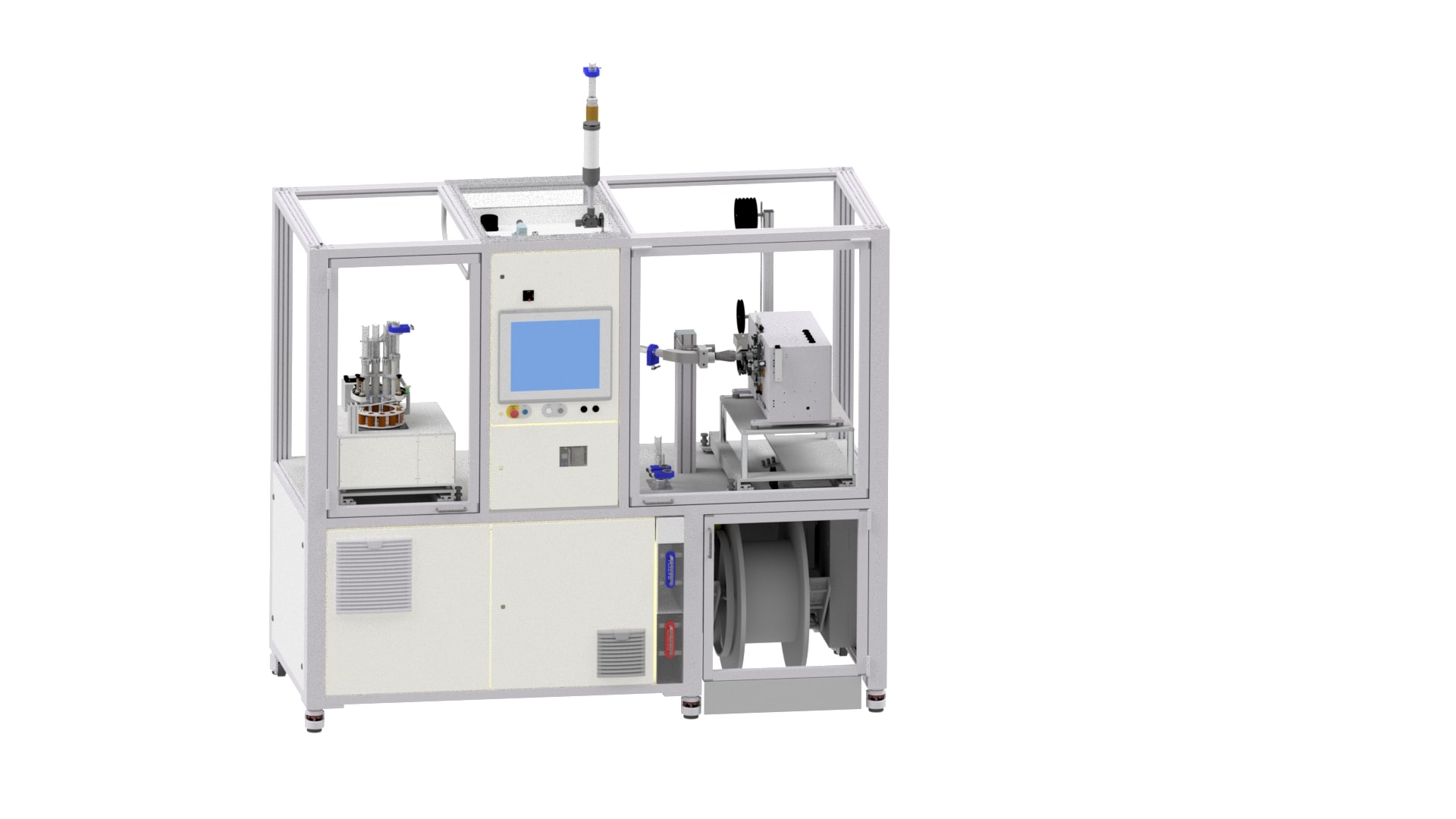

Spring Coiling C2

Spring Coiling C2
Product Description

The Tekda C2 Series is a robust, pneumatic-driven spring coiling machine engineered for seamless integration into automated assembly systems. It produces on-demand springs—exactly when and where needed—triggered by a start signal via connected tubes or delivery rods. Designed to be durable, reliable, and compact, it supports high throughput while maintaining tight tolerances and rejecting any out-of-spec springs.

Read more Show less

Tekda AB

  • Country/Region:
    Sweden
  • On CPHI since:
    2023
  • Certificates:
    3
  • Employees:
    25 - 49
Company types
Engineering
Machinery and Equipment Supplier/Manufacturer
Manufacturer/Innovator
Primary activities
Medical Devices
Medical Technologies
Technology
View company profile
Categories
more categories Show less
Specifications
  • CAS Registry Number
    N/A
  • Details
    Integration in automated assembly lines for medical devices, electronics, automotive components, and consumer products

    Ideal for high-speed, high-volume production where spring quality must be verified in-line

    Suitable for factories with limited floor space thanks to its compact design

    Used in setups requiring minimal manual intervention, real-time quality monitoring, and just-in-time delivery

    Great fit for operations aiming to reduce logistics costs and spring inventory

    Drive type: Pneumatic

    Wire diameter range: 0.10 mm – 1.10 mm

    Spring outer diameter: 1 mm – 22 mm

    Pitch range: 0.4 mm – 26.4 mm

    Dimensional precision: Diameter tolerance down to ±0.05 mm

    Chassis sizes:

    XMS: 1560 × 1020 × 2100 mm

    SSBB: 2460 × 1040 × 2100 mm

    Optional modules: Heat treatment, load and length control, and automatic rejection of...
  • Selling Points
    Experienced Technicians; Guarantee/Warranty; Price; Quality Service; Sustainability; Pneumatic-driven system delivers fast and reliable spring production directly on the assembly line.

    On-demand coiling, triggered to produce the exact number of springs needed, right when needed.

    Wide wire and part range: handles wire from 0.10 mm to 1.10 mm, spring outer diameters between 1 mm and 22 mm, and pitch up to 26.4 mm with tolerances as tight as ±0.05 mm.

    Integrated quality control: real-time multi-stage inspection for load, length, and diameter, with automatic separation of defects.

    Compact, modular design: two chassis sizes—XMS for tight spaces, SSBB for higher throughput.

    Expandable post-processing: optional modules available for heat treatment, dimensional and load checks before delivery.

  • Model
    Tekda C2 Series
  • Supplied from
    Sweden
More specifications Fewer specifications
