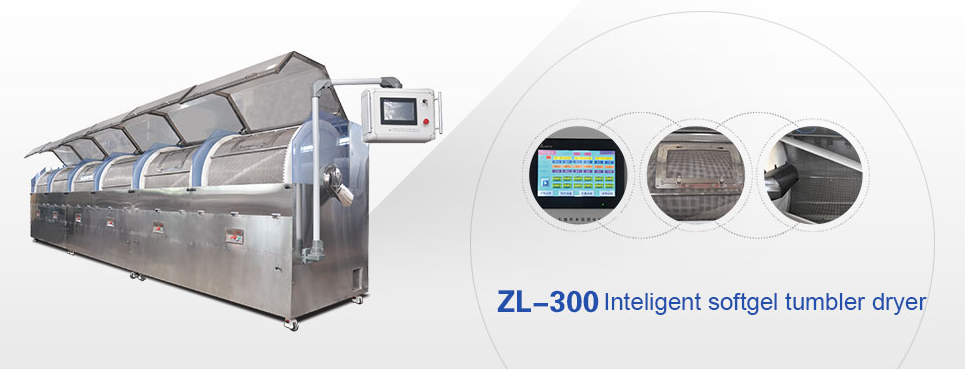

Zl300 Inteligent Softgel Tumbler Dryer

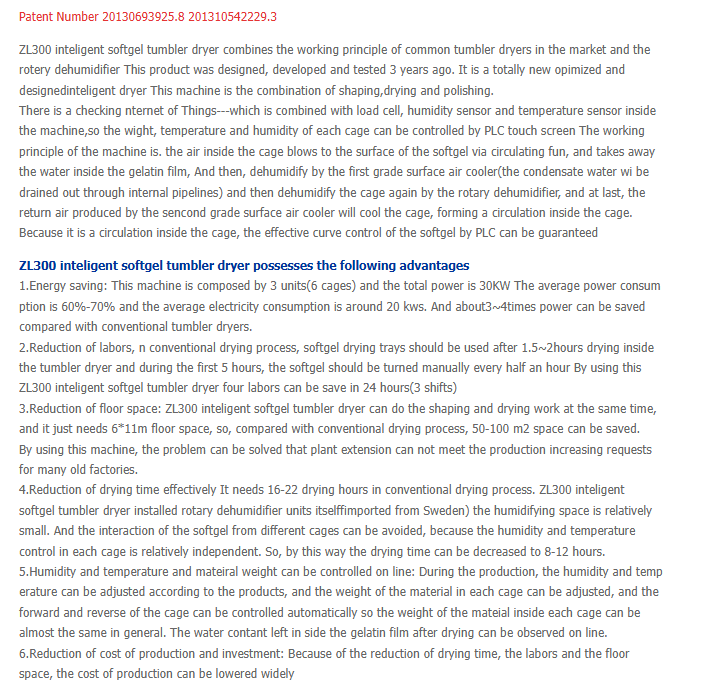

Wuxi zhongyi chemical pharmaceutical machinery equipment co. Ltd offers a wide range of soft capsule technical flow chart pressure pill system which includes zl300 inteligent softgel tumbler dryer. Operation: it is a totally new opimized and designedinteligent dryer this machine is the combination of shaping,drying and polishing. There is a checking nternet of things which is combined with load cell, humidity sensor and temperature sensor inside the machine,so the wight, temperature and humidity of each cage can be controlled by plc touch screen the working principle of the machine is. The air inside the cage blows to the surface of the softgel via circulating fun, and takes away the water inside the gelatin film, and then, dehumidify by the first grade surface air cooler(the condensate water will be drained out through internal pipelines) and then dehumidify the cage again by the rotary dehumidifier, and at last, the return air produced by the sencond grade surface air cooler will cool the cage, forming a circulation inside the cage. Advantage: energy saving: this machine is composed by 3 units(6 cages) and the total power is 30kw the average power consume option is 60%-70% and the average electricity consumption is around 20 kws. And about3~4times power can be saved compared with conventional tumbler dryers. Contact us for more information.
