ADAPTA 7-21-50

cartoner

Series blister machine with integrated cartoner

DOMINA – Tablet press

DOMINA is a modular technological platform enabling companies to define the ideal configuration to perfectly compress any powder into any tablet. This tablt press is easy to use, simple and fast with innovative technical solutions that deliver the desired results in terms of products requirements. DOMINA automation is a step ahead of other machines, helping to maximise production and minimise errors.

Discover more: https://imagroup.com/machines/domina/

MYLAB – Laboratory equipment

MYLAB is a laboratory scale equipment for R&D purposes or scale-up studies that can support either a coating pan, a fluid bed processor or a high shear granulator. MYLAB is compact and portable, on wheels, effortless and highly ergonomic allowing for very quick and easy product change. Compliant to the most restrictive GMP rules, MYLAB is also available for high containment processes when configured with a single module and for processes based on organic solvents.

Discover more: https://imagroup.com/machines/mylab/

SOLIDA - Tablet press

SOLIDA extends the benefit of a robust tablet press to a wider range of production allowing both pre-compression and main compression forces up to 100 kN. Both the IMA 8 tooling and the segment technology allow for improved output for tablets up to 11 mm diameter. SOLIDA allows single reject and sempling both in mono and bilayer configuration: in-line control is key to process stability.

Discover more: https://imagroup.com/machines/solida/

CYCLOPS - Bin tumbler
CYCLOPS is a tumbler designed for the blending and homogenising of powders and granules for the pharmaceutical and nutraceutical industries, featuring the innovative Trigon System, a universal bin blocking system with a unique pharma GMP design to simplify loading and unloading operations. Providing the characteristic versatility and top performance of IMA Active’s tumblers, CYCLOPS ensures efficient mixing thanks to its 15° rotation axis while minimising the need for tumbler decontamination. The machine can be installed through-the-wall for top-level GMP configuration and space saving in the processing area.

Discover more: https://imagroup.com/machines/cyclops/

EFFECTA - Coating pan

EFFECTA is a perforated coating pan for tablet film and sugar coating. High-grade components include a functionally shaped perforated drum and specially conceived baffles for effective mixing of the cores and uniform distribution of the sprayed coating dispersion. Designed to meet the requirements of the pharmaceutical and nutraceutical industries, EFFECTA is the straightforward solution to maximise efficiency in coating processes. The machine achieves excellent results ensuring hassle-free productivity.

Discover more: https://imagroup.com/machines/effecta/

ARIA - Fluid bed processor

ARIA allows drying, granulation and pellet coating with maximum reliability and ample flexibility. Designed for through-the-wall installation, ARIA is easy to integrate with other granulation equipment into fully contained processing lines. ARIA water recirculation system allows consumption savings and reduces the disposal of dirty water at the end of the washing cycle, while granting optimal equipment performance. The AHU allows energy efficiency thanks to the recovery of treated air which is used to cool/heat the incoming air thus maintaining optimal system performance.
Discover more: https://imagroup.com/machines/aria/

AQUARIA - Component washer
AQUARIA is IMA Active’s new component washer, maximising the washing chamber volume while minimising the size of the machine. A solution for tools, components and machine parts, AQUARIA redefines the meaning of flexibility and performance. Powerful yet essential, effective and smart, a variety of configurations help keep consumption under control, ensure greater efficiency and respect for the environment.AQUARIA water recirculation system allows consumption savings and reduces the disposal of dirty water at the end of the washing cycle, while granting optimal equipment performance. The AHU allows energy efficiency thanks to the recovery of treated air which is used to cool/heat the incoming air thus maintaining optimal system performance.

Discover more: https://imagroup.com/machines/aquaria/

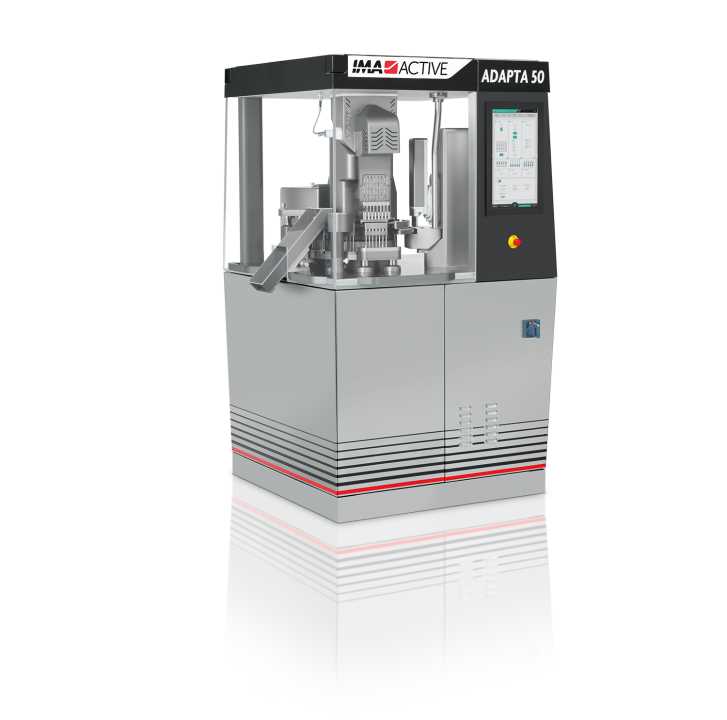

ADAPTA – Capsule filler

Deep knowledge has allowed IMA capsule fillers to evolve and adapt to the ever-changing requirements of the market. ADAPTA is extremely innovative and able to dose powder, pellets, tablets, minitablets and liquids into hard gelatine capsules.The use of advanced sensors together with evaluation algorithms of produced data, allow full control of production, setting the premises for Advanced Control Strategies. Advanced machine learning functions are used for more efficient self-adjustment of process parameters: less waste, better product quality. All this maximises machine functionality, keeping the machine performance on target and allowing the single rejection of products out of specification. ADAPTA no-fill bypass prevents product waste if the capsule body is not present.

Discover more: https://imagroup.com/machines/adapta-100-200/

ROTO CUBE – Single-pot processor

Developed in 1984 as a contained solution for the processing of highly pharmaceutical products, ROTO CUBE technology became the benchmark for single-pot process.
ROTO CUBE allows the entire process of any type of product, from the loading of raw materials to the discharge of dry granules, carried out in a single, contained bowl, thus eliminating contact between product, operator and the environment.

Discover more: https://imagroup.com/machines/roto-cube/

PERFIMA – Coating pan

PERFIMA is a perforated coating pan for tablet film and sugar coating. The shape of the pan combined with the mixing baffles positioned in the central sector of the drum ensure perfect mixing of the cores allowing a wide range of batches to be processed in the same drum. PERFIMA is available with three different drum models:
-          ECHO: equipped with welded mixing baffles for tablet film and sugar coating.
-          EXTRA: equipped with removable mixing baffles for tablet film and sugar coating.
-          EDGE: equipped with wedge wire screen for pellet, minitablet and tablet processing.

Also suitable for high containment installations, PERFIMA guarantees maximum operator protection while working with HAPI.

Discover more: https://imagroup.com/machines/perfima/

IMA Pharma combines specialized expertise in pharmaceutical manufacturing, packaging, end-of-line automation, and medical device technologies. Through its integrated divisions, the company provides innovative, end-to-end solutions that support customers across the entire pharmaceutical production process.

IMA Pharma combines specialized expertise in pharmaceutical and nutraceutical manufacturing, packaging, end-of-line automation, and medical device technologies. Through its integrated divisions, the company provides innovative, end-to-end solutions that support customers across the entire pharmaceutical production process.

The X-PEN series offers a variety of assembly machines designed to meet the needs of different production environments, from manual to full automated systems, providing efficient solutions for assembling standard devices with varying output speeds and levels of automation. The flexibility of the X-PEN portfolio allows for seamless integration into different production lines, ensuring high-quality results and improved efficiency.
