CONTAINER CLOSURE INTEGRITY TESTER (CCIT)

Introducing Our State-of-the-Art Induction Sealer:

- Fast and Reliable: Seal hundreds of containers per minute with consistent and   reliable results.

- Versatile: Suitable for various container sizes and closure types, ensuring
   flexibility ...

Sevoflurane Glass Bottle Complete Packaging Line

Line Speed : up to 60BPM
Technology : Mass Flow Meter Based with CIP & SIP.

CONTAINER CLOSURE INTEGRITY TESTER (CCIT)
It is the need of the hour to see that the most effective formulation should finally reach the patient in its purest form as remedy.

How do you achieve that!!!
First of all, the product handling during formulation is of the utmost importance.

Secondly, it should be packed well, such that it is not contaminated during its life cycle before use.
When you say contaminated, it means that nothing from outside the package should enter it.

This means that the packaging should be leak proof during its life cycle.  Hence, the need to make sure that each package is tested before despatch and its audit trail maintained.
This is where WINSSON INDIA can help the pharmaceutical industry to achieve its objective by delivering the purest form of their formulation to the actual user. Our end of line validation equipment for post fill and seal integrity of the package is ...

Speed of Operation : 32BPM for water.

Accuracy            : 2% @ 1 litre

Suitable for  : Viscosity ≥ 2 CST and ≤ 5000 CST

Filling Range : Up to 1ltr

Piston Control : Automatic - (Mechanical/ Servo/ Pneumatic Based)

Power Supply Req.         : 415VAC, 50Hz, 3KW Max

Air Supply Req.           : 8 CFM at 5 to 6 Kg/cm² for Pneuma...

SPECIFICATIONS

☼ Air Consumption: 300 LPM / 3 HP Compressors

 ☼ Maximum Pressure: 7 kg / cm2

☼ Minimum Pressure: 5 kg / cm2

☼ Input Power Supply: 415V AC, 50Hz, 15 Amps. 4KW. Max.

☼ Speed: 1 Fills per minute* for 20L Cubitainer.
    * Indicates speed can vary according to the Cubitainer size, speed of indexer        conveyer, Pump Speed and Filling Time.

Specification

Speed of Operation         : 60 BPM for 1 litre @ EIGHT HEAD.

Accuracy : 0.1% of full scale value.

Suitable for          : Viscosity up to 5000 CST

Filling Range                  : 100ml to 1L, 1L- 5L, 5L - 30L

Machine Type                  : Automatic- On the Fly Filling Nozzle

Power Supply Req.         :  415VAC, 50Hz,5KW Max

Air Supply Req.               : 2CFM

PURPOSE OF THE MACHINE

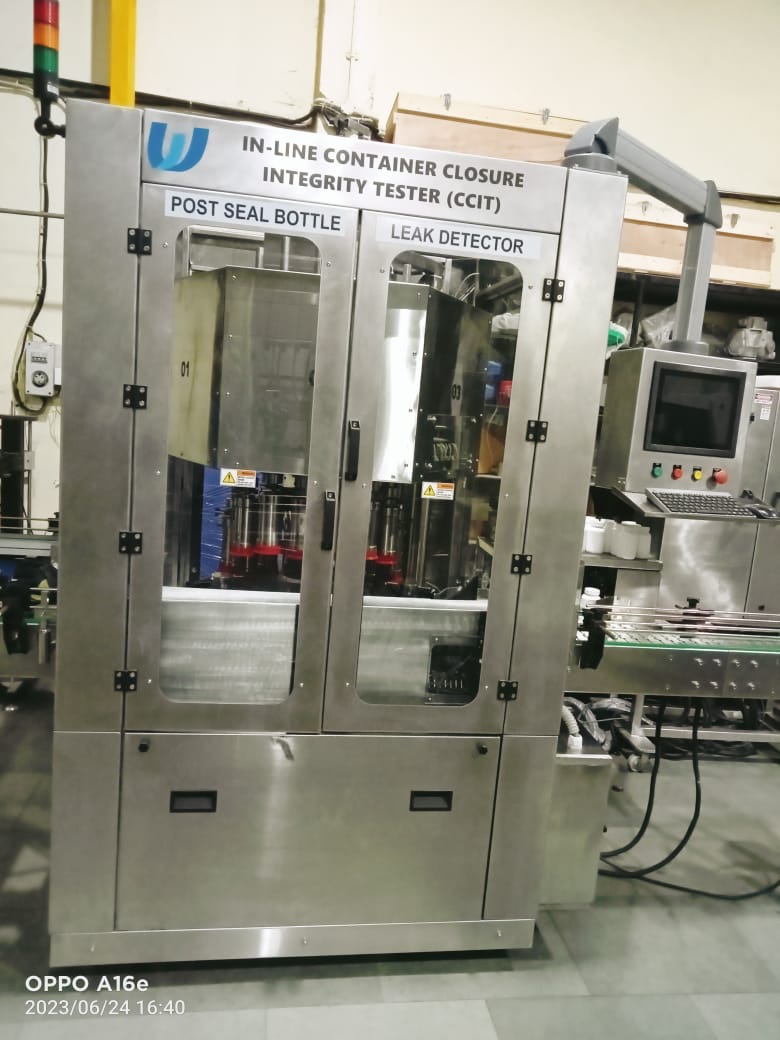

The 16 head Rotary Container Closure Integrity Tester (Post Seal Leak Detector) is used for checking the seal integrity of filled and sealed container. It helps to separate the properly sealed containers from the leaked containers.

 PRINCIPLE OF WORKING

Vacuum Decay Method is used to detect leaks in filled and sealed containers. There must be a headspace gap within the container. The gas in this headspace will leak if the container is not sealed during the application of vacuum. The test vacuum cup enclosed the bottle completely and generate a vacuum as per the free space between cup & bottle covering by the cup. If there is a drop in vacuum after set time that means there is a leak in sealed bottle.

 MODES OF OPERATION

·      Manual Mode

·      Auto Mode

·      Dry Mode

PURPOSE OF THE MACHINE

The 16 Head Rotary Container Closure Integrity Tester (Post Seal Leak Detector) is used for checking the seal integrity of filled and sealed container. It helps to separate the properly sealed containers from the leaked containers.

PRINCIPLE OF WORKING

Vacuum Decay Method is used to detect leaks in filled and sealed containers. There must be a headspace gap within the container. The gas in this headspace will leak if the container is not sealed during the application of vacuum. The testing vacuum cup sealed the bottle neck and generate a vacuum as per the free space between cup & bottle shoulder covering by the cup. If there is a drop in vacuum after set time that means there is a leak in sealed bottle.

MODES OF OPERATION

·      Manual Mode

·      Auto Mode

·      Dry Mode

Winsson India is an ISO- 9001:2015 certified company manufacturing & exporting rigid packaging machineries having manufacturing plants at Achhad (Talasari) and Rabale (Navi Mumbai). It was established by a group of technocrats from packaging industry. Their exposure to the industry for more than two decades in design, development and providing solutions to the packaging industry has been a great asset to the organization.
We are the leading manufacturer of Packaging lines for various viscosities of liquid ranging from 2CST to 5000 CST, covering industries like edible oil, lube oil, agrochemicals, food & beverages and pharmaceutical. We have in-house R&D, manufacturing and design validation set-up to analyse & validate our designs. Our factory is equipped with CNC machines powered by uninterrupted solar power systems with UPS.
