Discover Labscale TFF

Discover Labscale TFF
Product Description

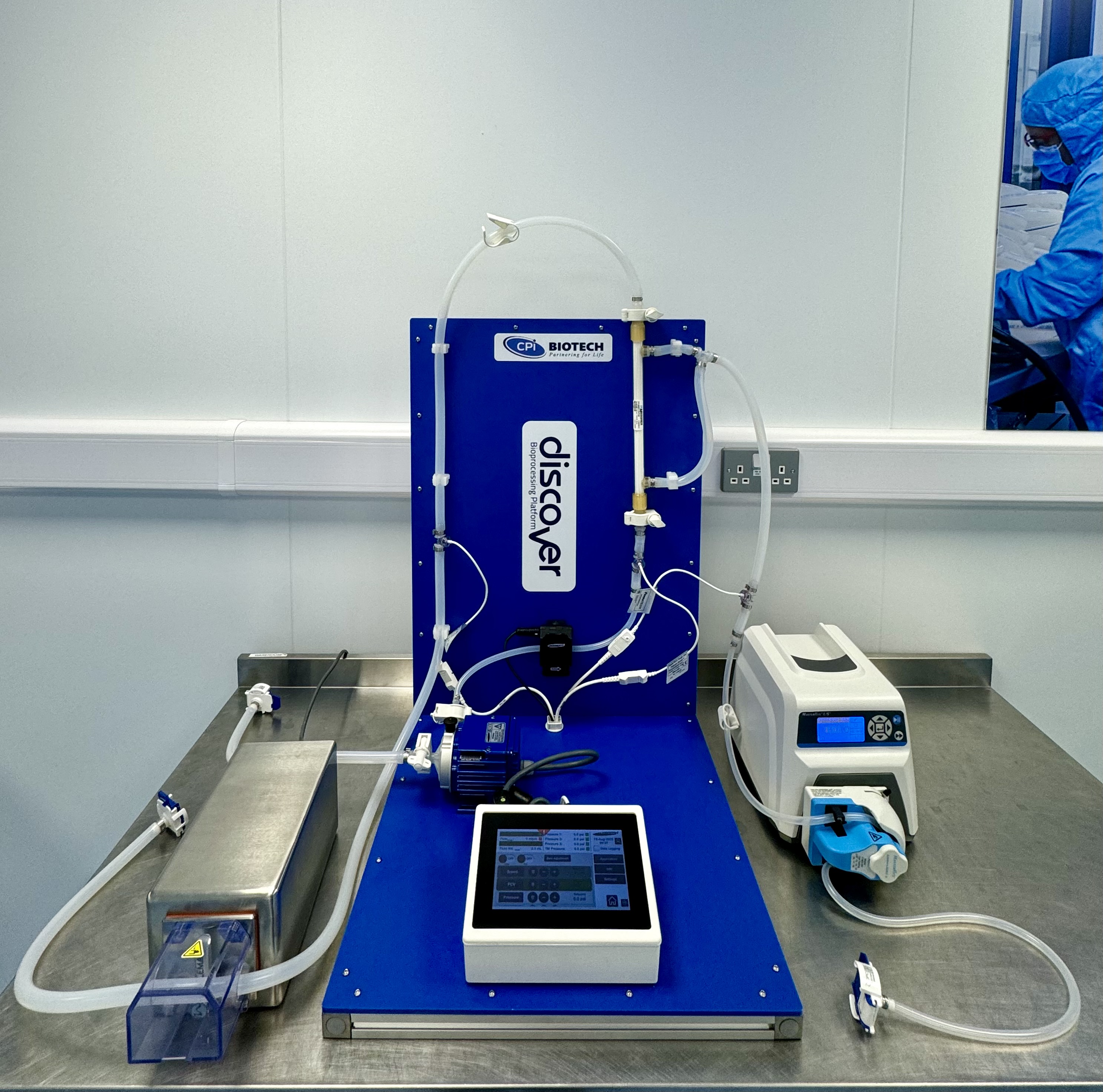

A benchtop single-use, closed, low-shear tangential flow filtration TFF and cell retention system for N1 perfusion and process development. It is intended for upstream bioprocess intensification.

Read more Show less

CPi Biotech

  • Country/Region:
    Ireland
  • Founded:
    2001
  • On CPHI since:
    2025
  • Certificates:
    1
  • Employees:
    50 - 99
Company types
Engineering
Machinery and Equipment Supplier/Manufacturer
Manufacturer/Innovator
Primary activities
Biopharmaceutical
Custom Manufacturing/Custom Synthesis
Finished Formulation products Distributor/Buyer
Technology
View company profile
Categories
more categories Show less
Specifications
  • Details
    Labscale TFF Components
    • Cell retention device filter and single use assembly
    • High throughput membrane with a low shear environment in a closed system
    • Low shear magnetically coupled centrifugal pump
    • Single use disposable pump head
    • Primary flowmeter and optional secondary flowmeter, compatible with clamp on use
    • Feed, retentate and permeate pressure sensors
    • Touchscreen controller with integrated software for monitoring flow, pressure and TMP, with alarms and data logging included
    Typical Applications Suitable for lab scale TFF cell retention, seed train intensification, small scale perfusion, process development, filter performance studies and upstream intensification research.
    Control and Automation
    The system offers two pump operating modes. Flow setpoint mode maintains a defined flow rate by adjusting pump speed automatically, while speed setpoint mode holds a constant RPM and is mainly used for priming.
  • Selling Points
    Product Features; Product Performance; Prompt Delivery; Quality Service; Reputation; Safety and InterfaceThe alarm system includes critical, warning and informational notifications. It covers pump behaviour, flow and pressure deviations, TMP excursions and bubble detection.

    Data and Connectivity
    Data logging is handled via USB, with configurable logging intervals and file size, and files can be exported in CSV format. The system also supports screenshot capture for documentation and troubleshooting, and it can record user and system interactions when this function is enabled

  • Supplied from
    Ireland
More specifications Fewer specifications
