DuoMix® Floor-Standing Magnetic Mixing System

DuoMix® Floor-Standing Magnetic Mixing System
Product Description

The mixing system is mainly used for the mixing and storage steps during the preparation of culture media, buffer solutions, intermediates, and semi-finished products. Duoning independently developed the DuoMix® floor-standing mixing systems (50 L–3000 L) along with compatible 3D mixing bags, providing a one-stop integrated mixing solution suitable for process development and large-scale production.

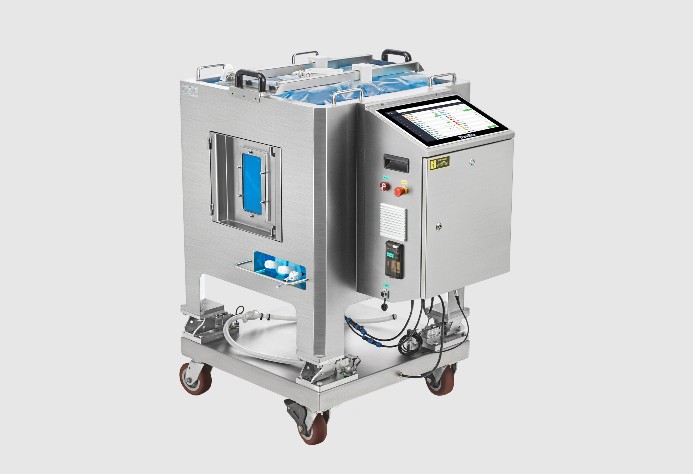

The DuoMix® floor-standing magnetic mixing system consists of a control cabinet, tank, and drive motor. The control cabinet is mounted on the tank in an integrated design, while the drive motor and magnetic coupling are located at the bottom of the tank. A weighing module is positioned above the casters. The system is compatible with commonly used impeller types and can be equipped with optional modules such as pH and conductivity sensors, temperature sensors, a temperature control unit, and a peristaltic pump. Additionally, the appearance, dimensions, and...

Read more Show less

Duoning Biotechnology

  • Country/Region:
    China
  • Founded:
    2005
  • On CPHI since:
    2024
  • Certificates:
    4
  • Employees:
    500 - 999
Company types
Biopharmaceutical company
Engineering
Primary activities
Biopharmaceutical
Laboratory Services
Laboratory, Analytical, Biotechnology Equipment
View company profile
Categories
more categories Show less
Specifications
  • Selling Points
    Ÿ Equipped with a 13'' full-color multi-touch HD screen, providing convenient user operation;

    Ÿ Features two I/O channels, allowing easy expansion of input and output functions;

    Ÿ Easy to operate:

    ú Anti-misplug quick connectors: Pumps and sensors can be connected to the DuoMix® via cables for plug-and-play operation, without complex installation, setup, or wiring;

    ú Intelligent detection of sensor disconnection;

    Ÿ Provides USB and RJ45 network interfaces;

    Ÿ Supports common communication protocols such as Modbus and OPC, enabling easy data exchange deployment;

    Ÿ The software interface is simple and user-friendly, featuring comprehensive data management, multi-level user management, and customizable user group authorizations;

  • Supplied from
    China
More specifications Fewer specifications
