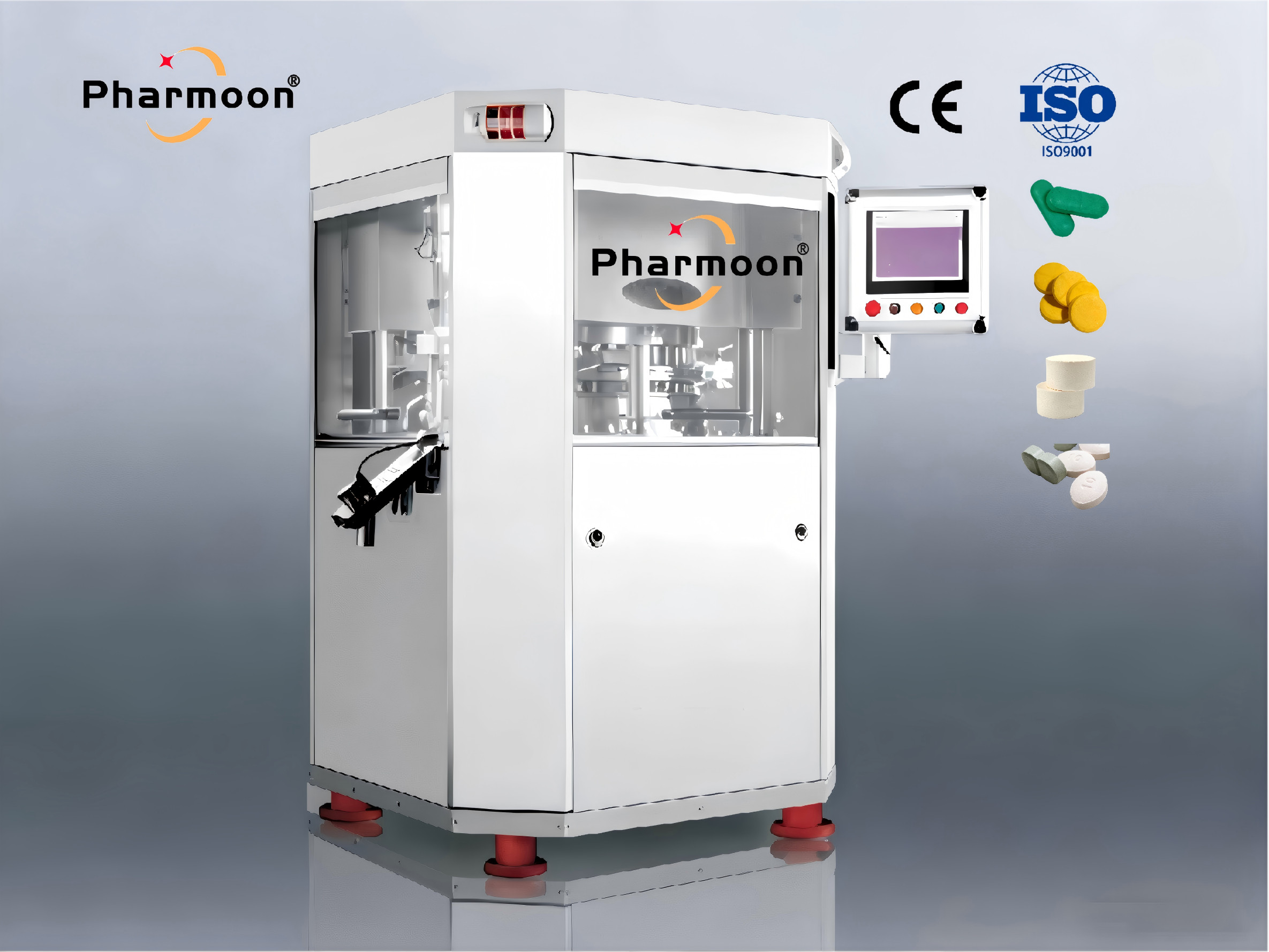

High speed rotary tablet press machine

Product Description

•High speed with large quantity punches, double press rollers, suitable for mass production.•Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so the turret surface is wear resistant. The machine conforms to GMP requirements.
•Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
•Three impellers type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
•Tooling track adopt double-side lifting structure, the punches are balanced stressed and wear resistant.

SHANGHAI PHARMOON CO., LTD

Country/Region:

China
On CPHI since:

2026
Certificates:

2
Employees:

1 - 24

Company types

Machinery and Equipment Supplier/Manufacturer

Compare Add to favorites Added to favorites

Specifications

Details

TECHNICAL PARAMETERS GZPS-45

Number of Stations(Sets) 45

Maximum output(Pc/h) 405000

Maximum main pressure(KN) 100

Max pre-pressure(KN) 20

Max. tablet diameter(mm) 25

Maximum profile long axis size(mm) 25

Max. filling depth(mm) 20

Max. thickness range(mm) 0.5-8

Maximum speed(turn/mi) 75

Motor power(kw) 11

Power supply parameter 3P 380V 50Hz

Overall size(mm) Host 1704 × 1380 × 1926

Control cabinet 750 × 550 × 1750

Weight(kg) Host 3980

Control box 240
Selling Points
•Reliable electronic control system, advanced control principle, and reliable imported components ensure the selection of various programs and interlocking protection functions. The control system can accurately monitor the entire production process.•The first waste rejection controller, the rotary encoder, the pressure sensor, the waste solenoid valve, etc. can be used to eliminate the unit of waste sheet in the state of the tablet.
•Special oil proof, dust proof and noise proof design.
Model

GZPS
Supplied from

China
