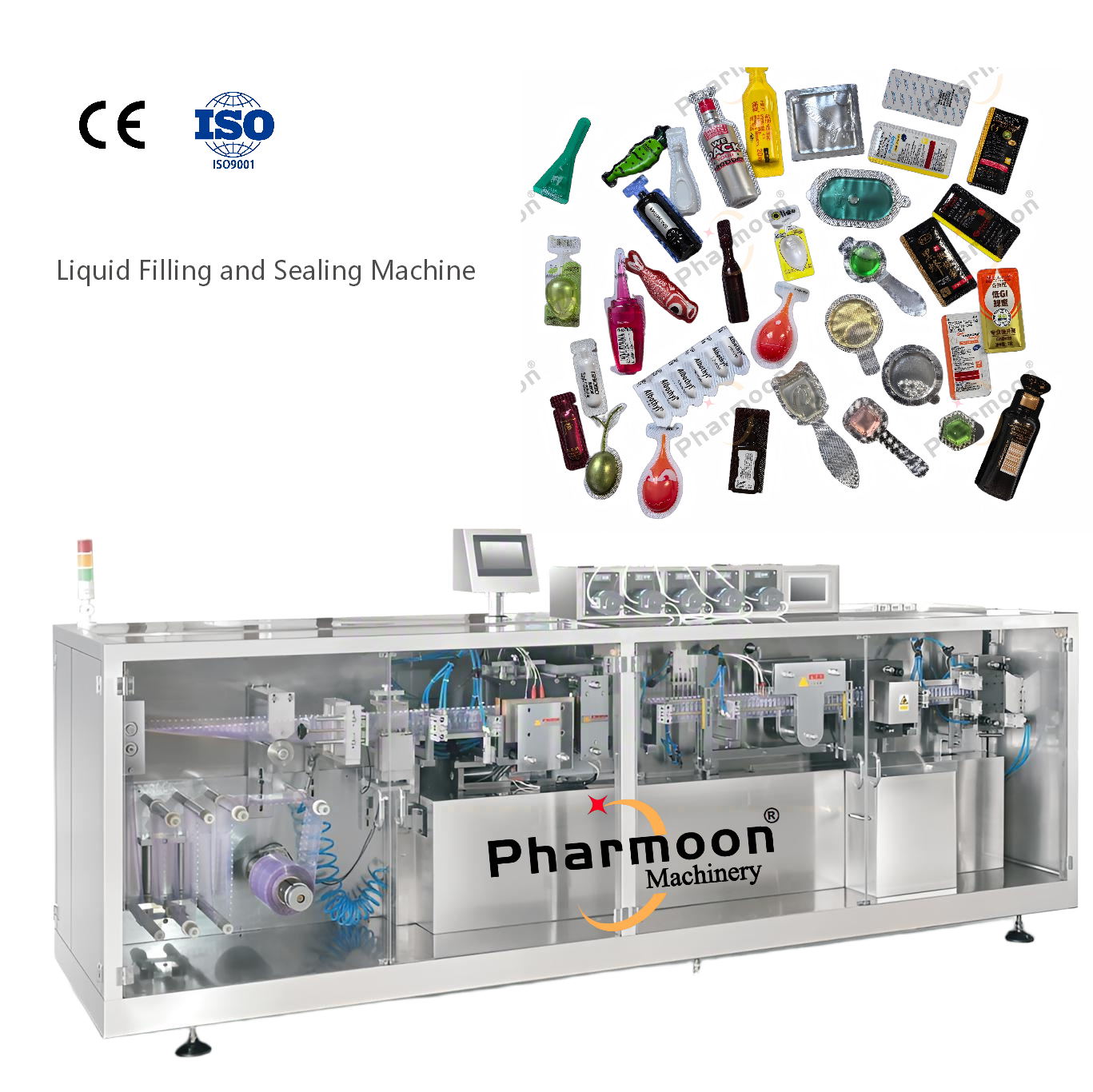

Oral Liquid Filling and Sealing Machine

Item Specification

Model ：GGS-240 P10

Max. forming depth ：12mm

Forming frequency： 180 —250 times/ Min

Packing material：PET/PE/PVC/PE/PVC/EVOH

Filling volume：1-100ml

Total power supply：22KW

Voltage：380V/50Hz

Machine weight：2000Kg

Overall dimension (L×W×H)：5200×1050×1800(mm)

Brand Name; Convenience; PERFORMANCE & CHARACTERISTICS 1.The machine adopt HC high speed, high precision motion controller, adopt servo motor control the machine running,adjusting more easy and accurate.
2.The machine can finish the following working procedure automatically starting through the program: PVC Roller release, PVC Preheating, bottle forming, filling, end sealing, Punching and Cutting.
3.The machine adopt the human-machine interface operation, operation is easy and simple.
4.The filling head has no leak though, not appear foam and overflow.
5.The contact parts with the filled liquid adopt SUS316L, conform to the GMP standard.
6.Filling system can choose peristaltic pump, rotary valve pump according to different filling material, measuring is precisely and the filling difference is small.

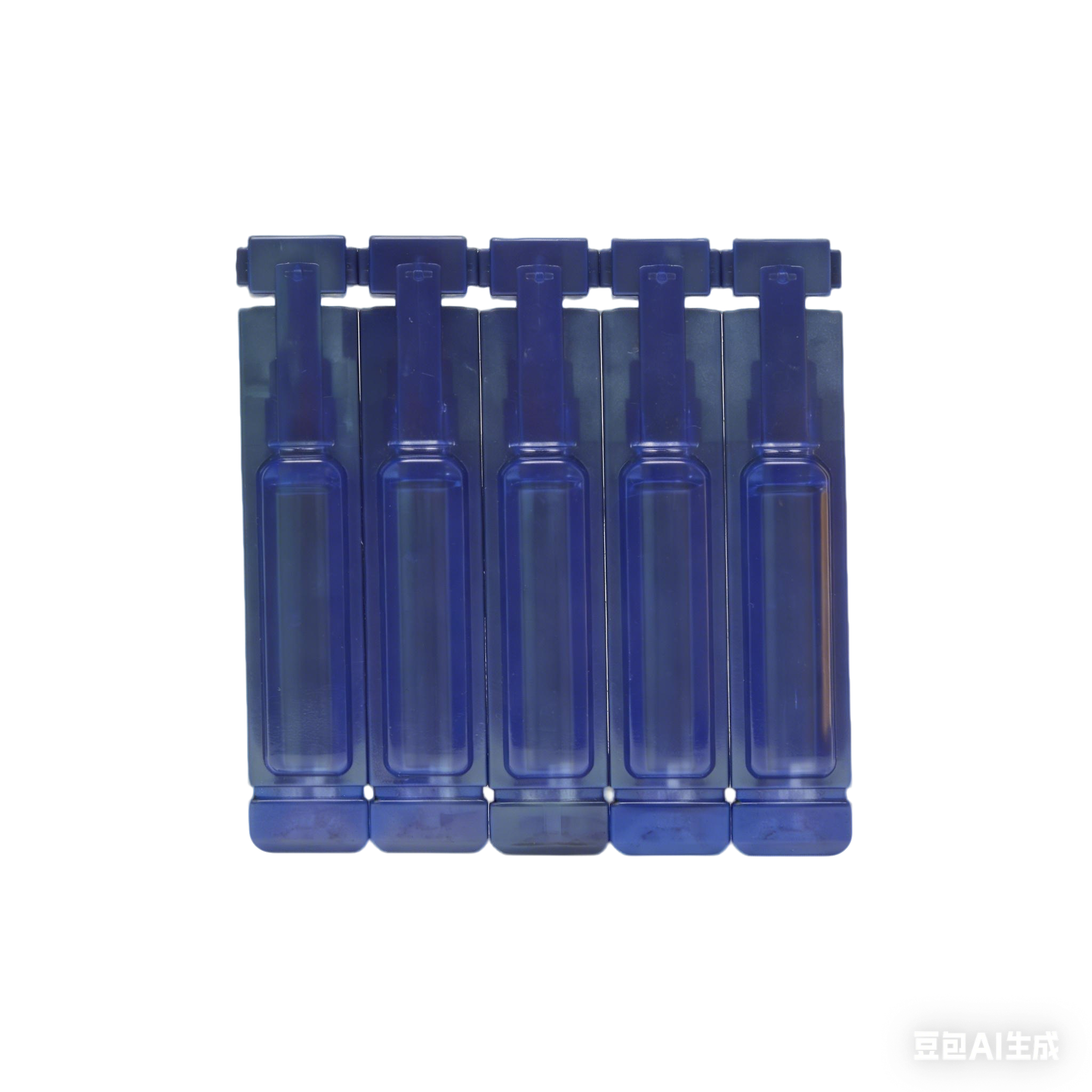

7.This model can make the stand bottle, and has the eye mark tracking system function, make the product more beautiful.

GGS-240 P10

China

Set
