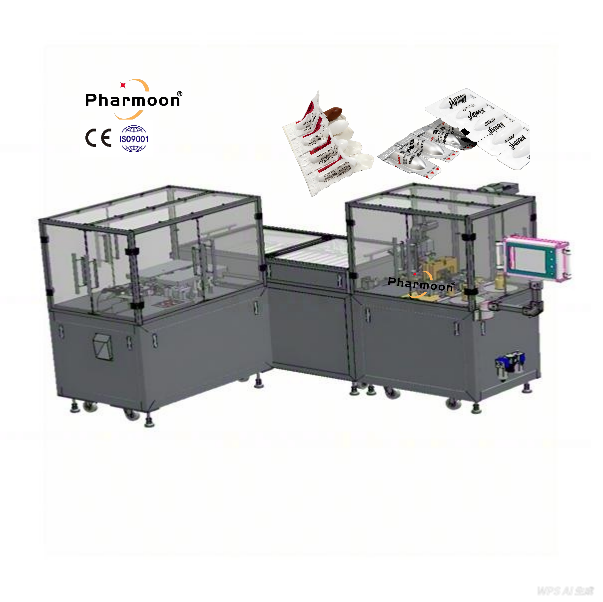

PM-Automatic Suppository Production Line

Product Description

The suppository production line is special industrial equipment used by pharmaceutical factories or hospital pharmacies for producing suppositories. This equipment can form the required suppository shell types (torpedo type, duckbill type, bullet type, etc.) from rolled packaging materials through molds, automatically fill the uniformly stirred medicinal liquid into the shells under program control, solidify the medicinal liquid through cooling, and then complete the production process of suppositories through sealing, shaping, batch number stamping and cutting.

It adopts PLC programming control and human-machine interface operation, featuring high automation, stable operation and convenient adjustment (adjustable stirring speed, adjustable cooling speed, adjustable cutting number). It is equipped with fault self-detection and alarm functions, as well as filling static elimination protection.

SHANGHAI PHARMOON CO., LTD

Country/Region:

China
On CPHI since:

2026
Certificates:

2
Employees:

1 - 24

Company types

Machinery and Equipment Supplier/Manufacturer

Compare Add to favorites Added to favorites

Specifications

Details

Parameter

Specific Specification

Output: 2000~4000 pcs/h (The actual output may vary depending on equipment model and suppository base)

Single Dose: 0.5~5ml (The specific dose can be adjusted according to requirements)

Dose Error: ±5%

Suppository Shape: Bullet, torpedo, duckbill, and other special shapes (customized as required)

Compatible Bases: Semi-synthetic fatty acid glycerides, glycerin gelatin, polyethylene glycols, etc.

Capacity of Thermostatic Liquid Storage Tank: 50L (The actual capacity may vary depending on equipment model and configuration)

Air Pressure: 0.6~0.65MPa

Overall Dimensions: 3150×2510×1680 (mm)

Equipment Weight: 1650Kg
