Product Description

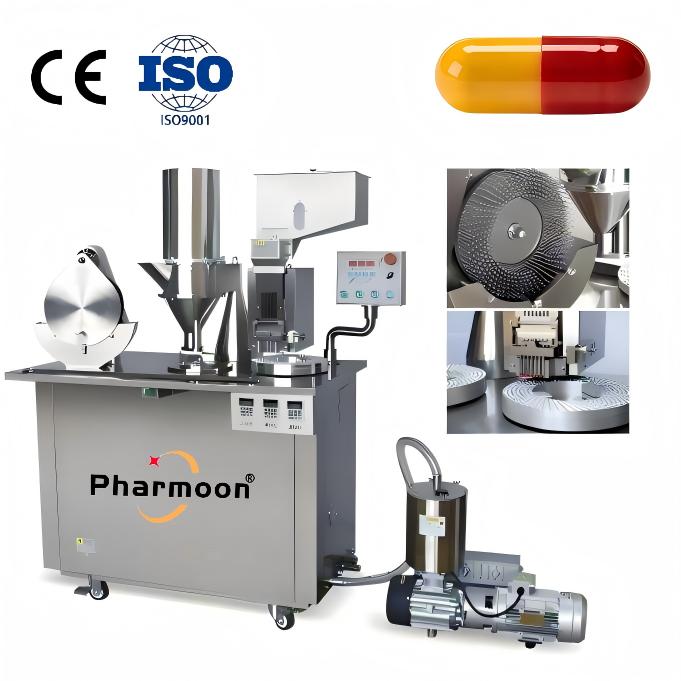

The PMS-250 Capsule Filling Machine is an upgraded, high-efficiency model developed from the legacy DT-C platform. It features simpler, more intuitive operation and improved reliability in capsule feeding, orientation, and vacuum separation compared to its predecessor. The newly designed capsule orienting mechanism uses a circumferential pil positioning system, reducing mold changeover time from the original 30 minutes to just 5–8 minutes.

SHANGHAI PHARMOON CO., LTD

  • Country/Region:
    China
  • On CPHI since:
    2026
  • Certificates:
    2
  • Employees:
    1 - 24
Company types
Machinery and Equipment Supplier/Manufacturer
Specifications
  • Details
    Main Technical Parameters Value

    Moulding change time: 5–8  (min)

    Working capacity: 25000–30000 (pcs/hour)

    Suitable capsule size: 00#–5#

    Power supply: 380V 50Hz 3Ph 4.0Kw

    Compressed air: 0.30M/min 0.7Mpa

    Vacuum pump: 40m³/h

    Overall dimension (L×W×H): 1.1m×0.7m×1.63m

    Machine weight: 380kg



  • Selling Points
    Convenience
  • Model
    PMS-250
  • Supplied from
    China
  • Measured In
    Set
