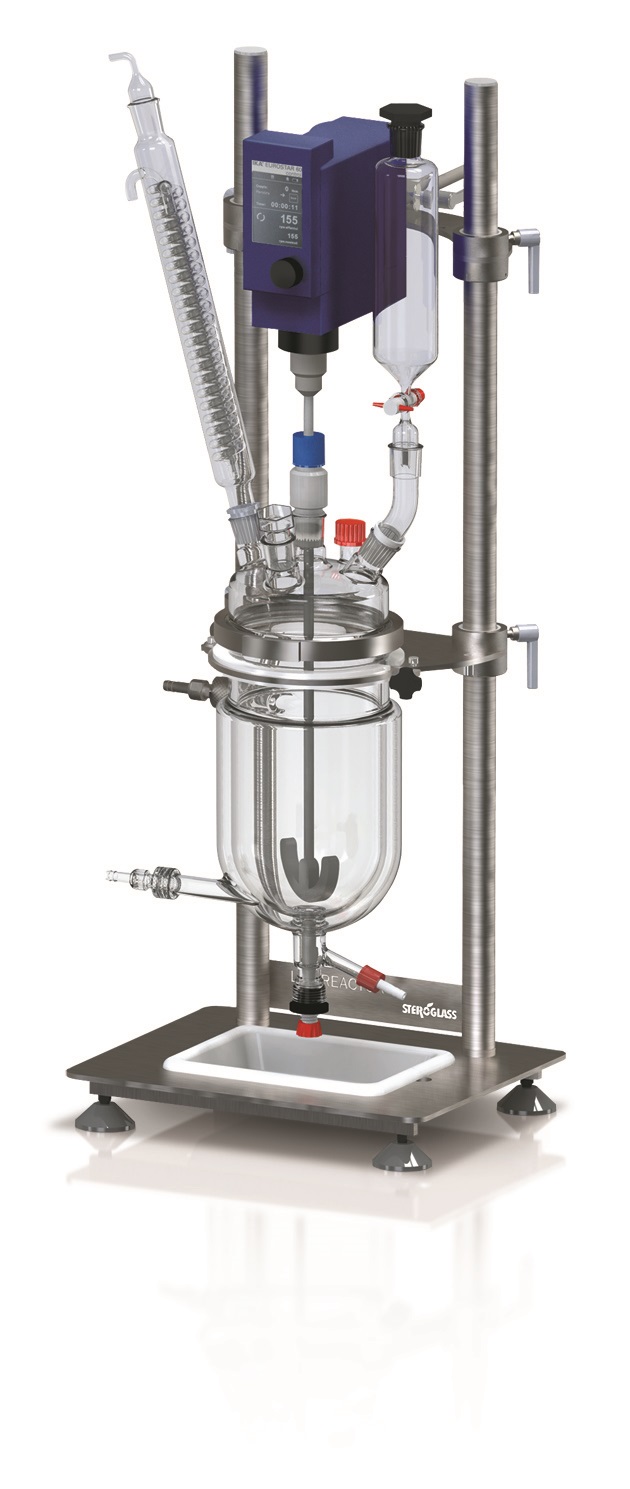

Lab reactor

The Steroglass lab reactor comes from an innovative reaction concept made with the same materials used in the chemical process. Ideal for scale down and scale up processes, it guarantees a quick return on investment for your research projects.The Steroglass Lab reactor has a stainless steel support structure that allows you to support reactors from 300ml to 7 liters in order to manage different reaction volumes in a single structure.The reactor and the lid are entirely in 3.3 borosilicate glass, the gasket between the reactor and the lid is made in PTFE as well as the bottom valve shutter, the stirring shaft and the stirring seal.The lid is equipped with 6 connections to allow maximum work flexibility.STANDARD FEATURES AND PERFORMANCES
- Interchangeable reaction vessel from 300ml to 7 lt with DN100 lid
- Interchangeable reaction vessel from 2 lt to 7 lt with DN150 lid
- Working temperature: -55°C... 180°C
- Torion valve 14- Working volume: 150ml... 7lt
- 304 Stainless steel structure
- Each version can be placed under hood
- Small footprint:
~450x350xH1065 mm
CONFIGURATION EXAMPLES:
1) Vacuum distillation with reflux head
2) Enzyme digester/reactor at constant pH
3) Lab reactor and filter reactor for crystallization studies
4) Reactor/mixer for formulations and emulsion studies


APPLICATION FIELDS
Crystallization studies, Photochemistry, Hydrolysis, Precipitation, Reactor, Mixer Reactions at constant pH, Catalytic reactions, Enzymatic reactions, Reactions under reflux, Solvent recovery Synthesis with filtration, Nanoparticle synthesis, Chemical synthesis, Biogas from biomass, Bio-reactions, Carboxylation, Dissolutions/formulations, Fractional distillations, Distillations, Dean Stark Distillations, Vacuum distillations, Emulsions, Esterifications, Vacuum evaporations
