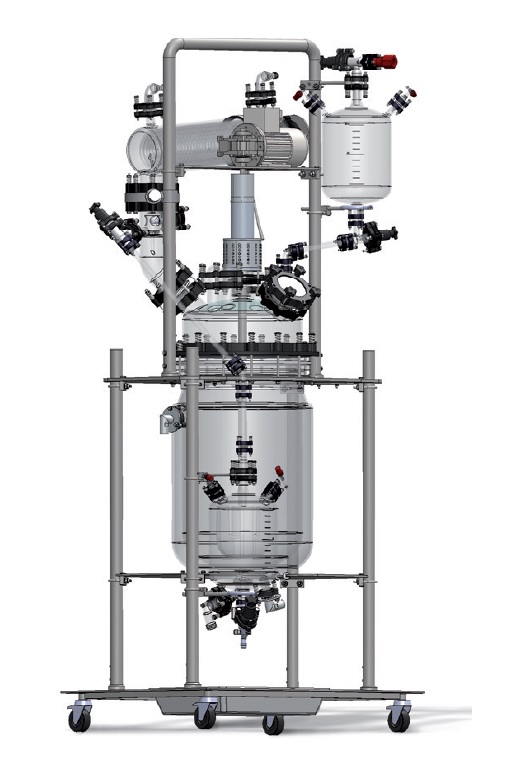

50L PHARMA JACKETED GLASS REACTORS DN400

Complete jacketed glass reactors for pharmaceutical use on our unique free standing movable frame.
Industrial design, high performing industrial stirring system and connections.

Main features:
- Gmp compliant;
- Total safety: no residues or stagnant liquids;
- For pharmaceutical use, FDA compliant (PTFE and borosilicate glass in contact with products);
- Multi-purpose;
- Complete glass piping;
- Compact design;
- It can be placed under walk-in hoods (up to 20L version)
- Atex certification available on request.

WORKING CONDITIONS:
Design Temperature : -40 °C / 180 °C
T D : 80 °C
Design Pressure : -1mbar / 0,49 bar
Max vacuum: 5mbar

REACTION GROUP
-DN400 Jacketed vessel;
50L nominal capacity;
-DN400 Glass lid 7 necks:
a) DN50 Central for stirring;
b) DN80 with closure for solid loading;
c) DN25 for liquid inlet;
d) DN50 for vapour line;
e) DN40 closed and free (on request);
f) DN40 closed and free (on request);
g) DN40 closed and free (on request);

-AISI304 Stirring shaft, PTFE-coated;
-PTFE Stirring anchor blade;
-PTFE/glass mechanical seal ATSA50/26;
-25mm discharge bottom valve, Gmp compliant.

POWER SUPPLY:
ELECTRICAL MOTOR 0,37Kw included
COMPRESSED AIR MOTOR air worn out 260l/min at 6 bar

ULTRA GMP VALVE
-Total safety
-Gmp/Pharma compliant;
-The valve completely drains leaving any stagnating liquid;
-Compact design;
-Constant valve closure pressure during temperature changes;
-Compensation of thermal expansion;
-Design helps preventing shutter head over-tightening.

Pt100 TEMPERATURE PROBE
-Product temperature can also be controlled with very low liquid levels;
-The probe is placed inside drain valve freeing up a nozzle;
-Quicker temperature reading when compared to sensor placed on lid;
-No risk of glass sensor breakages due to accidental impacts with solid suspensions;
-Pneumatic valve on request.

DIMENSIONS:
Reactor dimensions: mm1000x800x2400H
Box dimensions (fumigated wooden box) mm1500x1400x2000H

WEIGHT: APPROX 280 Kg

CERTIFICATIONS:
-Gmp certification for bottom valve;
-Machinery Directive
-User Manual
