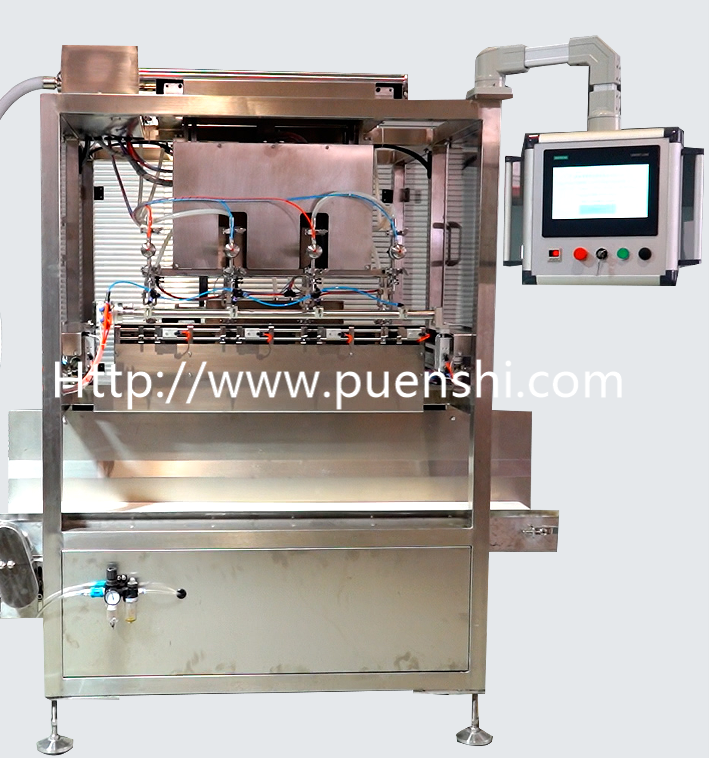

PES-A4 IV bag Filling-Sealing Machine (with 4 filling Nozzle Stations)

PES-A4 IV bag Filling-Sealing Machine (with 4 filling Nozzle Stations)

PES-A4 输液袋灌装封口机(带四个头灌装)
I. The Main Technical Parameter:

主要技术参数：

1, Power source: AC220V, 50~60Hz

电源：220伏，50~60赫兹



2, Power input: 0.8KW.(Including Vibrating Shaker)

功率：0.8千瓦 (包括振动盘)



3, Working Pressure:

Air Cylinder:  ≥0.6Mpa~0.8 Mpa

Filling(IV fluids):    ≥0.25 Mpa~0.40Mpa

工作压力：气缸 ≥0.6Mpa~0.8Mpa 液体：≥ 0.25~ 0.40Mpa

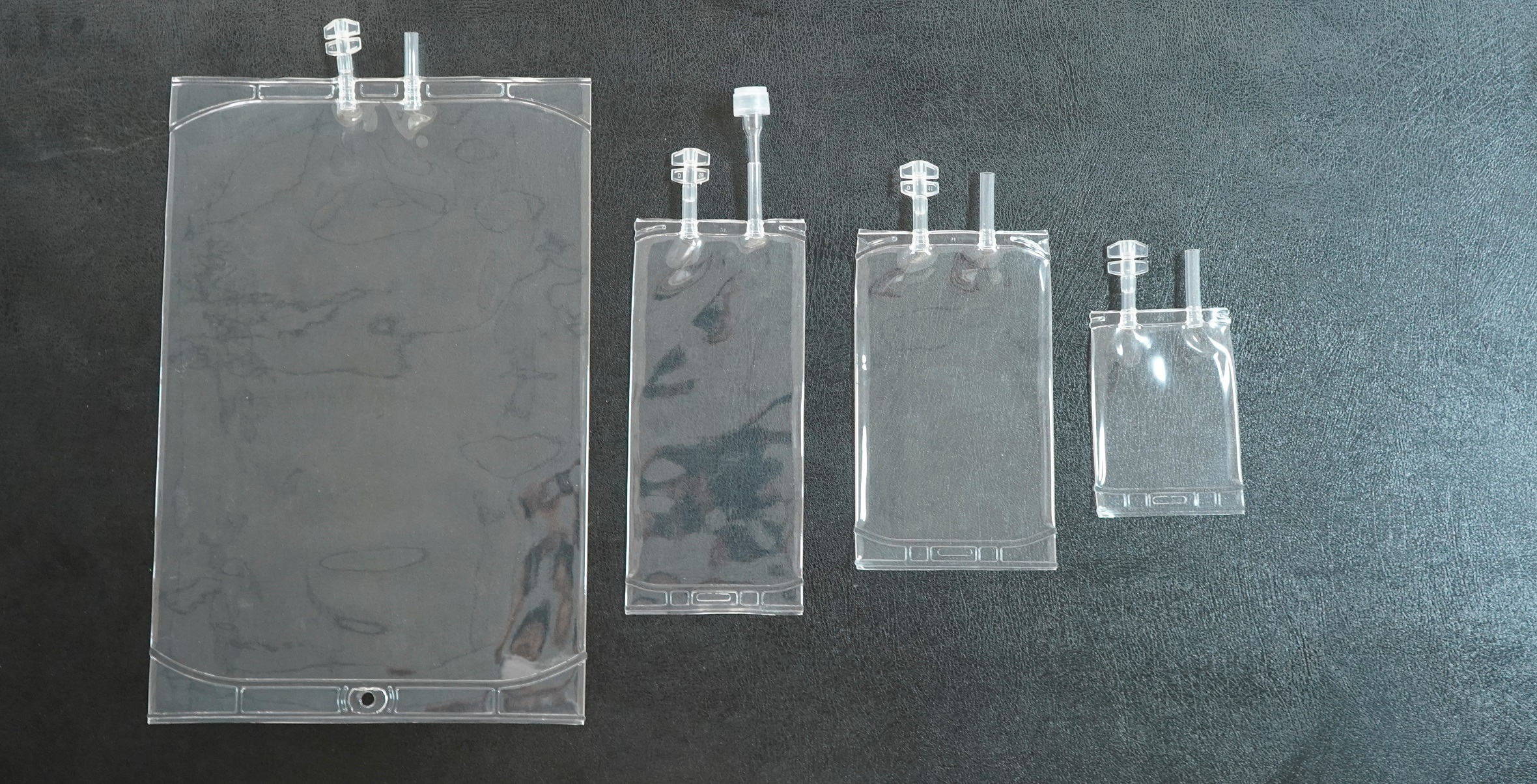

4, Filling Capacity: 100~5000ml (Adjustable)

  灌装容量范围：100~5000ml （可调节）



5, Filling Speed (with 4 Filling Heads): 2000bags/h aprro (For example: 500ml bag)



6, Filling Accuracy: ≤±1%

灌装精度：≤±1%



7, The use of Environment: Temperature: -10 ℃~65 ℃

适用环境温度：-10 ℃~65 ℃ Humidity: ≤85% 湿度：≤85%



8, Machine net weight: 700 kgs 机器净重：700 kgs



9, Whole Dimension For Machine Equipment Approximately:

. (L) 1350 × (W) 1250 × (H) 2050MM

机器尺寸：(L) 1350 × (W) 1250 × (H) 2050MM
