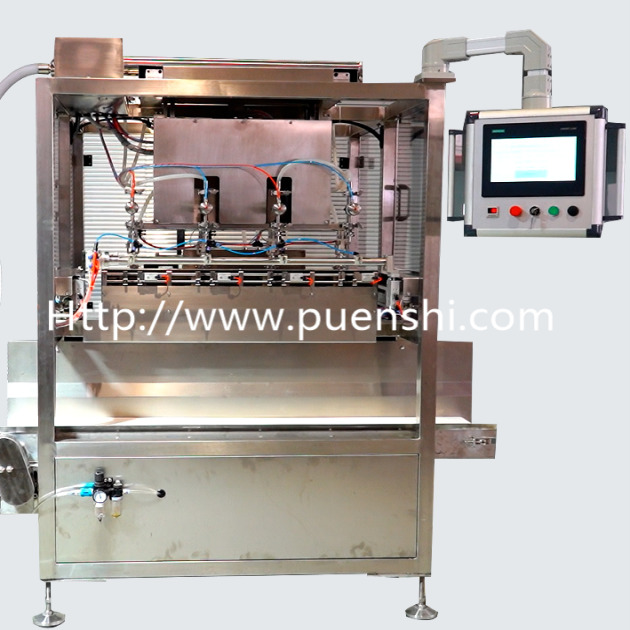

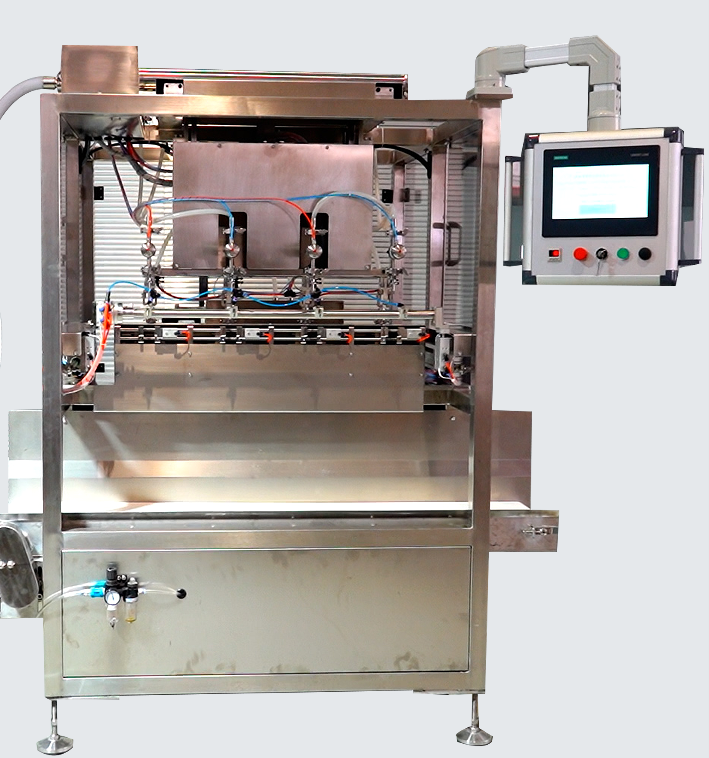

PES-A6 IV bag Filling-Sealing Machine (with 6 filling Nozzle Stations)

  • PES-A6 IV bag Filling-Sealing Machine (with 6 filling Nozzle Stations) 1
  • PES-A6 IV bag Filling-Sealing Machine (with 6 filling Nozzle Stations) 2
  • PES-A6 IV bag Filling-Sealing Machine (with 6 filling Nozzle Stations) 3
Product Description

 Main Characteristics: 设备特性：

1.  Small used space;. It saves plant space. And easy to Installation.

占地面积小，节省车间空间, 安装方便快捷。

2.   Continuous putting bags by worker is for saving operation time, Improve

efficiency.  工人可连续上袋，操作时间少，灌装效率高，

3.    Each filling Station can be controlled Individually by computer Program and Easy to be operated by  PLC, Touch screen. To satisfied with customer’s various of filling requirement. 每个灌装工位可由电脑程序独立控制，PLC触摸屏简易操控，以满足客户不同灌装需求。
4.  High filling accuracy.  Each filling Nozzel (Head) filling accuracy ≤1±%

高精度灌装，误差范围控制在≤1±%

 5.  Filling capacity is within Large extent. From 100ml to 3000ml(adjustable)。

灌装容量范围广，从100ml~3000ml（可调）

Read more Show less

ChangZhou PUENSHI Intelligent Equipment Co., Ltd

  • Country/Region:
    China
  • On CPHI since:
    2024
  • Certificates:
    1
  • Employees:
    1 - 24
Company types
Machinery and Equipment Supplier/Manufacturer
Primary activities
Contract Manufacturer
View company profile
Categories
more categories Show less
Specifications
  • Details
    I. The Main Technical Parameter:

    主要技术参数：

    1, Power source: AC220V, 50~60Hz

    电源：220伏，50~60赫兹

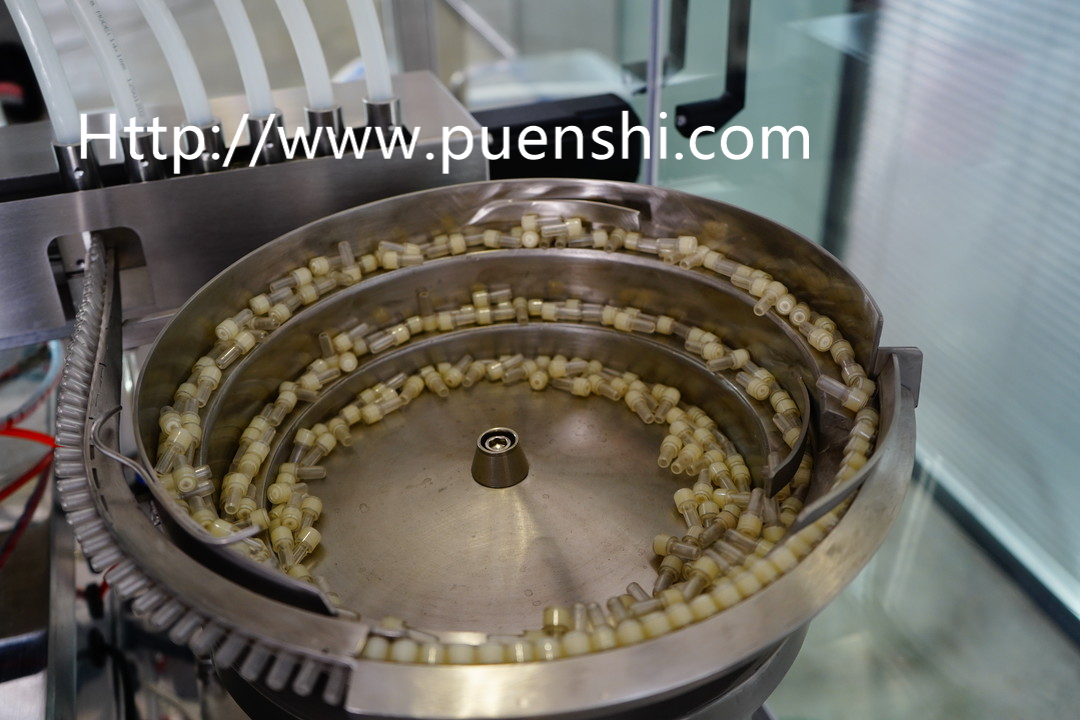

    2, Power input: 0.8KW.(Including Vibrating Shaker)

    功率：0.8千瓦 (包括振动盘)



    3, Working Pressure:

    Air Cylinder:  ≥0.6Mpa~0.8 Mpa

    Filling(IV fluids):    ≥0.25 Mpa~0.40Mpa(Keep a stable Pressure)

    工作压力：气缸 ≥0.6Mpa~0.8Mpa 液体：≥ 0.25~ 0.40Mpa

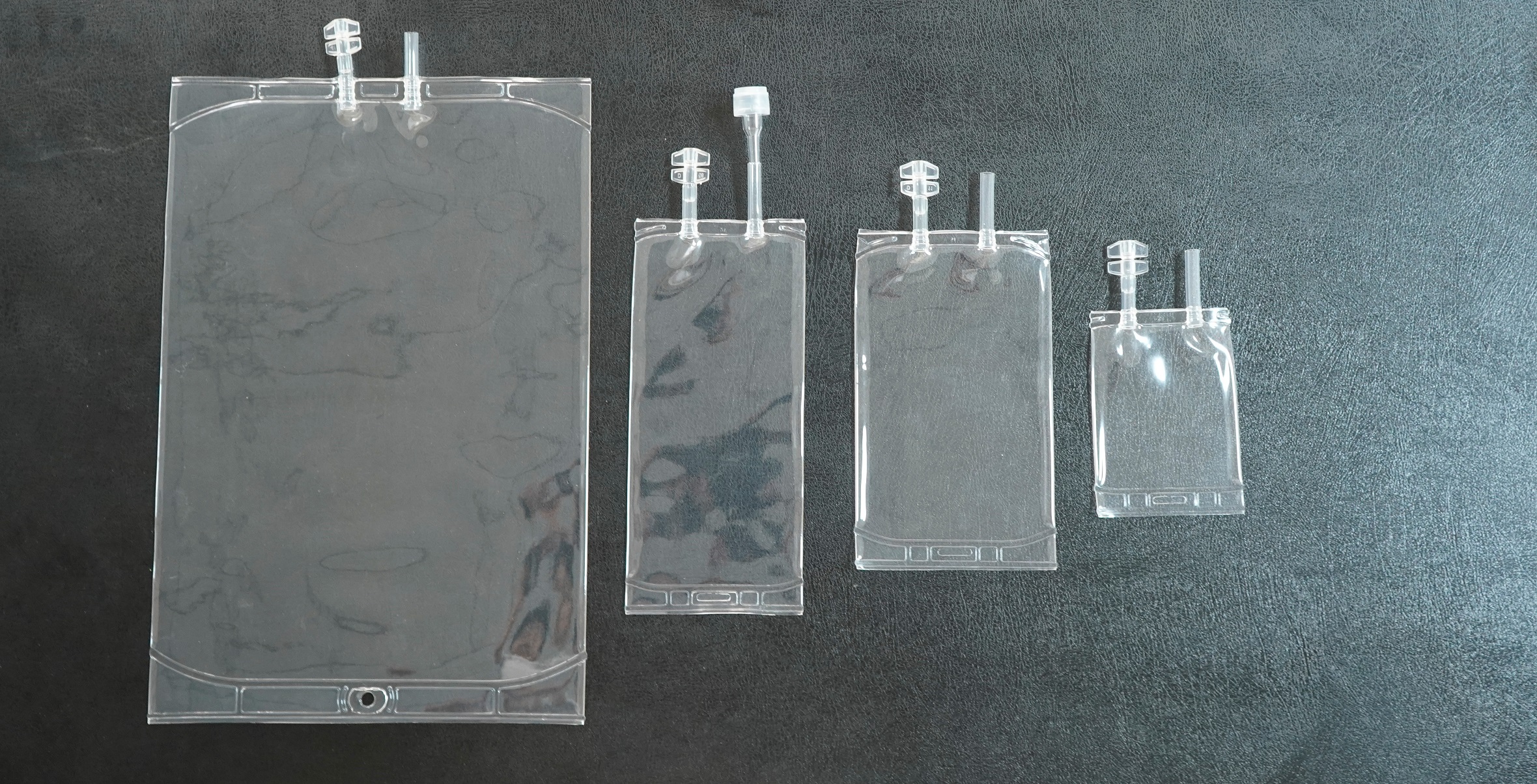

    4, Filling Capacity: 100~3000ml (Adjustable)

      灌装容量范围：100~3000ml （可调节）



    5, Filling Speed (with 6 Filling Heads): 2500bags/h aprro (For example: 250ml.500ml IV bag). 1800 Bags/h aprro (For example: 1000ml IV bag).



    6, Filling Accuracy: ≤±1%

    灌装精度：≤±1%



    7, The use of Environment: Temperature: -10 ℃~65 ℃

    适用环境温度：-10 ℃~65 ℃ Humidity: ≤85% 湿度：≤85%



    8, Machine net weight: 850 kgs 机器净重：850 kgs



    9, Whole Dimension For Machine Equipment Approximately:

    . (L) 1500 × (W) 1250 × (H) 1950MM

    机器尺寸：(L) 1500 × (W) 1250 × (H) 1950MM

  • Selling Points
    Packaging; IV Solution products, IV bag filling machine, Infusion bag filling machine,
  • Model
    PES-A6
