Pharma Reaction System

Pharma Reaction System
Product Description

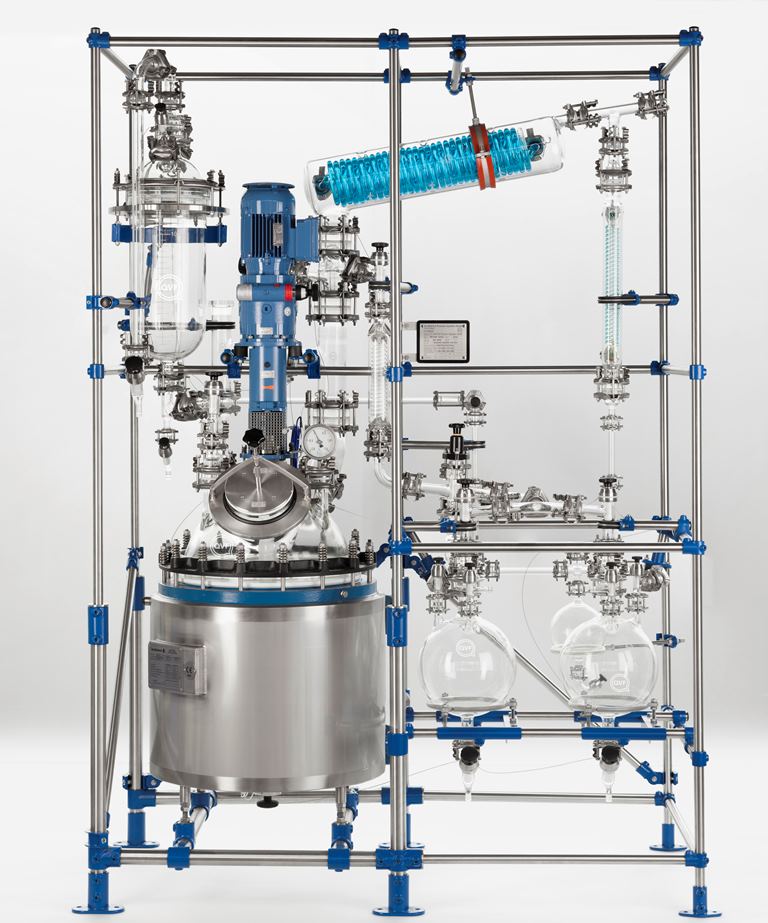

The Pharma Reaction System is designed in a compact layout for standardized capacities from 16 to 63l. Systems combining a glass-lined vessel with a glass dome for perfect observation of the process can be realized up to 630l.

It is specially designed for two process stages: reaction and distillation. The reaction stage operates under total reflux whereupon the solvent can be distilled off in the concentration phase. Both processes can be operated at slightly overpressure (+0.6barg) or vacuum.The materials of construction used are borosilicate glass 3.3, glass-lined steel and PTFE.


The basic version of the Pharma Reaction System can be modulary expanded. The following options are available:

  • Hydraulic lifting device for the reaction vessel
  • Phase separator
  • Electronic speed indicator
  • High pressure version
  • Coated glass components
  • Weighting cells for reaction, feed and distillate vessels
  • Double-acting mechanical seal
  • Anchor, turbine and propeller type stirrers
  • Process control engineering

Read more Show less
