Reactors

Reactors for chemical synthesis for production of API’s and chemical specialties manufactured in carbon steel glass-lined suitable for anticorrosive applications.
Glass lined reactors are at the core of production activities wherever a reaction is run under aggressive acid conditions. Our state...

Operations around chemical reactors, filters, centrifuges and dryers need to be executed under containment conditions when handling HPAPI or intermediates. Depending on process equipment dimensions, the isolator system is designed fully enclosing the equipment or only the parts where product transfer occur...

Magtech Reactor available in sizes for KILO lab -2 Ltrs to commercial production up to 100 KL

Rotary Vacuum Paddle Dryer (RVPD) is used to obtain dry powder from a wet cake or slurry. The drying is carried out in a batch process under vacuum, making this one of the most economical solutions for drying. RVPDs are ideally suited for low temperature drying, solvent recovery, mixing, blending and e...

UV Light Blocking Tyvek Equipment Covers are designed to keep cleaned pharmaceutical equipment and supplies clean and protected from external sources of contamination while also providing in-process protection to light sensitive biotech products.

The sintered mesh conical filters are created by multi-layer sintered woven mesh through adopting a integrated mould forming technology,resulting in significantly more precise dimensional tolerances compared to the traditional segmented welding types. The maximum attainable diameter is 2300mm.&nb...

The ANFD barrier isolator enables the discharge of highly active products from filter dryers and heel removal for complete product recovery. The isolator is directly supported by the filter dryer installed on a flange fixed to the discharge hatch. All operations are carried out through glove ports fitt...

Mechanical Design

» ASME Sec. VIII div.1

» Seismic and wind loads calculations according to the

pertinent local rules

» Design of internals: Trays, supports and packings

> Design of platforms, ladders, sliding guides and
qq...

Heat Exchangers for reactor over head condensers suitable for corrosive solvents.
A heat exchanger is a pressure equipment that facilitates exchange of heat between two fluids that have different temperatures.Heat exchangers are used in many engineering applications, such as chemical processing syste...

The sintered mesh filter elements are created by multi-layer sintered woven mesh. Thanks to the surface filtration material, the sintered mesh filter discs are very easy to clean and backwash. The material also exhibits exceptional resistance to corrosion due to its composition of stainless ...

The disc filters are manufactured by multi-layer sintered mesh. Owing to the surface filtration material, the sintered mesh filter discs are very easy to clean and backwash. The material also exhibits exceptional resistance to corrosion due to its composition of stainless steel and other spe...

Turn key plant for reaction synthesis including design and supply of main process equipment such as synthesis reactor, vapor line, condenser, dosing and storage vessels, process and utilities piping, control valves, steel structure, platform and ladders. Design competences together with manufactur...

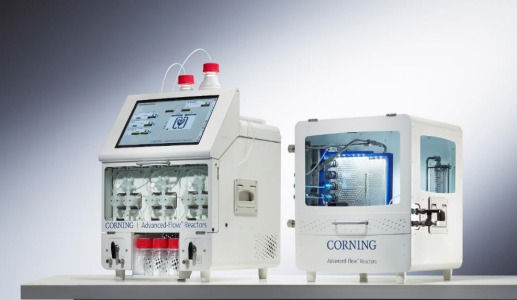

• Plug and play system • High chemical durability due to a metal-free system
• Outstanding mixing & heat exchange: featuring company’s  HEART-cell design
• Up to 2 fluidic modules
• Optional cooling coil
• Back pressure regulator for pressure control  ...

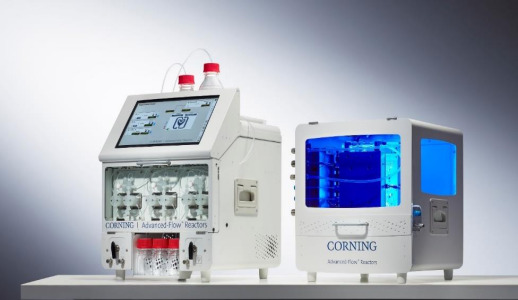

• Plug and play system • High chemical durability due to a metal-free system
• LED panel control through dosing module touch screen interface
• Tunable LED irradiation source, with 6 different wavelengths
• High intensity LED lighting
• Efficient light penetration with both sides of gl...

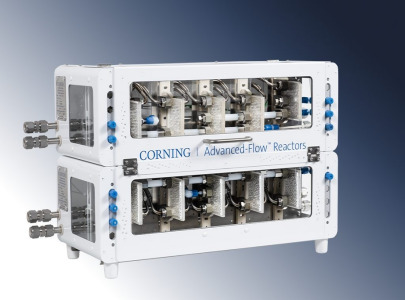

• Plug and play system• High chemical durability due to a metal-freesystem
• Outstanding mixing & heat exchange: featuringCorning’s HEART-cell design
• Low hold-up
• Highly flexible for multiple step reactions
• Multiple temperature zones
• Up to 10 glass fluidic modules
• Seamless sc...

Homogeniser with 2nd product supply connection as inline devices or integrated in our BECOMIX homogenizing mixers for emulsions, suspensions, shampoos, ointments, pastes, gels, etc.

For retrofitting and upgrade of existing systems.

Powder dispersion.

Hot/Cold-production.

...

A spray dryer is a device used to convert liquids containing dissolved or suspended solids into powder of required specifications by evaporation of liquid with hot air. Spray drying is a highly efficient drying method with possibility to have close control over the particle size, bulk density and moisture ...

spray coolers are used for obtaining powders from molten products like oils, fats, glycerine etc. In the process of spray cooling the products in molten form are sprayed through nozzle or rotating disc atomiser in a cooling chamber. This sprayed material is brought in contact with either ambient air or coo...

THALETEC offers a ein extensive program of standardized and customized designs to meet your requirements and exceed your expectations.

Typical designs of glass lined reactos are

THALETEC manufactures tanks that are standing, lying or any other customized design. The maximum manufacturable volume is 110,000l (30 gal.).

For special conditions THALETEC offer also tanks assembled with agitators. Corresponding drives you find in the section Agitation technology.
