SYFPAC® DUO

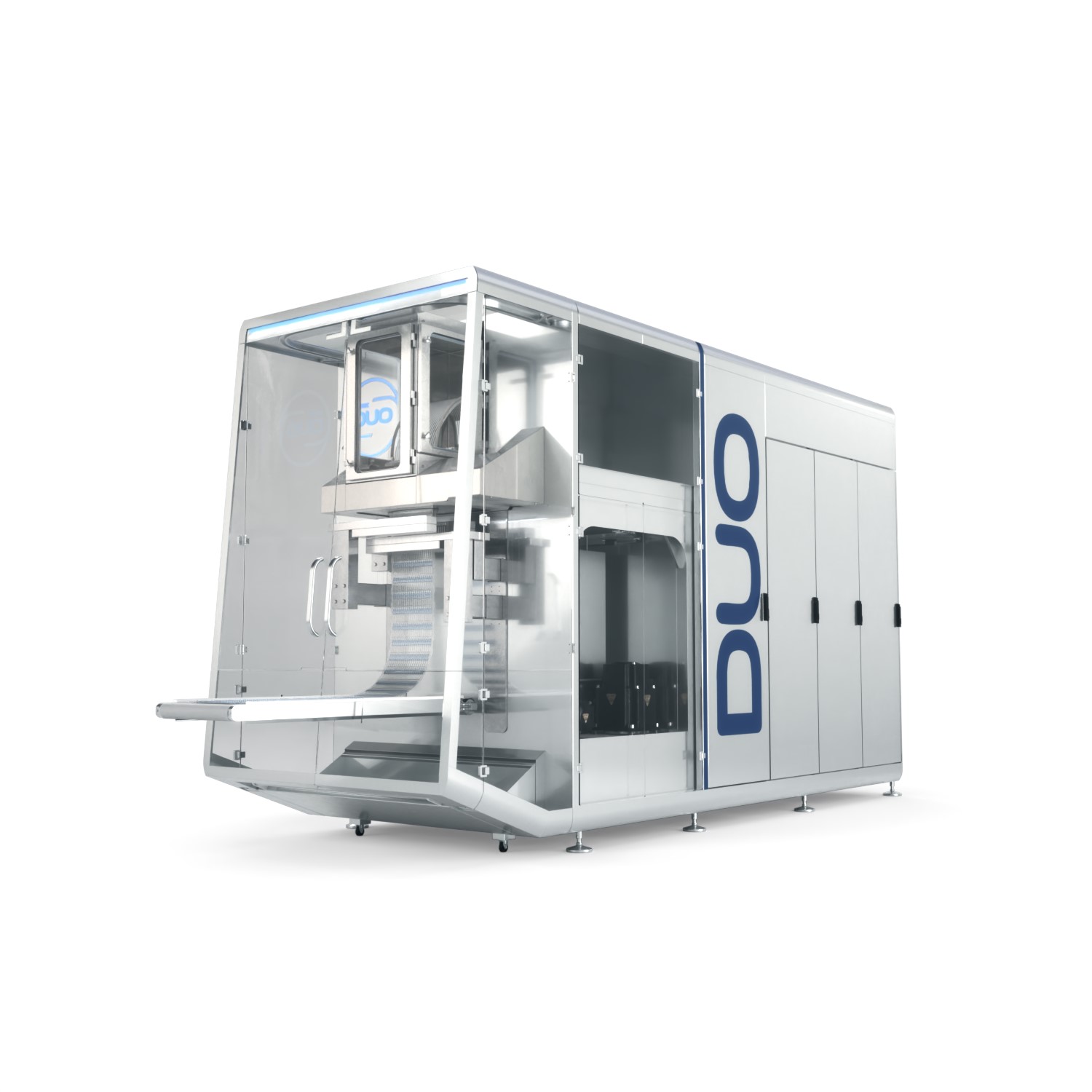

  • SYFPAC® DUO 1

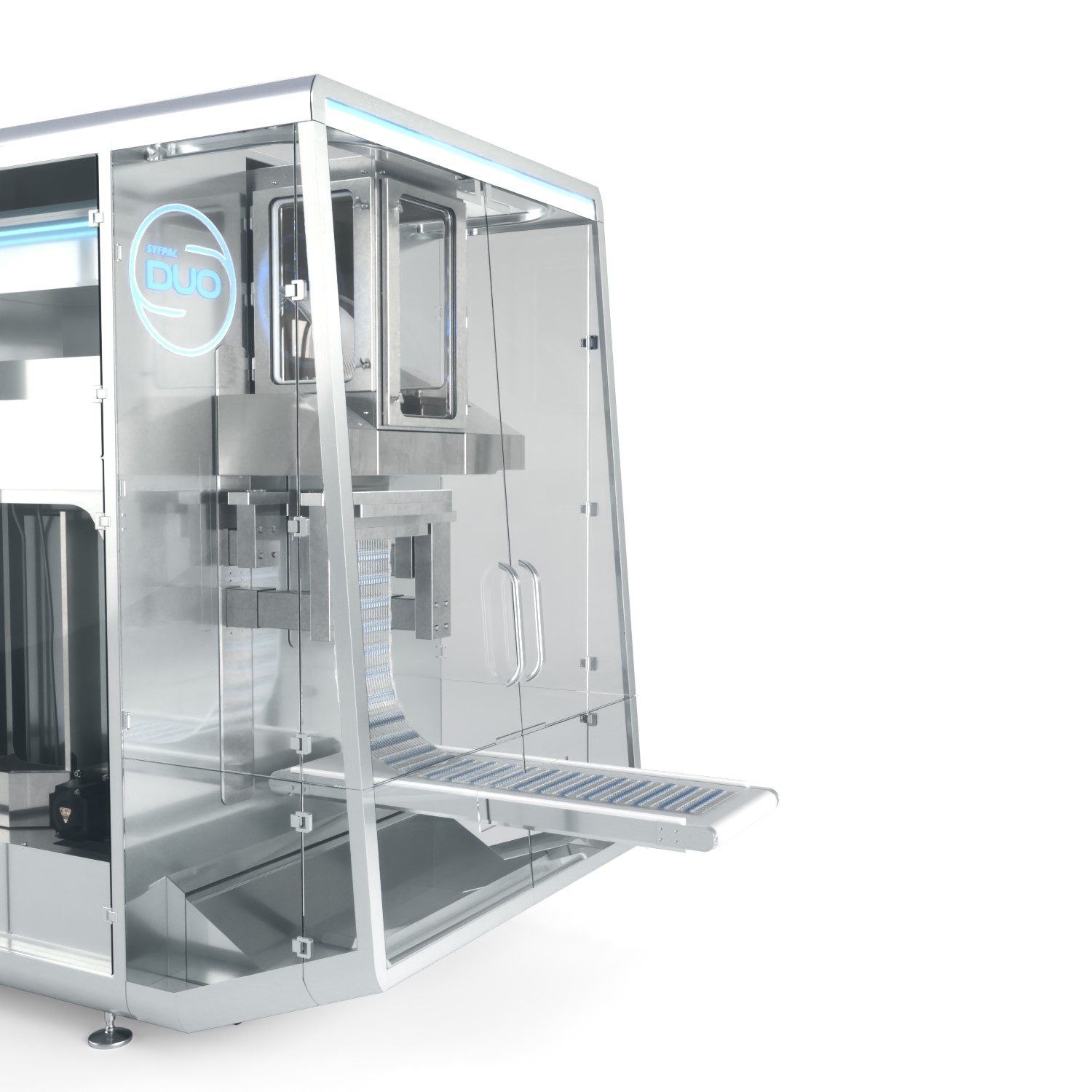

  • SYFPAC® DUO 2

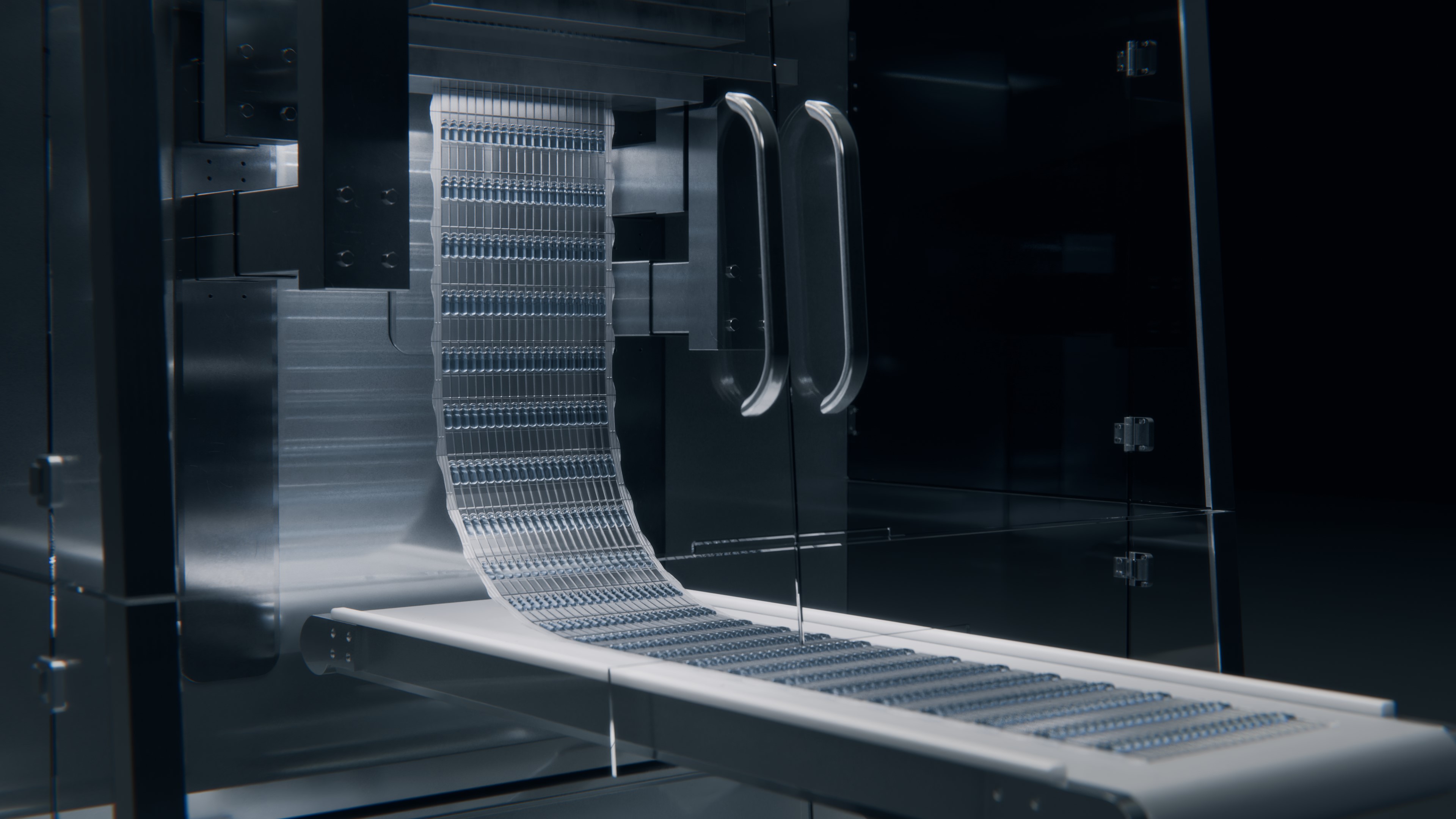

  • SYFPAC® DUO 3
Product Description

The Fastest, Smallest, Safest Blow Fill Seal machine
A revolutionary closed parison BFS platform to combine container formation, aseptic filling and sealing into one continuous operation.
For the first time, including continuous particle monitoring in a closed parison, exceeding EU GMP Annex 1 requirements.
Productivity from 4k to 40k units/h, in the same machine.
Tiny footprint: only 6 m² of Class C cleanroom Fill volume ranging from 0,2 ml up to 50 ml.
Flexibility in polymer choice: PP, HDPE, LDPE on the same machine with a simple recipe change.
Close to zero waste: down to 6% scrap.
Mould change in less than 10 minutes.
Insertion technology for BFS aseptic production of prefilled syringes.
Fully electric, with remote automatic startup and a hygienic design that allows for processing of many pharmaceutical solutions, including temperature sensitive products like vaccines.

Read more Show less

BREVETTI ANGELA SRL

  • Country/Region:
    Italy
  • Founded:
    1977
  • On CPHI since:
    2017
  • Certificates:
    1
  • Employees:
    50 - 99
Company types
Machinery and Equipment Supplier/Manufacturer
View company profile
Categories
more categories Show less
Specifications
  • Supplied from
    Italy
More specifications Fewer specifications

BREVETTI ANGELA SRL

  • Country/Region:
    Italy
  • Founded:
    1977
  • On CPHI since:
    2017
  • Certificates:
    1
  • Employees:
    50 - 99
Company types
Machinery and Equipment Supplier/Manufacturer
View company profile

More Products from BREVETTI ANGELA SRL (1)

  • SYFPAC® LVP - BLOW FILL SEAL MACHINERY

    Product SYFPAC® LVP - BLOW FILL SEAL MACHINERY

    SYFPAC® LVP is Brevetti Angela machine for aseptic filling of Large Volume Parenterals with the Blow Fill Seal (BFS) technology.It is designed for the production of plastic containers from 50ml to 1000ml, and up to 2500ml for special applications. Starting from the polymer granule, the container is formed,...

BREVETTI ANGELA SRL resources (1)

  • SYFPAC® DUO BLOW FILL SEAL MACHINE

    Brochure SYFPAC® DUO BLOW FILL SEAL MACHINE

    The revolutionary Blow Fill Seal machine for production of Small Volume Parenterals and Prefilled SyringesDiscover how SYFPAC DUO can boost pharmaceutical aseptic production with its innovative closed parison concept, which for the first time allows continuous particle monitoring in compliance with Annex1.
    See how its tiny dimensions and special design only require a 6m² cleanroom, yet granting the highest production up to 40.000 units per hour.
    Discover the extreme flexibility in upgrading the system, changing volumes, moulds, polymers with almost no downtime.
    Go through the many available applications, including prefilled syringes thanks to the special insertion technology on a closed parison Blow Fill Seal system.
