PW / WFI Storgae and Distribution System

PW / WFI Storgae and Distribution System
Product Description

STORAGE SYSTEM

We are among the top most organization in offering a premium quality range of PW/WFI Storage Tank to our clients. We are the prominent manufacturer and supplier of these quality range. Our products are widely demanded and appreciated by our premium clients. These products are available at market leading price.

Specifications:


·         All storage tanks comply with ASME (BPE) and ASME section VIII, Div 1 guidelines and manufactured as per cGMP guidelines

·         Single / dual jacketed and limpet tanks are provided with suitable insulation and AISI 304 stainless steel cladding

·         Option of Industrial steam (bolter steam), electrical immersion heaters / ceramic band heaters

·         All contact parts are made of AISI 316L stainless steel and non-contact parts are made of AISI 304 stainless steel

·         All wetted surfaces are internally electro-polished to 0.4 Ra or less

·         The capacity vanes from 100 lit. to 20,000 lit.Sterinox offers its customers various possibilities for the integration and execution of PW and WFI water generation, storage and distribution projects or pure steam networks under the “turnkey” modality.

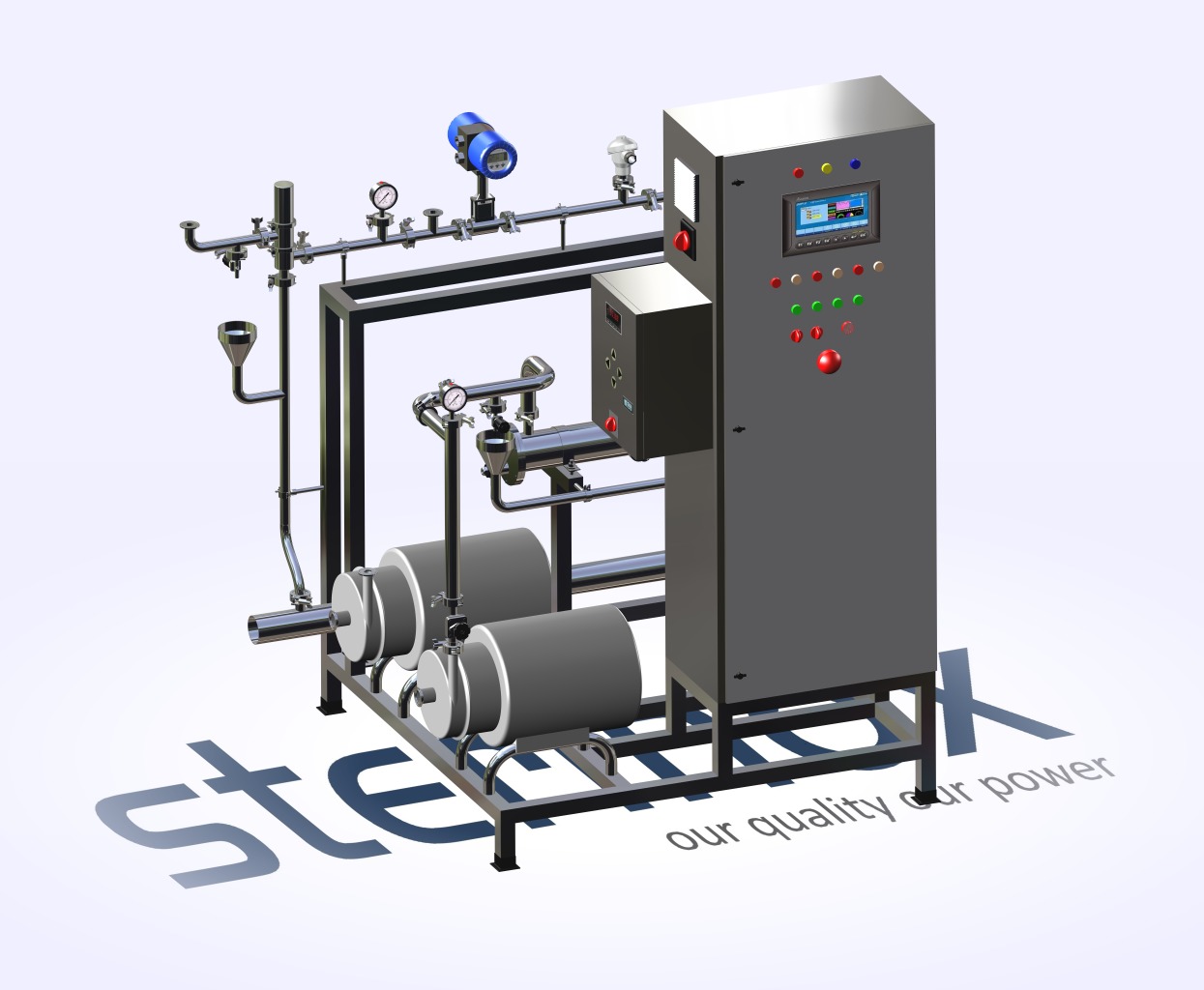

Distribution System
Distribution skids are perfectly designed for the production of purified water or water for injections (WFI) depending on a case by case basis. The design of the skid will be adapted to the peak demand, the isometrics of the piping system, the number of points of use, current or future needs, etc.

For the design and construction of the entire plant, all the necessary pharmaceutical guides for validation and applicable technical standards are followed (GMPs, USP, DIN EP, ASME, ISPE, etc.).
