Electrochemical reactor

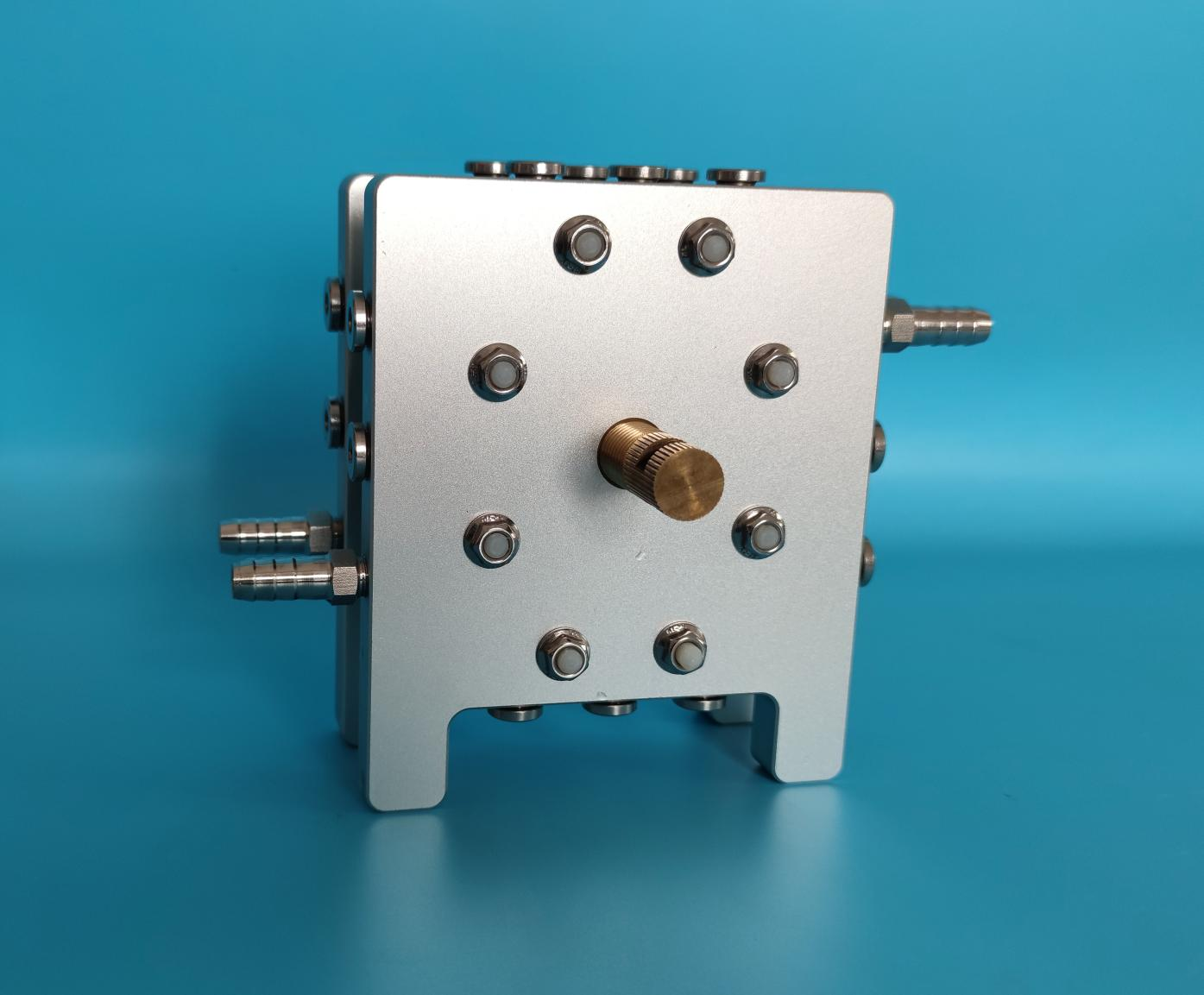

  • Electrochemical reactor 1

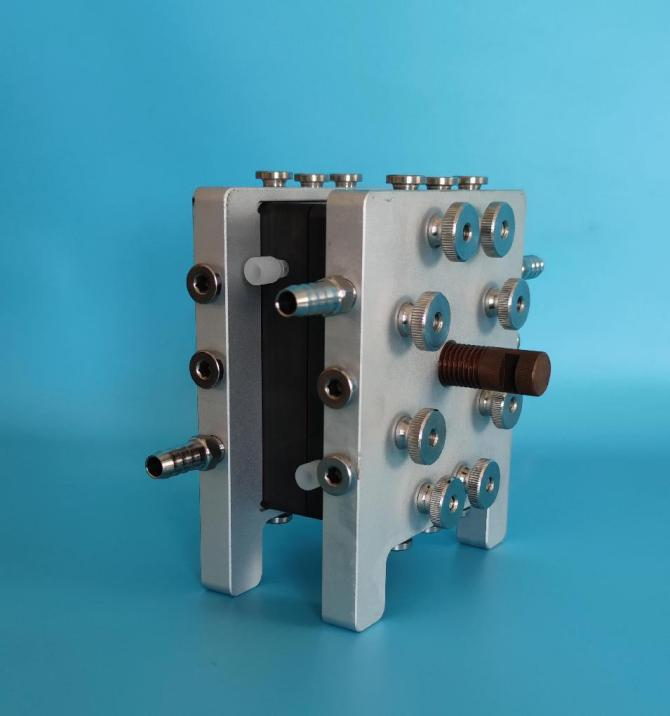

  • Electrochemical reactor 2

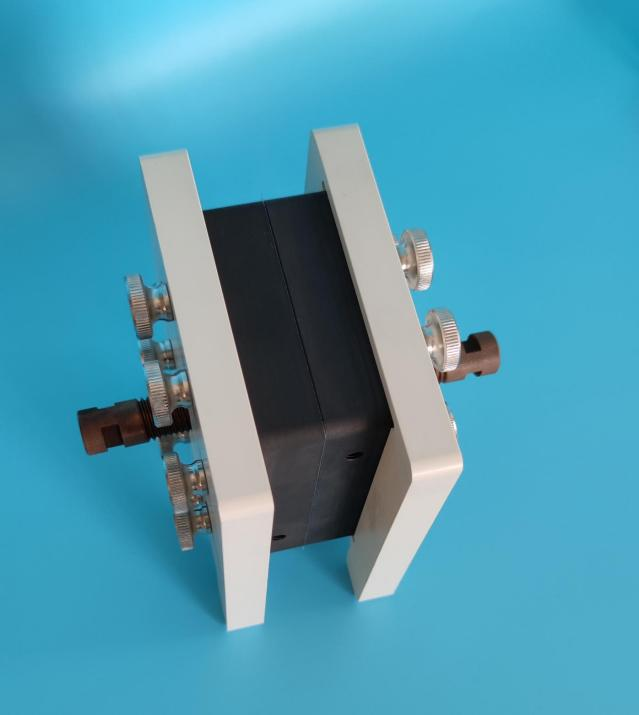

  • Electrochemical reactor 3
Product Description

Electrochemical synthesis is the use of electrical energy to drive chemical change; using electricity to replace toxic and costly chemical reagents. This allows cleaner and cheaper syntheses with greater production efficiency and at reduced cost.
In electroorganic synthesis, redox chemistry is carried out by interaction of the starting materials with the electrodes of the electrochemical cell. As electrons are essentially the reagent utilized for the redox process, the use of large amounts of often hazardous oxidizing or reducing reagents can be avoided. Reactive intermediates can be generated under relatively mild conditions (often room temperature) without producing any additional waste. Electrochemical reactions are therefore considered safe and provide some of the greenest and cost efficient synthetic strategies.


Read more Show less

LARYEE TECHNOLOGY CO.,LTD.

  • Country/Region:
    China
  • Founded:
    2006
  • On CPHI since:
    2026
  • Certificates:
    1
  • Employees:
    100 - 249
Company types
Machinery and Equipment Supplier/Manufacturer
Primary activities
Laboratory, Analytical, Biotechnology Equipment
View company profile
Categories
more categories Show less
Specifications
  • Details
    Organic electrochemistry deals with the synthesis of organic compounds by electrochemical redox reactions. Its origin can be seen in the Kolbe-electrolysis in 1849.  Electrochemical synthesis methods have the outstanding advantage to allow reactions without "substantive" reagents, which otherwise would have to be separated in their used form from the reaction products. Because of the large oxidative and reductive potential range being directly accessible by electrochemical methods, they are in particular of great interest for industry for the production of organic compounds. Prominent examples are the production of adiponitrile, sebacic acid or esters thereof, hydroquinone, benzaldehyde, 4-aminophenol, piperidine, 2,5-dimethoxydihydrofuran, glyoxylic. acid and organic fluorine compounds.

  • Selling Points
    Product Features; Product Performance; Quality Service; Sustainability; ▲The CM-ELFlow continuous flow electrochemical reactor is a more convenient and simple electrochemical reactor;

    ▲Special heating and refrigeration board design (water cooling joints, electrode heads);

    ▲It adopts slow-moving wire-cutting technology to form, which can control the electrode temperature -30-200 degrees Celsius;

    ▲Simple clamping, integrated design of electrode plate and chip, higher cost performance;

    ▲ The current collector unit is omitted, the electrode spacing is 0.025-2mm on demand, and the chip pool depth is 0.05-2mm on demand. It can realize a single flow cell unit and a rectifier flow cell, and realize a single electrolytic cell reaction and a double electrolytic cell reaction;

    ▲Hand-tight assembly without tools, insulated screw connection, breakdown voltage up to 20kv.


  • Model
    CM-EL
  • Supplied from
    China
  • Measured In
    piece
More specifications Fewer specifications
