Product Description

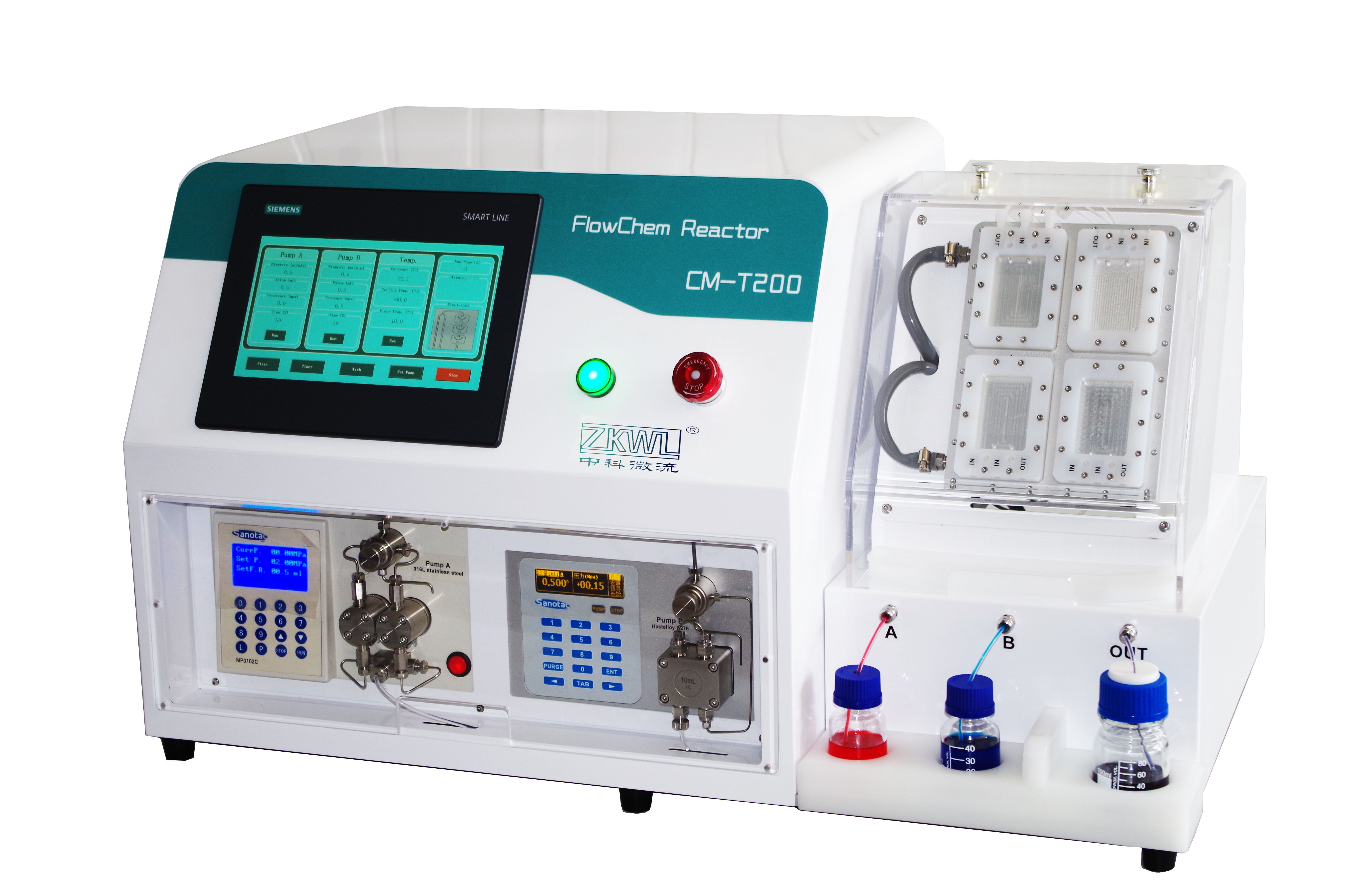

CM-T200 is a continuous flow reactor for laboratory reaction screening and process optimization. The structure design of CM-T200 series glass microchannel reactor takes into account the two major factors of mass transfer and pressure drop. There is no sudden shrinkage and sudden expansion in the process flow channel, ensuring high mass transfer efficiency and small pressure drop. Combined with the heat exchange platform, mass and heat transfer efficiency can be maximized, which is suitable for various challenging chemical substances and process conditions.

Read more Show less

LARYEE TECHNOLOGY CO.,LTD.

  • Country/Region:
    China
  • Founded:
    2006
  • On CPHI since:
    2026
  • Certificates:
    1
  • Employees:
    100 - 249
Company types
Machinery and Equipment Supplier/Manufacturer
Primary activities
Laboratory, Analytical, Biotechnology Equipment
View company profile
Categories
more categories Show less
Specifications
  • Details

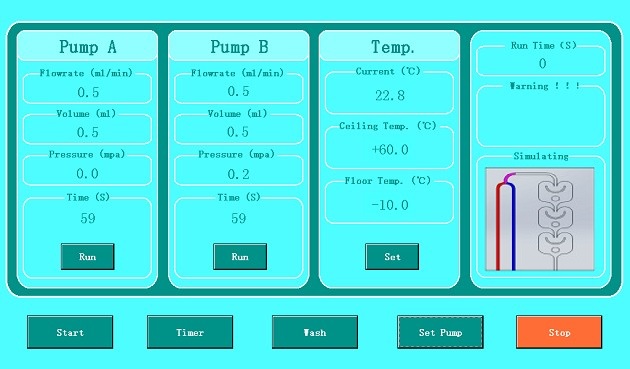

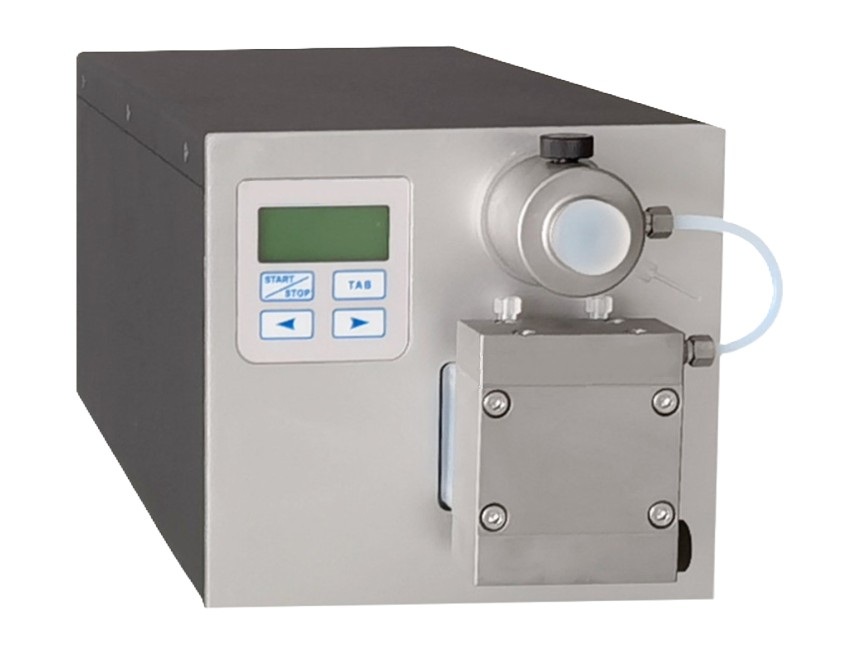

    Parameters of CM-T200 1. Reactor material: high borosilicate float glass 2. Number of chips: 4 types of reaction chips are optional 3. Operating temperature: -25℃-195℃ 4. Operating pressure: 0-20bar 5. Main uses: liquid-liquid mixing and gas-liquid mixing, suitable for most reaction processes. 6. The system mainly consists of four parts: microchannel reactor, feed system, electric control system, temperature control system. 7. Equipped with touch screen, pipelines and panel, safety valve, pressure sensors and temperature sensors, etc
  • Selling Points
    Product Performance; Sustainability; 1. Four kinds of structural design can be selected to meet the needs of different process conditions. 2. Glass material, high temperature resistance, compatible with all reagents（except hot concentrated alkali, molten alkali metal, hot concentrated H3PO4, HF）and strong etchant , also can run stably for a long time.
    3. Visualization, each module can be used for independent direct observation or shooting - the viewing window can be used for direct observation of process conditions or microscope shooting fluids.
    4. Photochemical reaction - The window can use LED or mercury lamp to achieve photocatalytic process (by adding LED or mercury lamp light source module, photocatalytic reaction can be achieved).
     5. Good heat and mass transfer performance, single sheet multiple static mixing unit structure to achieve efficient mixing.
     6. Highly flexible modular design, enabling one-step and multi-step reactions.
  • Model
    CM-T200
  • Supplied from
    China
  • Measured In
    Set
More specifications Fewer specifications
